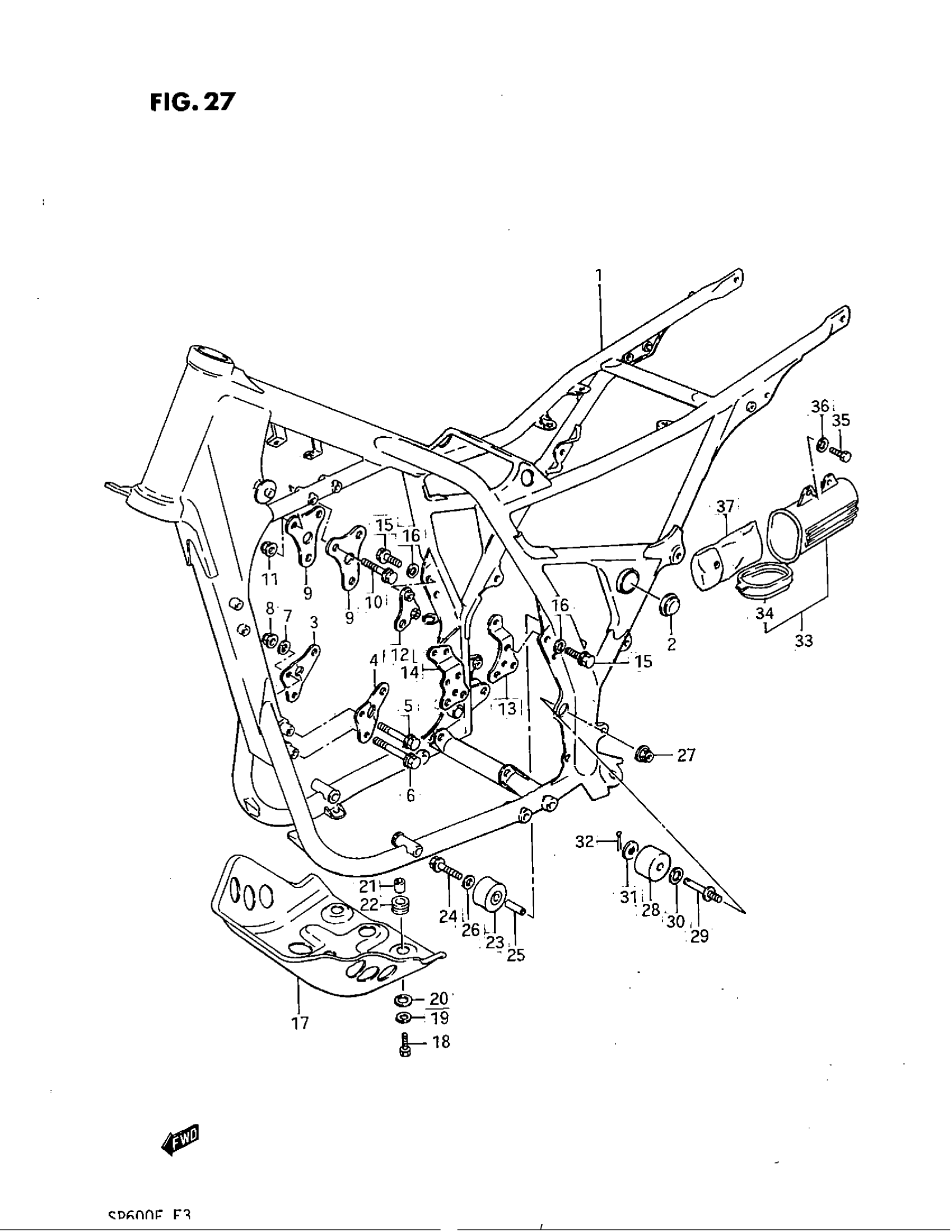

Suzuki SP600 (1985) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-14A00-019

Unavailable

2

CAP, CUSHION LEVER (BLACK)

41499-14A00-019

Unavailable

3

PLATE, FRONT RH (BLACK)

41911-14A00-291

Unavailable

4

PLATE, FRONT LH (BLACK)

41921-14A00-291

Unavailable

5

BOLT, FRONT UPPER

09103-08037

$5.57

6

BOLT, FRONT LOWER

09103-08063

Unavailable

7

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

8

NUT This part replaces 08319-21088.

08319-2108A

$2.12

9

PLATE, UPPER (BLACK)

41991-14A00-291

Unavailable

10

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

11

NUT This part replaces 08319-31088.

08319-3108A

$2.32

12

PLATE, REAR RH (BLACK)

41940-14A00-291

Unavailable

13

PLATE, REAR LH (BLACK) | OTHER THAN CALIFORNIA

41950-14A00-291

Unavailable

14

PLATE, REAR LH (BLACK) | CALIFORNIA ONLY This part replaces 41950-14A10-291.

41950-14A10-019

Unavailable

15

BOLT, REAR LH This part replaces 01517-08208.

01550-08207

$2.69

16

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

17

PROTECTOR, ENGINE This part replaces 42511-14A00.

42511-12D10

Unavailable

18

BOLT This part replaces 01107-06208.

01500-06207

$2.28

19

LOCK WASHER This part replaces 08321-31068.

08321-01067

$2.13

20

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

21

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

22

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

23

ROLLER, CHAIN CONTROL UPPER This part replaces 43910-14500.

43910-01B00

Unavailable

24

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

25

SPACER This part replaces 09180-08119.

09180-08156

$6.70

26

WASHER, GEAR SHAFT This part replaces 08211-08161.

09181-08167

$1.96

27

NUT This part replaces 08319-31108.

08319-31107

$2.73

28

ROLLER, CHAIN LOWER

43911-14200

Unavailable

29

BOLT

43915-14A00

Unavailable

30

WASHER This part replaces 08322-21128.

08322-01127

$1.84

31

WASHER This part replaces 49317-14A00.

49317-15A00

Unavailable

32

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

33

HOLDER, TOOL | Includes Item(s) 34

41550-37210

Unavailable

34

CAP

41552-37210

$9.78

35

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

36

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

37

TOOL ASSY This part replaces 09800-00292.

09800-21023

Unavailable
