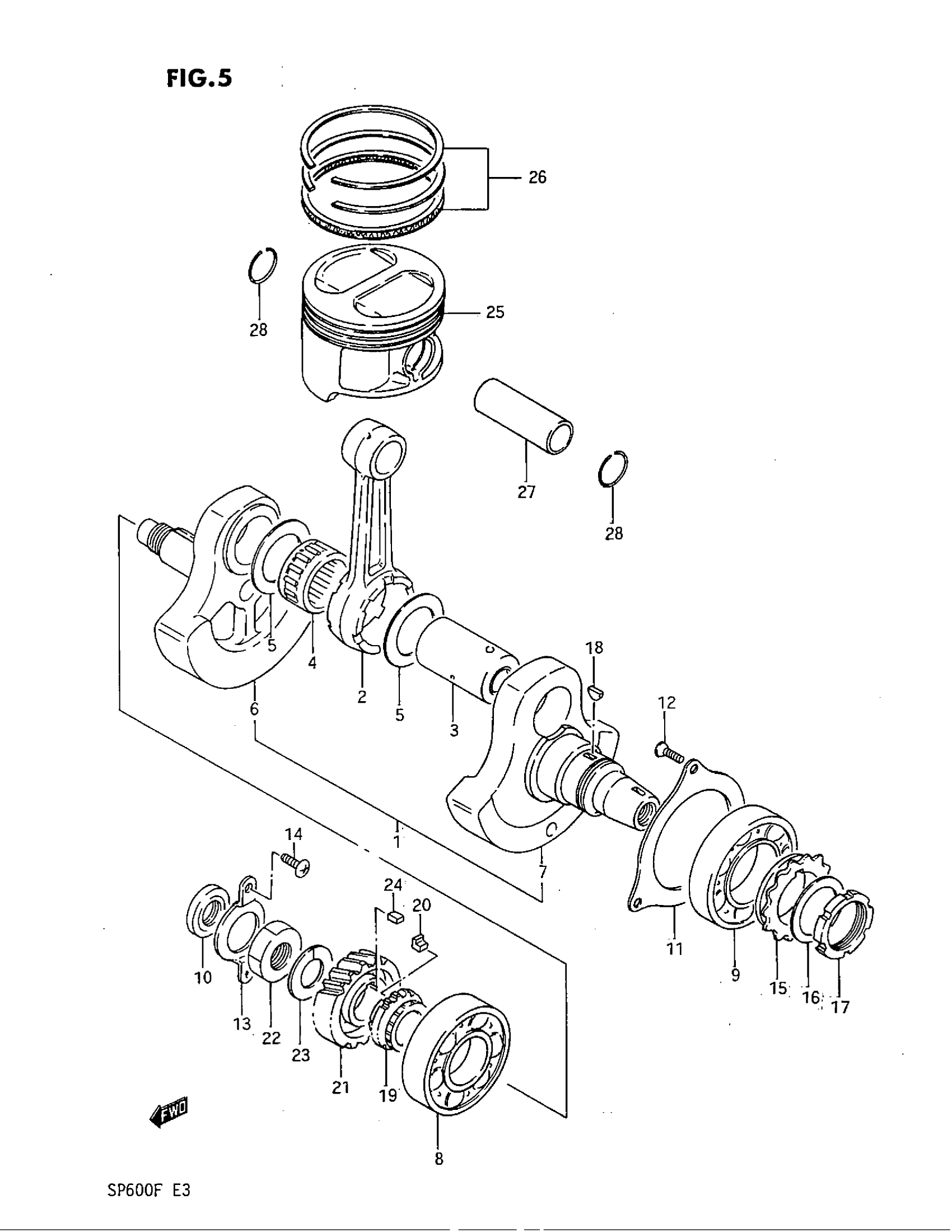

Suzuki SP600 (1985) CRANKSHAFT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 12200-14A02.

12200-14A03

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 12161-14A10.

12161-14A12

Unavailable

3

PIN

12210-14A01

Unavailable

4

BEARING (37X47X25) This part replaces 09263-37002.

09263-37004-0B0

$55.27

5

WASHER

09160-37006

$10.58

6

CRANKSHAFT, RH

12221-14A01

Unavailable

7

CRANKSHAFT, LH

12261-14A02

Unavailable

8

BEARING, RH (35X80X21)

09262-35009

$87.52

9

BEARING, LH This part replaces 09262-45003.

09262-45011

$88.02

10

OIL SEAL (16X30X6)

09282-16002

$9.60

11

PLATE, LH

12541-37400

Unavailable

12

SCREW This part replaces 02122-06168.

02122-06167

$1.49

13

PLATE, RH

12548-37400

$6.37

14

SCREW This part replaces 02112-05088.

02112-05087

$1.49

15

SPROCKET, BALANCER DRIVE | NT:31

12662-14A10

Unavailable

16

WASHER

09164-40003

Unavailable

17

NUT This part replaces 12664-37400.

12664-44B00

Unavailable

18

KEY

08341-31039

$1.89

19

SPROCKET, DRIVE (NT:21)

12731-37400

Unavailable

20

KEY

12749-32400

Unavailable

21

GEAR, PRIMARY DRIVE (NT:29)

21111-14A00

Unavailable

22

NUT This part replaces 09140-20008.

09140-20013

$4.26

23

LOCK WASHER

09164-20003

$3.85

24

KEY, GEAR

09421-07002

Unavailable

25

NO DESCRIPTION AVAILABLE This part replaces 12111-14A01.

12111-15A00

Unavailable

25

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-14A01-050.

12103-15810-050

Unavailable

25

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-14A01-100.

12103-15810-100

Unavailable

26

RING SET, PISTON This part replaces 12140-14A31.

12140-14A32

$45.82

26

RING SET, PISTON (OS:0.5) | OPT

12140-14A31-050

Unavailable

26

RING SET, PISTON (OS:1.0) | OPT

12140-14A31-100

Unavailable

27

PIN

12151-14A01

$23.40

28

CIRCLIP

09381-23003

$1.49
