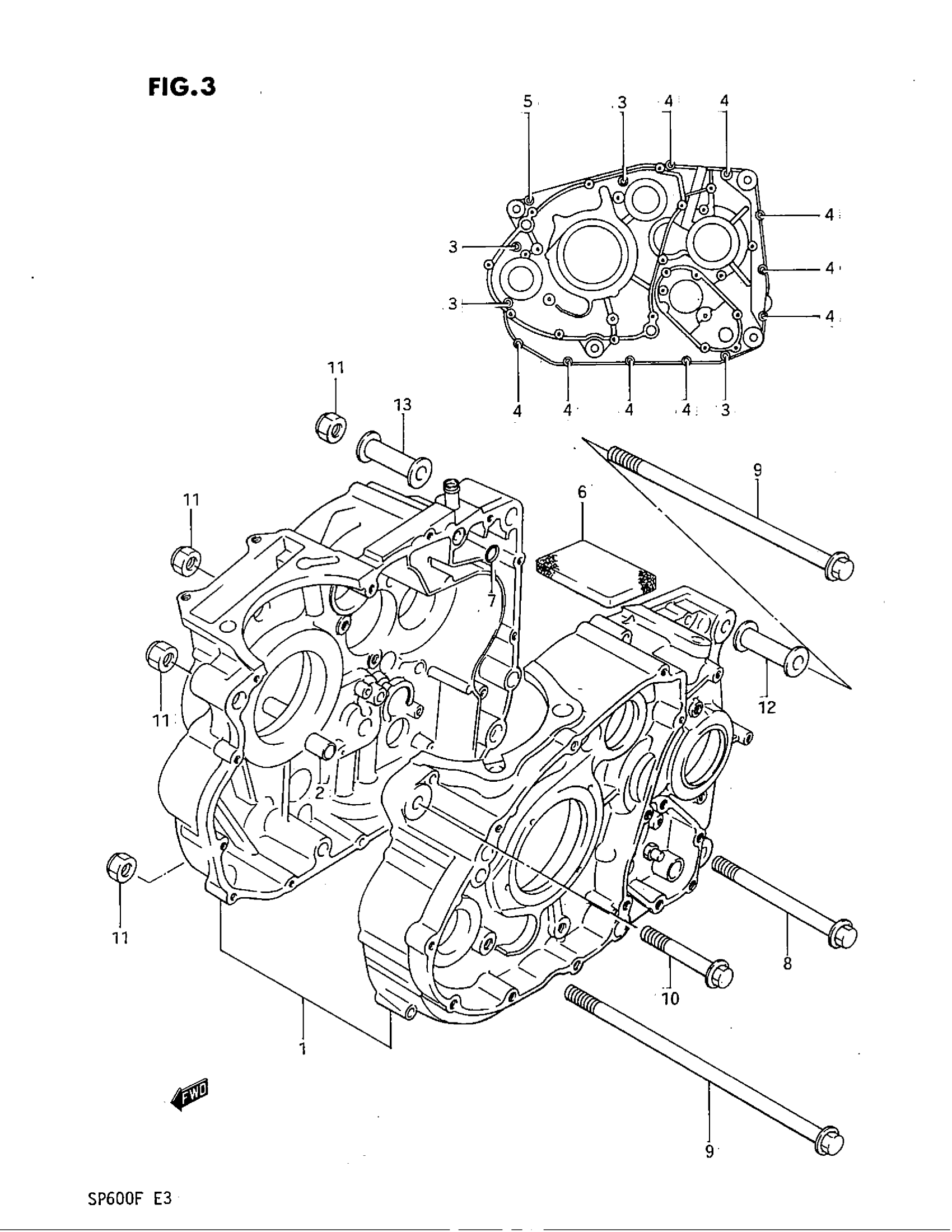

Suzuki SP600 (1985) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 5

11300-14A01

$302.78

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT This part replaces 01547-06605.

01547-0660B

$3.18

4

BOLT This part replaces 01547-06404.

01547-0640B

$2.75

5

BOLT This part replaces 01547-06304.

01547-06307

$2.03

6

SEPARATOR, OIL BREATHER This part replaces 11328-14A00.

11328-14A03

Unavailable

7

.O RING (D:1.9,ID:8.6) This part replaces 09280-09004.

09280-09005

$3.70

8

BOLT (10X125) This part replaces 09103-10062.

09103-10141

$8.43

9

BOLT (10X225) This part replaces 09103-10093.

09103-10205

$19.52

10

BOLT (10X80) This part replaces 09103-10098.

09103-10240

$6.28

11

NUT

09159-10047

$9.41

12

SPACER (L:55)

11610-14A00

Unavailable

13

SPACER (L:60)

11610-14A10

Unavailable
