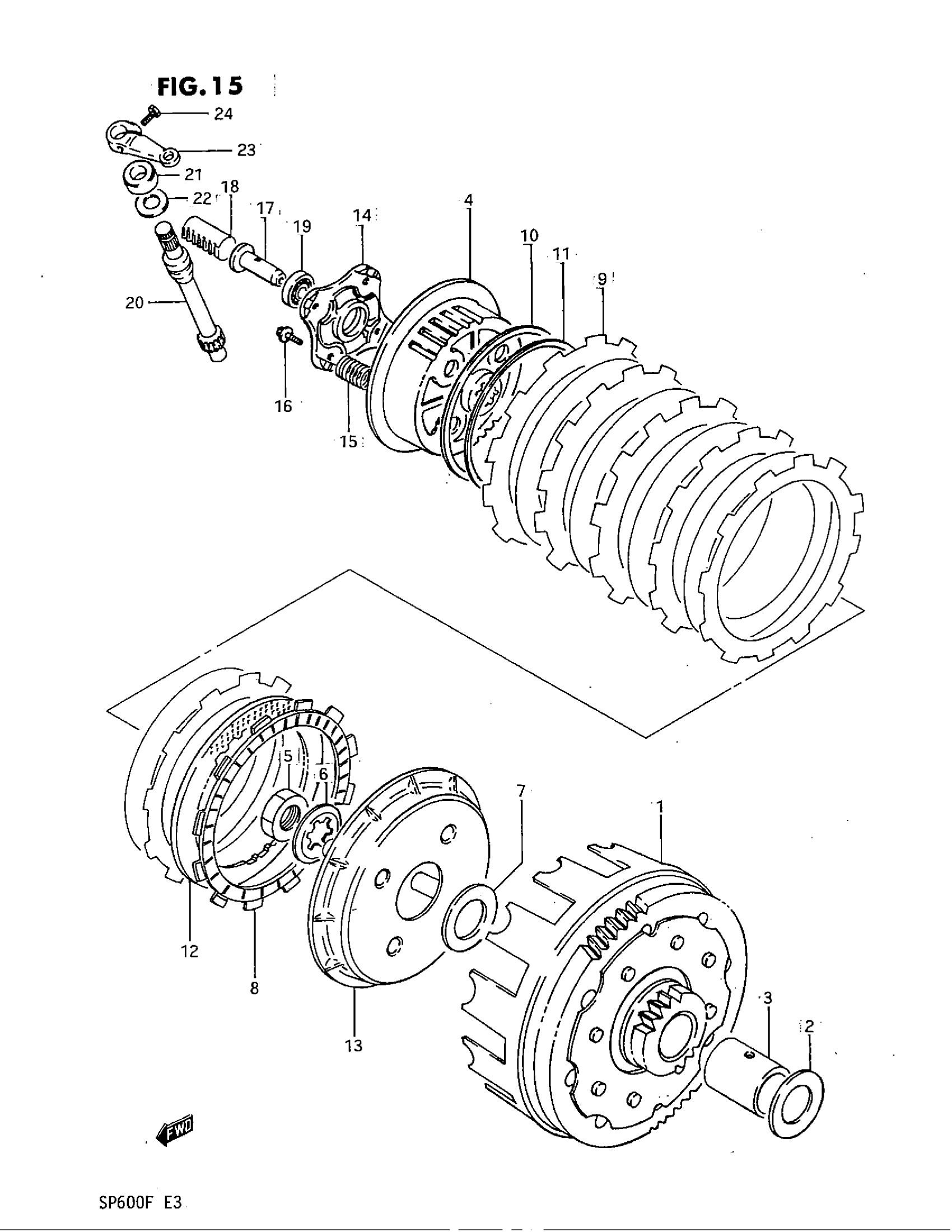

Suzuki SP600 (1985) CLUTCH Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | NT:67/18 This part replaces 21200-14A01.

21200-14A02

Unavailable

2

WASHER

08211-22383

$3.93

3

SPACER

09180-22023

$25.12

4

HUB, SLEEVE

21411-37401

$121.77

5

NUT

09140-22003

Unavailable

6

LOCK WASHER

09167-22005

$2.11

7

WASHER

08211-22383

$3.93

8

PLATE, DRIVE (ID:116)

21441-37400

$18.13

9

PLATE, CLUTCH DRIVE NO.2 This part replaces 21442-37400.

21442-37401

$18.67

10

SEAT, WAVE WASHER (T:1.4)

21471-37400

$9.78

11

WAVE WASHER

09164-00004

$11.35

12

PLATE, DRIVEN

21451-14A00

$9.52

13

DISK, PRESSURE

21462-37400

$57.67

14

PLATE, RELEASE

21465-37400

$20.45

15

SPRING

09440-20013

$3.57

16

BOLT This part replaces 01517-06208.

01550-06207

$2.30

17

PIECE, CLUTCH PUSH

23121-14A00

Unavailable

18

RACK, RELEASE

23165-37400

Unavailable

19

BEARING (12X28X8) This part replaces 08110-60010.

09262-12001

$18.47

20

PINION, RELEASE

23261-16501

Unavailable

21

OIL SEAL (12X22X9)

09285-12006

$6.32

22

WASHER (14.5X22X1) This part replaces 09160-14003.

09160-14054

$2.07

23

ARM, RELEASE

23271-45400

Unavailable

24

BOLT This part replaces 01107-06208.

01500-06207

$2.28
