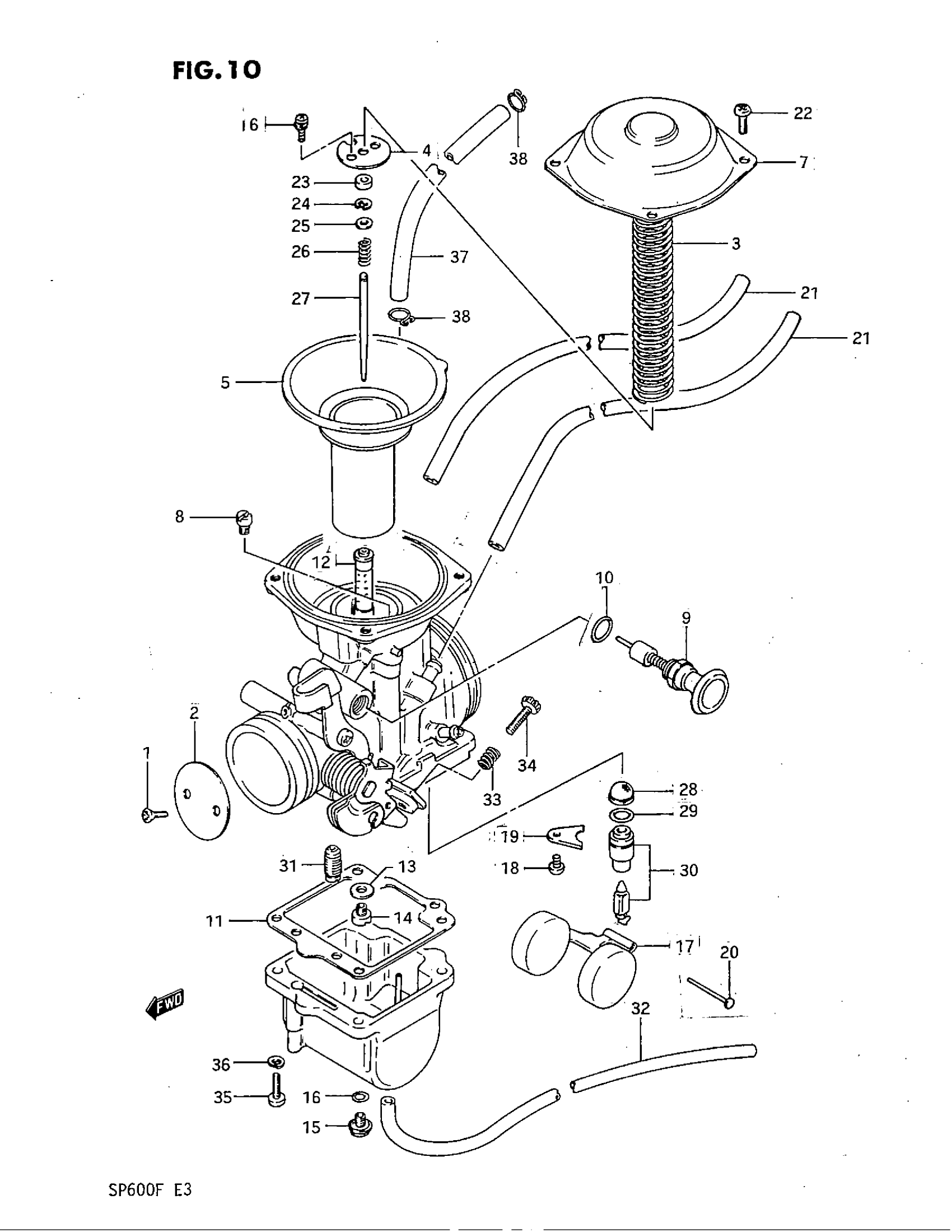

Suzuki SP600 (1985) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | OTHER THAN CALIFORNIA

13200-14A10

Unavailable

(CA)CARBURETOR ASSY | CALIFORNIA ONLY; Includes Item(s) 1 - 38

13200-14A20

Unavailable

1

SCREW

13604-44080

$2.92

2

VALVE, THROTTLE (125)

13551-37400

Unavailable

3

SPRING

13503-14A10

Unavailable

4

PLATE

13389-37400

$7.08

5

DIAPHRAGM ASSY This part replaces 13500-14A10.

13500-24B41

$231.13

6

SCREW This part replaces 13601-03078.

02112-0306B

$1.59

7

COVER

13502-37400

Unavailable

8

M/J 105 (N10222 This part replaces 09491-21012.

09491-21023

$11.83

9

PLUNGER ASSY

13411-37400

Unavailable

10

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

11

.GASKET This part replaces 13251-37100.

13251-37101

$11.25

12

JET, NEEDLE (X-7)

09494-00273

Unavailable

13

WASHER

13382-03110

$2.80

14

JET, MAIN (142.5)

09491-28015

Unavailable

15

PLUG, DRAIN

13247-44080

$7.97

16

O RING, DRAIN

13246-44080

$2.80

17

FLOAT

13250-37400

$28.97

18

SCREW This part replaces 02112-04066.

02112-0406B

$1.55

19

PLATE

13373-39110

$6.64

20

PIN, FLOAT

13254-92311

$2.07

21

HOSE,5X10X600 | L:400->250 This part replaces 13683-11420.

44421-13ER0

$10.06

22

SCREW, THROTTLE This part replaces 02112-05106.

02112-0510A

$1.49

23

RING

13387-44030

$5.83

24

E RING

13394-31210

$4.64

25

WASHER

13382-44030

$3.71

26

SPRING

13388-44030

$8.12

27

NEEDLE, JET (5C44)

13383-37400

Unavailable

28

FILTER This part replaces 13376-65010.

13376-19F00

$10.28

29

O RING This part replaces 66263-99050.

13374-35C00

$5.99

30

VALVE ASSY, NEEDLE This part replaces 13370-37400.

13370-24C80

$89.23

31

JET, PILOT (47.5)

09492-47013

$11.38

32

HOSE (3.5X6.5X600->400) | OTHER THAN CALIFORNIA

13683-45070

$11.80

33

SPRING This part replaces 13271-37100.

13271-93011

$5.32

34

ADJUSTER This part replaces 13267-37100.

13267-25D00

$14.20

35

.SCREW This part replaces 02112-05166.

02112-0516A

$1.49

36

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

37

(CA)HOSE (5X9X430->325) | CALIFORNIA ONLY

13683-05A40

Unavailable

38

CLIP | CALIFORNIA ONLY This part replaces 13671-05A30.

09401-08410

$1.84
