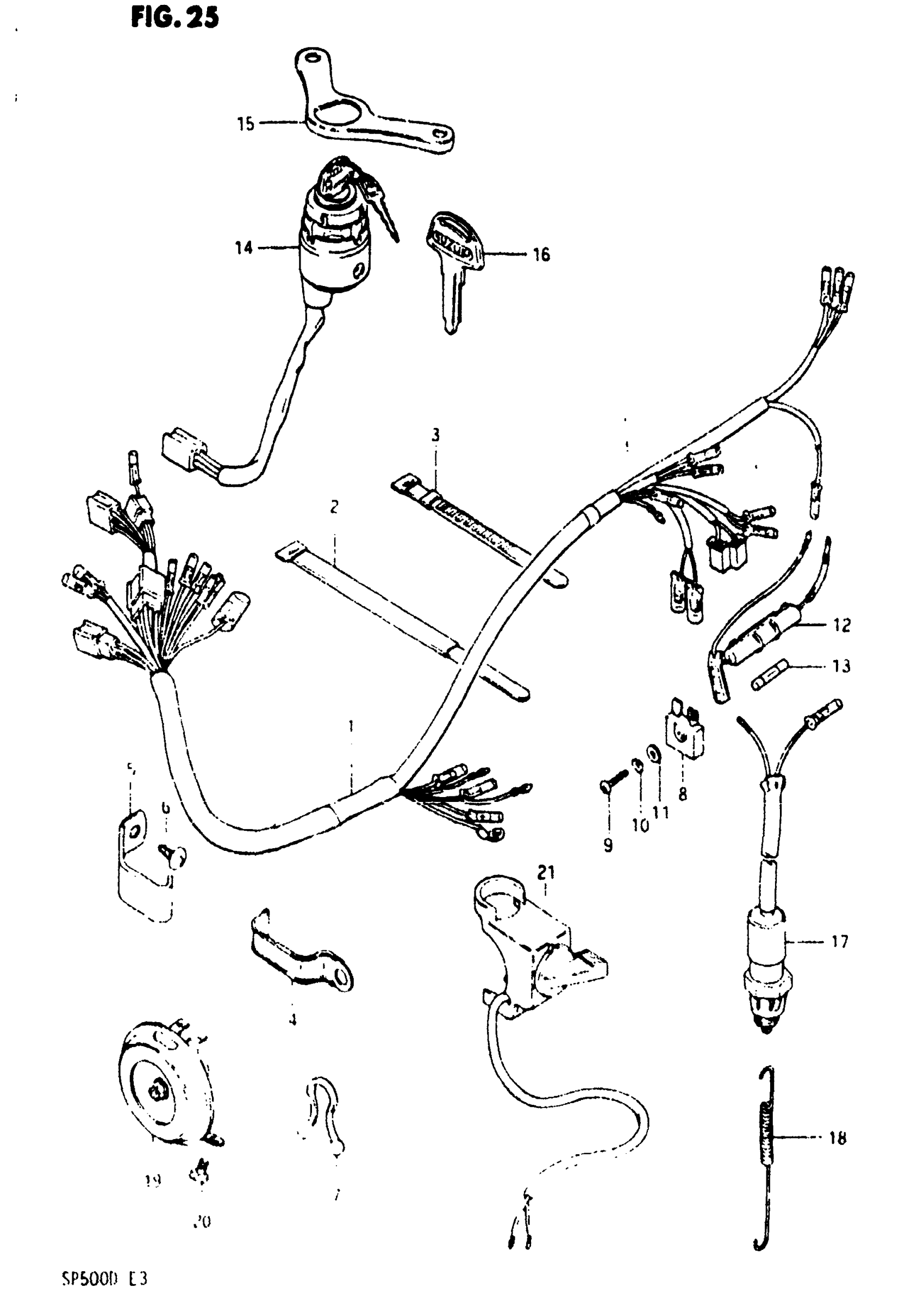

Suzuki SP500 (1983) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS

36610-37430

Unavailable

2

CLAMP This part replaces 09407-11301.

09407-18302

$2.28

2

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

3

CLAMP

09407-12402

$3.04

4

CLAMP This part replaces 09403-09307.

09403-09328

$1.77

5

CLAMP

36651-37420

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 03111-04086.

03112-04089

Unavailable

7

CLIP

09408-00020

Unavailable

8

DIODE This part replaces 32800-19063.

32800-16A00

$23.07

9

SCREW This part replaces 02112-05208.

02112-05207

$1.97

10

LOCK WASHER

09163-05001

Unavailable

11

WASHER This part replaces 08322-21058.

08322-01057

$2.13

12

FUSE CASE ASSY | Includes Item(s) 13 This part replaces 36740-15010.

36740-15011

$9.38

13

FUSE (15A)

09481-15001

$2.06

14

SWITCH ASSY, IGNITION

37110-25319

$97.62

15

BRACKET

37115-37400

Unavailable

16

KEY, BLANK | OPT This part replaces 37145-19710.

37146-49300

$16.01

17

SWITCH, REAR BRAKE LAMP This part replaces 37740-04572.

37740-48071

$19.18

18

SPRING

09443-06016

$3.30

19

HORN ASSY

38500-32472

Unavailable

20

BOLT This part replaces 01107-06128.

01500-06127

$1.97

21

SWITCH ASSY, ENGINE STOP

37830-38200

Unavailable
