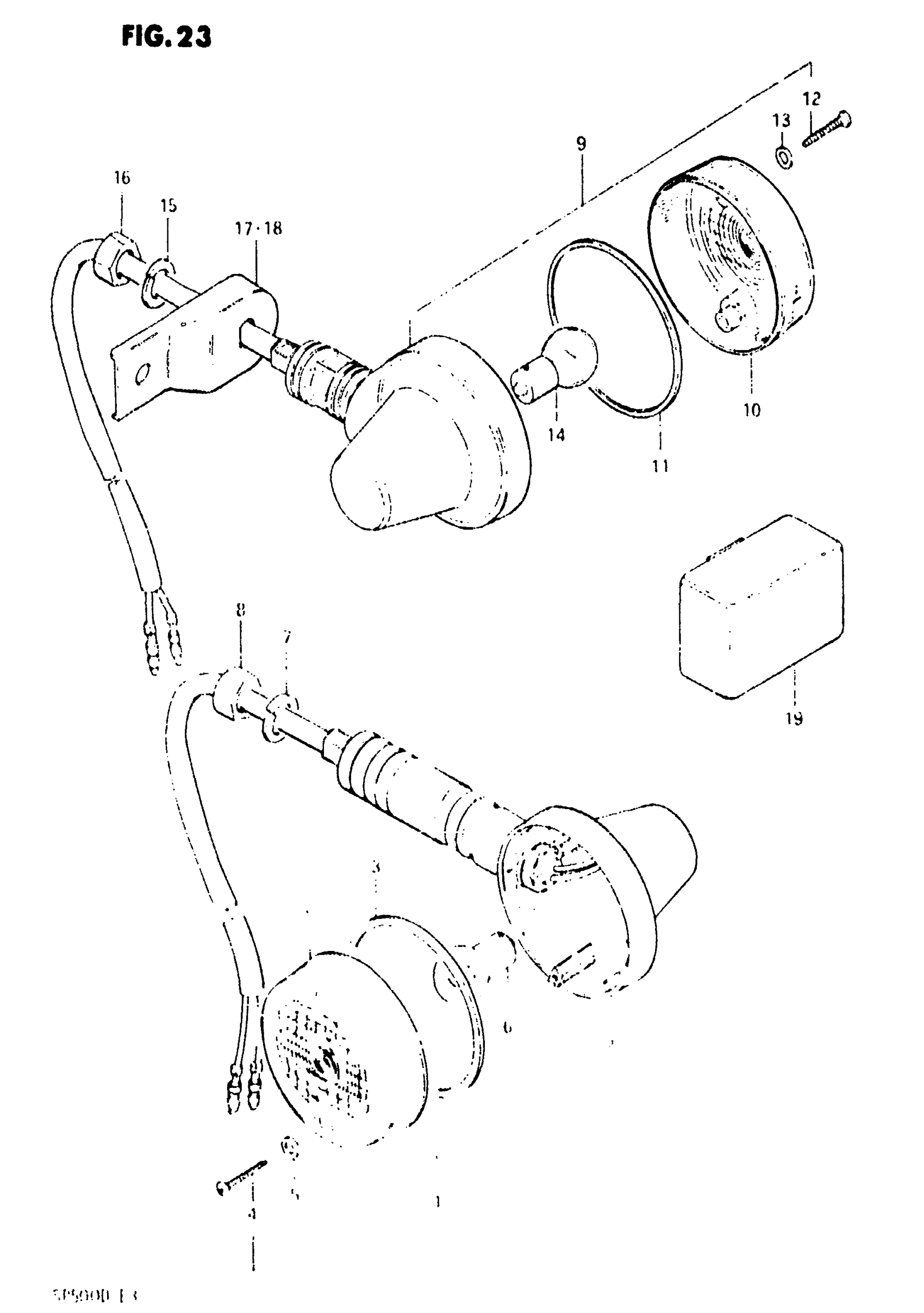

Suzuki SP500 (1983) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP, FRONT TURN SIGNAL | Includes Item(s) 2 - 6

35601-37430

Unavailable

2

LENS,FR TRNSIG This part replaces 35612-48530.

35612-01A70

$9.33

3

GASKET

35613-28620

$4.55

4

SCREW This part replaces 03211-04258.

03211-0425B

$2.70

5

GASKET

35627-43010

$2.28

6

BULB (6V,21CP)

09471-06011

Unavailable

7

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

8

NUT, FIXED DRIVE FACE This part replaces 08310-12128.

09140-12039

$3.05

9

LAMP, REAR TURN SIGNAL | Includes Item(s) 10 - 14

35603-37430

Unavailable

10

LENS,FR TRNSIG This part replaces 35612-48530.

35612-01A70

$9.33

11

GASKET

35613-28620

$4.55

12

SCREW This part replaces 03211-04258.

03211-0425B

$2.70

13

GASKET

35627-43010

$2.28

14

BULB (6V,21CP)

09471-06011

Unavailable

15

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

16

NUT, FIXED DRIVE FACE This part replaces 08310-12128.

09140-12039

$3.05

17

BRACKET, REAR RH

35620-37400

Unavailable

18

BRACKET, REAR LH

35640-37400

Unavailable

19

RELAY ASSY,TRN This part replaces 38610-48600.

38610-05X50

Unavailable
