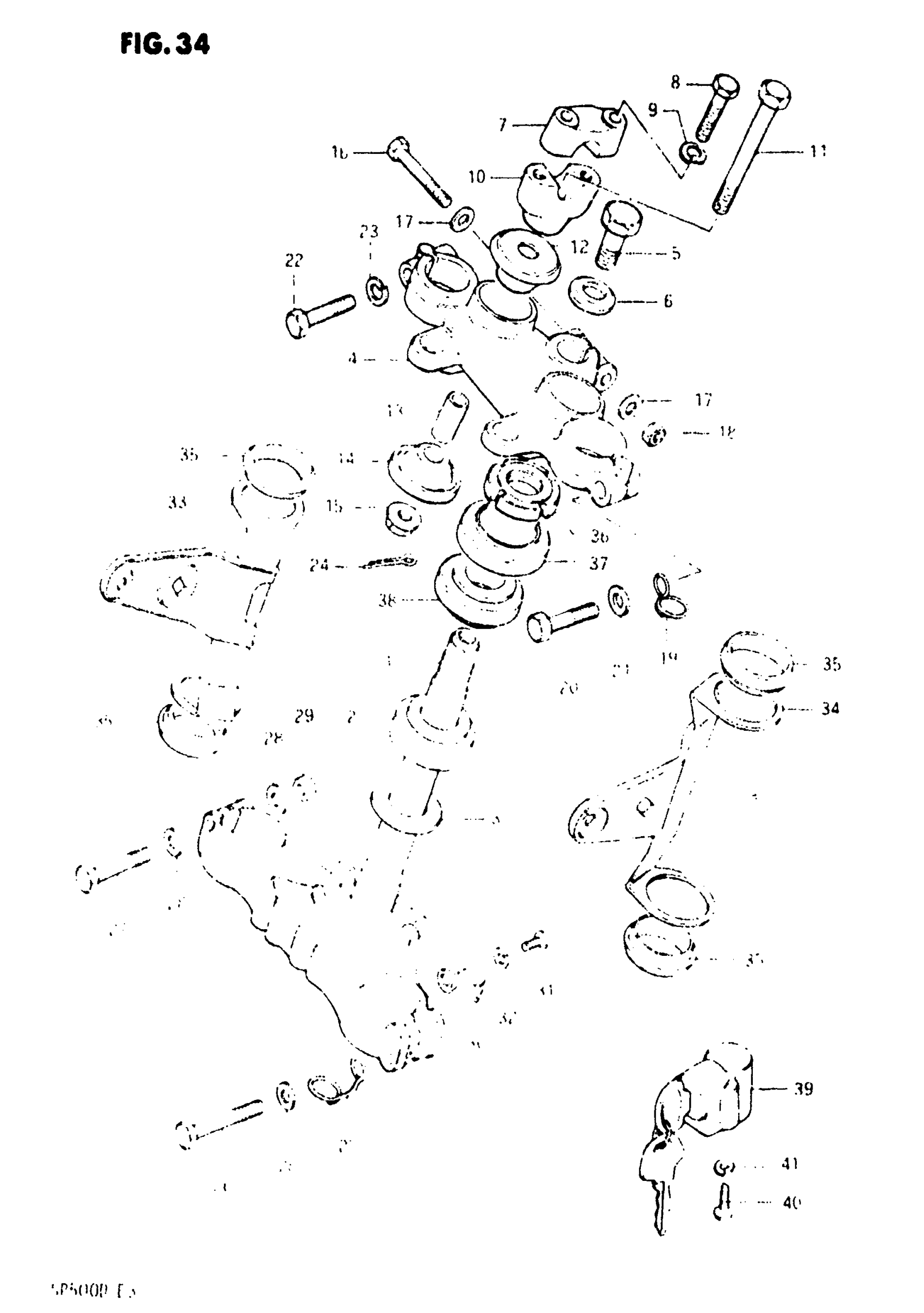

Suzuki SP500 (1983) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | CHAMPAGNE GOLD; Includes Item(s) 2

51410-37220-08C

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

3

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

4

STEM HEAD, STEERING | CHAMPAGNE GOLD

51311-37410-08C

Unavailable

5

BOLT

51351-30540

Unavailable

6

WASHER

51356-41310

Unavailable

7

HOLDER, HANDLE UPPER | CHAMPAGNE GOLD

56211-40300-08C

Unavailable

8

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

9

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

10

HOLDER, HANDLE LOWER | CHAMPAGNE GOLD

56221-37410-08C

Unavailable

11

BOLT

51321-37410

Unavailable

12

DAMPER, UPPER

56241-37410

Unavailable

13

SPACER

09180-10065

$5.28

14

DAMPER, LOWER

56242-37410

Unavailable

15

NUT This part replaces 08319-31108.

08319-31107

$2.73

16

BOLT This part replaces 01107-08558.

01500-08557

$3.16

17

WASHER This part replaces 08322-21088.

08322-01087

$2.13

18

NUT This part replaces 08310-12088.

08310-00087

$2.13

19

CLIP

51455-37410

Unavailable

20

BOLT This part replaces 01107-10408.

01500-10407

$3.55

21

WASHER This part replaces 08322-11108.

08322-01107

$2.15

22

BOLT This part replaces 51352-37446.

01104-10388

$2.72

23

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

24

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

25

CLIP This part replaces 51455-32400.

51455-29330

Unavailable

26

BOLT This part replaces 01107-08608.

01500-0860B

$3.49

27

BOLT This part replaces 01107-08558.

01500-08557

$3.16

28

WASHER This part replaces 08322-21088.

08322-01087

$2.13

29

NUT This part replaces 08310-12088.

08310-00087

$2.13

30

CLIP

51453-05110

Unavailable

31

SCREW This part replaces 02112-06108.

02112-06107

$1.49

32

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

33

BRACKET, HEADLAMP RH | BLACK

51530-37410-291

Unavailable

34

BRACKET, HEADLAMP LH | BLACK

51540-37410-291

Unavailable

35

GASKET

51553-41410

Unavailable

36

NUT, STEERING STEM

51631-28000

$17.37

37

SEAL, STEERING DUST This part replaces 51643-49001.

51643-49002

$12.32

38

BEARING, UPPER

09265-25008

Unavailable

39

LOCK ASSY, STEERING

51910-25311

$40.33

40

SCREW This part replaces 02112-05128.

02112-05127

$1.97

41

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84
