1983 Suzuki SP500 Stand - Rear Brake Diagram

← All diagrams

Find the part on the Stand - Rear Brake diagram for your 1983 Suzuki SP500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

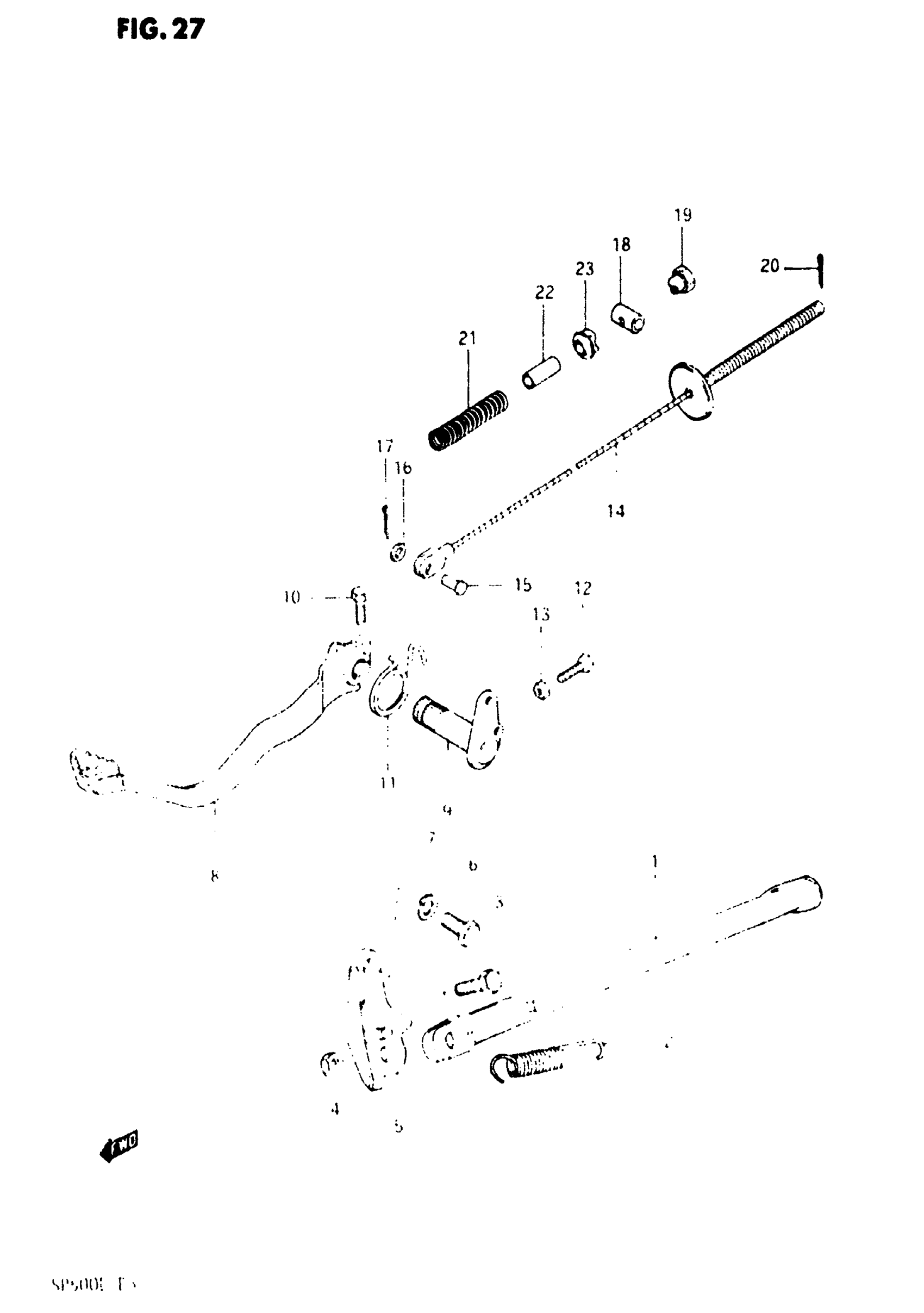

1983 Suzuki SP500 Stand - Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 42310-32401.

42310-48700-019

1
Out of stock

2

SPRING

09443-17007

1
Out of stock

3

BOLT (10X30)

09100-10067

1
Out of stock

4

NUT This part replaces 08310-22108.

08310-00107

1
Out of stock

5

BRACKET, PROP STAND

42330-40400

1
Out of stock

6

BOLT

09100-10118

2
Out of stock

7

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

8

PEDAL, BRAKE

43110-37401

1
Out of stock

9

ARM, PEDAL

43120-37400

1
Out of stock

10

BOLT This part replaces 01107-06208.

01500-06207

1
Out of stock

11

NO DESCRIPTION AVAILABLE This part replaces 09448-25005.

09448-25005-XC0

1
Out of stock

12

BOLT (6x27)

09100-06009

1
Out of stock

13

.NUT This part replaces 08310-11068.

08310-00067

1
Out of stock

14

CABLE, REAR BRAKE

58510-40400

1
Out of stock

15

PIN

09200-05001

1
Out of stock

16

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

18

PIN

43380-37200

1
Out of stock

19

.NUT This part replaces 09150-06009.

09150-06010

1
Out of stock

20

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

21

SPRING

09440-11012

1
Out of stock

22

HOSE,5X10X600 This part replaces 61155-79000.

44421-13ER0

1
Out of stock

23

CUSHION, PIN

43370-37300

1
Out of stock
