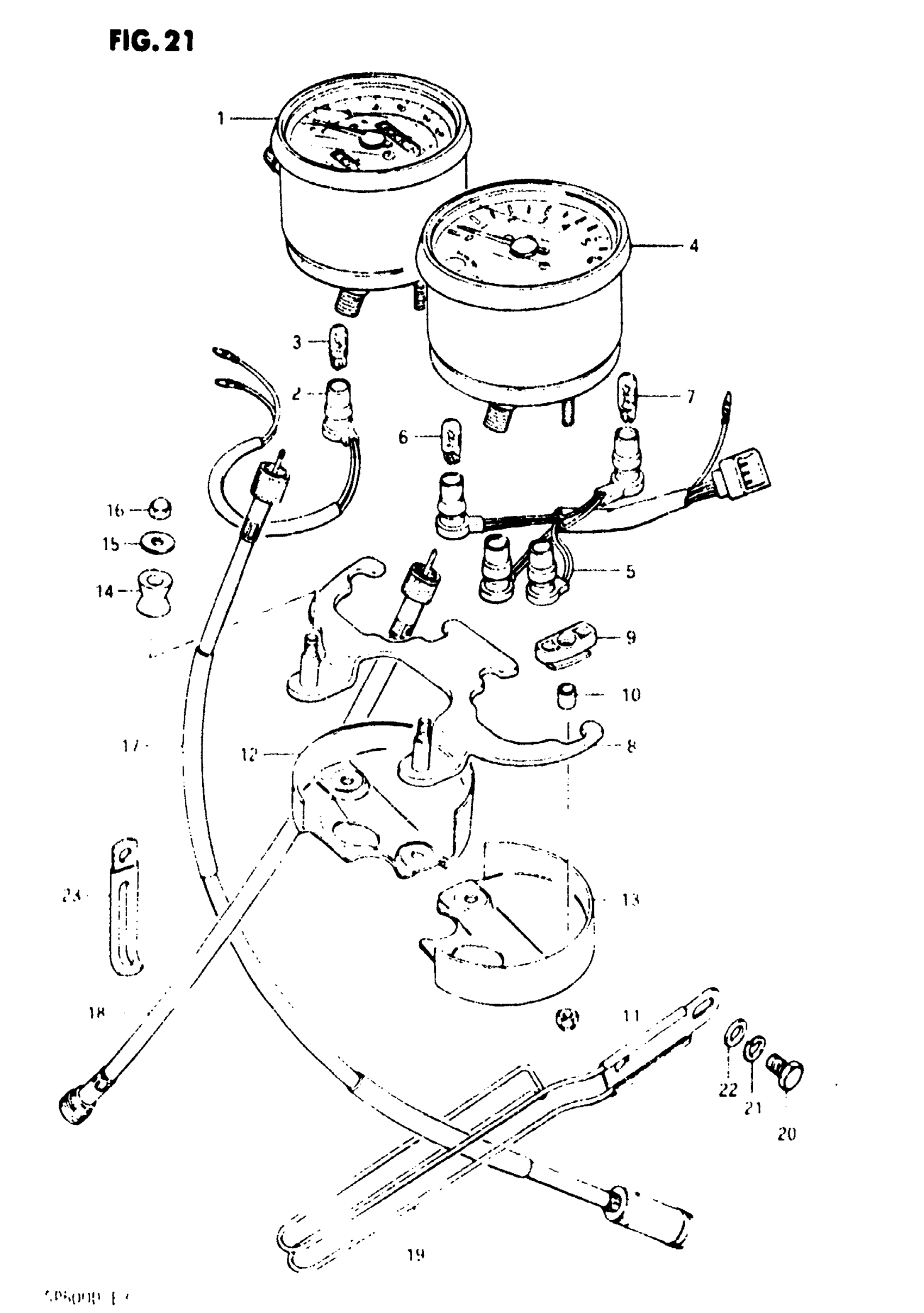

Suzuki SP500 (1983) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER | MILE & KILO SCALE

34110-37410

Unavailable

2

SOCKET

34173-37410

Unavailable

3

BULB (6V, 3W)

09471-06053

$2.88

4

TACHOMETER This part replaces 34210-37410.

34210-32411

Unavailable

5

SOCKET

34273-37410

Unavailable

6

BULB (6V, 1.7W)

09471-06052

$4.17

7

BULB (6V,3W)

09471-06053

$2.88

8

BRACKET

34950-32400

Unavailable

9

CUSHION

34189-32400

Unavailable

10

SPACER

34972-44022

Unavailable

11

NUT This part replaces 08313-11057.

08313-1005A

$1.93

12

UNDER PLATE, SPEEDOMETER

34193-32421

Unavailable

13

UNDER PLATE, TACHOMETER

34293-32401

Unavailable

14

CUSHION

34956-15100

$3.71

15

WASHER This part replaces 09160-06007.

09160-06084

$1.78

16

NUT, LICENSE HOLDER This part replaces 08313-11068.

08313-10067

$1.84

17

CABLE ASSY,SPEE This part replaces 34910-32410.

34910-32411

Unavailable

18

CABLE ASSY, TACHOMETER

34940-37410

Unavailable

19

GUIDE,CABLE This part replaces 58620-30502.

34930-05203

$18.80

20

BOLT This part replaces 01107-08128.

01500-08127

$2.62

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

WASHER This part replaces 08322-11088.

08322-01087

$2.13

23

CLAMP This part replaces 09404-06401.

09404-06039

$1.74
