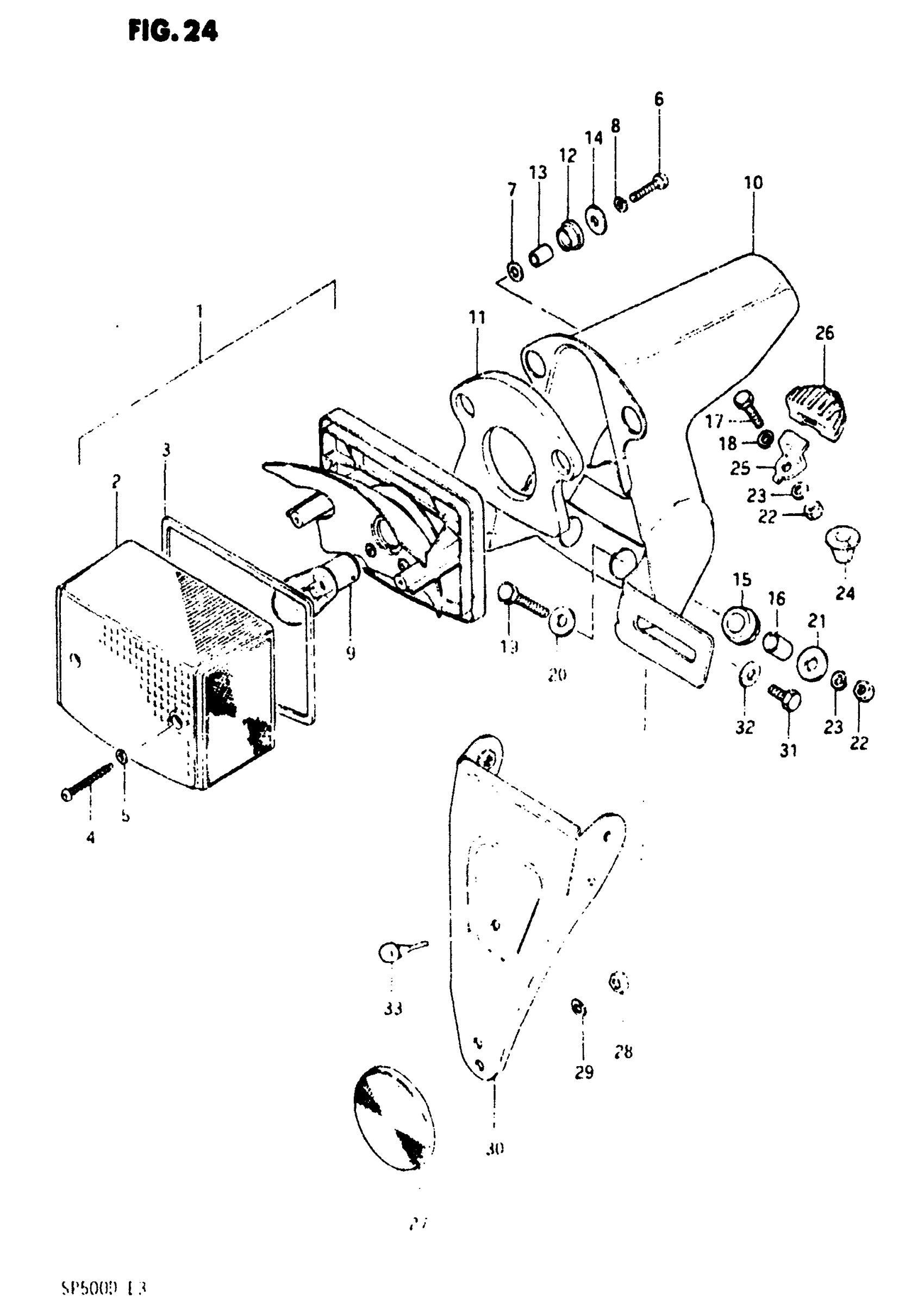

Suzuki SP500 (1983) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP UNIT,RR CO | Includes Item(s) 2 - 9 This part replaces 35720-37430.

35720-37430-999

Unavailable

2

LENS

35712-48510

$65.02

3

GASKET

35713-48510

$6.17

4

SCREW This part replaces 03211-04308.

03211-04306

$1.78

5

GASKET

35627-43010

$2.28

6

SCREW This part replaces 02112-05258.

02112-05257

$1.49

7

WASHER This part replaces 08322-21058.

08322-01057

$2.13

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

9

BULB (6V,32/3CP)

09471-06030

Unavailable

10

BRACKET ASSY | Includes Item(s) 11 - 16

35730-37430

Unavailable

11

CUSHION

35765-37410

Unavailable

12

CUSHION

35764-37410

Unavailable

13

SPACER

35766-36510

Unavailable

14

WASHER

35727-37410

Unavailable

15

CUSHION

35765-32410

Unavailable

16

SPACER

35766-37120

Unavailable

17

BOLT This part replaces 01107-06208.

01500-06207

$2.28

18

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

19

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48

20

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

21

WASHER

09169-06016

$1.65

22

.NUT This part replaces 08310-11068.

08310-00067

$2.13

23

WASHER This part replaces 08322-21068.

08322-01067

$2.13

24

GROMMET

09308-07004

$2.36

25

PLATE

35793-37201

Unavailable

26

CUSHION

35717-37200

Unavailable

27

REFLEX REFLECTOR, REAR

35970-30910

$44.56

28

NUT This part replaces 08310-11058.

08310-00057

$1.84

29

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

30

BRACKET

35974-37430

Unavailable

31

BOLT This part replaces 01107-06108.

01500-06107

$2.06

32

WASHER This part replaces 08322-21068.

08322-01067

$2.13

33

CUSHION

09321-05005

Unavailable
