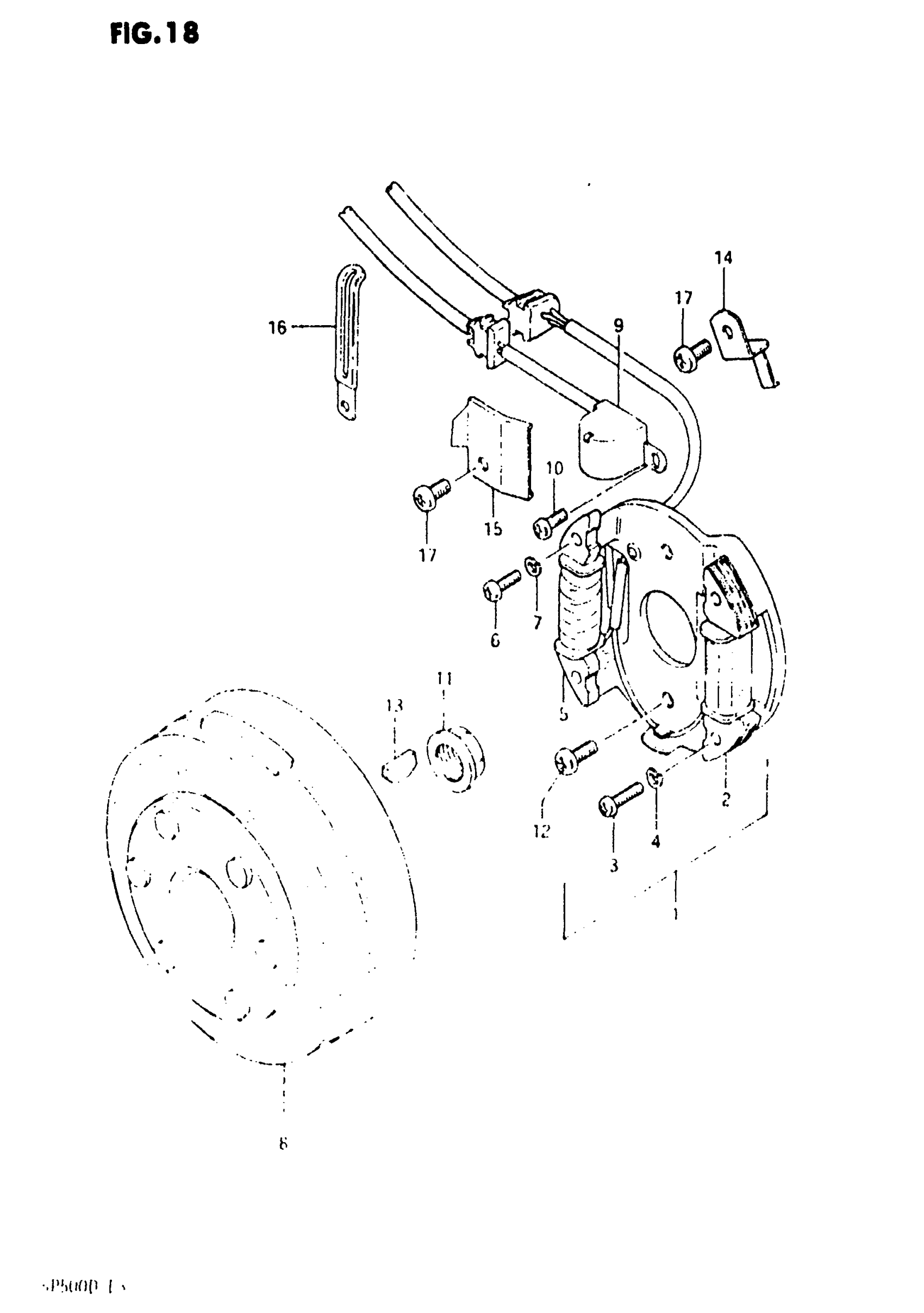

Suzuki SP500 (1983) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | Includes Item(s) 2 - 7

32101-37420

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 32120-37420.

32120-37440

Unavailable

3

SCREW This part replaces 02112-05358.

02112-05357

$1.49

4

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

5

COIL, PRIMARY

32140-37410

Unavailable

6

SCREW This part replaces 02112-05168.

02112-05167

$1.97

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

8

FLYWHEEL

32102-37420

Unavailable

9

COIL, PICKUP

32160-37410

$123.15

10

SCREW

09139-05014

Unavailable

11

NUT

31792-49200

$9.69

12

SCREW This part replaces 02112-06168.

02112-06167

$1.49

13

KEY This part replaces 08341-31049.

09420-04008

$3.42

14

CLAMP (A)

32371-37400

Unavailable

15

CLAMP (B)

32371-37410

Unavailable

16

CLAMP This part replaces 09404-06412.

09404-06039

$1.74

17

SCREW This part replaces 02112-06108.

02112-06107

$1.49
