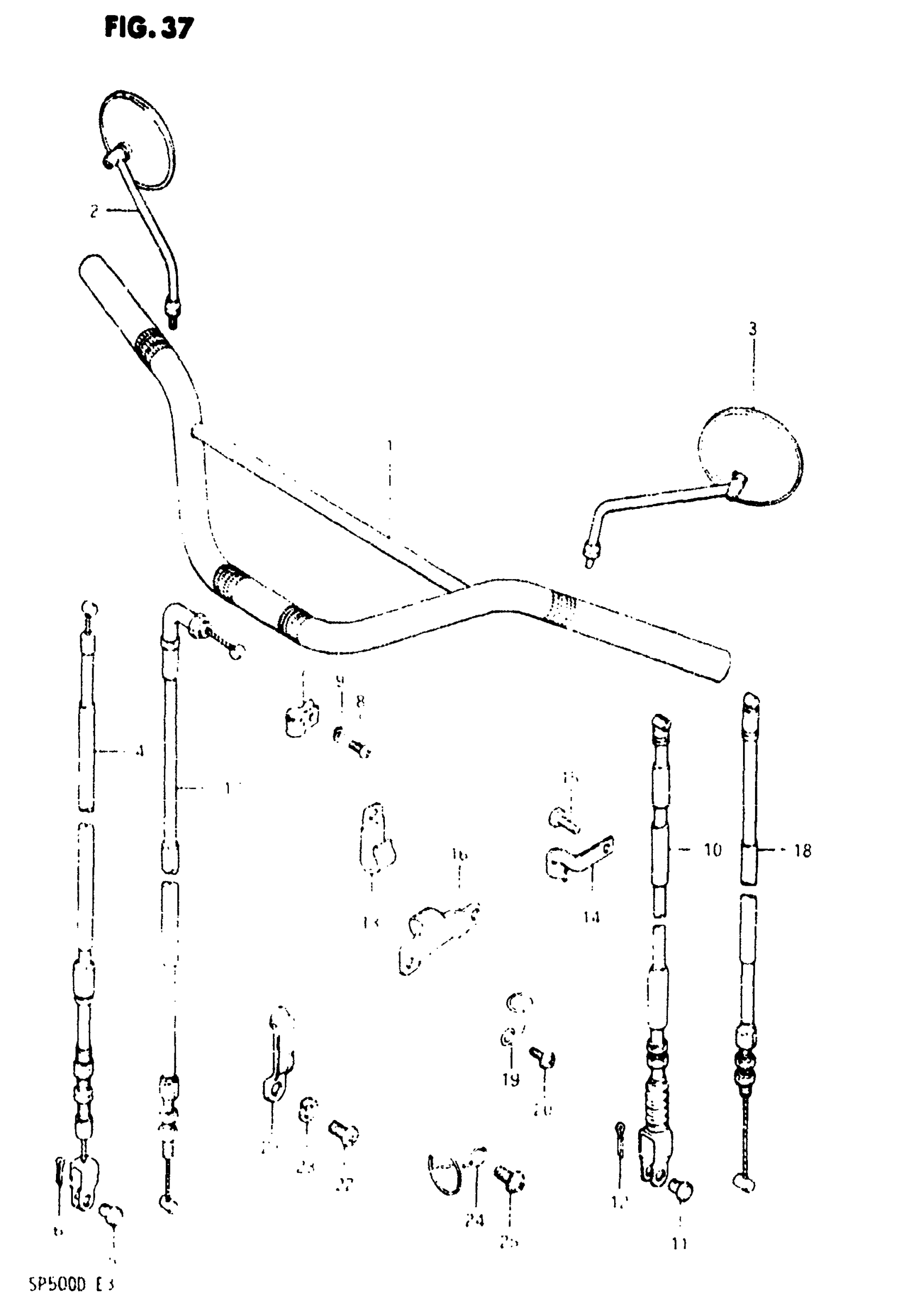

Suzuki SP500 (1983) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56110-37430

Unavailable

2

MIRROR ASSY,RR This part replaces 56500-45101.

56500-38AB2

$357.02

3

MIRROR ASSY,RR This part replaces 56600-45101.

56500-38AB2

$357.02

4

CABLE,FR BRAKE This part replaces 58100-41302.

58100-37200

Unavailable

5

PIN

09200-05001

$1.65

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

7

CLAMP, BRAKE CABLE

58621-40401

Unavailable

8

SCREW This part replaces 02112-06108.

02112-06107

$1.49

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

CABLE,CLUTCH This part replaces 58200-37400.

58200-37401

Unavailable

11

PIN

09200-06011

Unavailable

12

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

13

CLAMP This part replaces 09403-00059.

09404-08420

$3.16

14

CLAMP

58626-37400

Unavailable

15

BOLT This part replaces 01107-06108.

01500-06107

$2.06

16

STOPPER, CLUTCH CABLE

58634-37400

Unavailable

17

CABLE, THROTTLE

58300-37450

Unavailable

18

CABLE, DECOMP

58900-37400

Unavailable

19

GUIDE, CABLE

58621-17200

Unavailable

20

STOPPER, CL RLSE CAM SHAFT This part replaces 02152-06108.

02142-0610A

$1.49

21

CLAMP

09403-07309

Unavailable

22

SCREW This part replaces 02112-06108.

02112-06107

$1.49

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

CLAMP

58621-37400

Unavailable

25

STOPPER, CL RLSE CAM SHAFT This part replaces 02152-06108.

02142-0610A

$1.49
