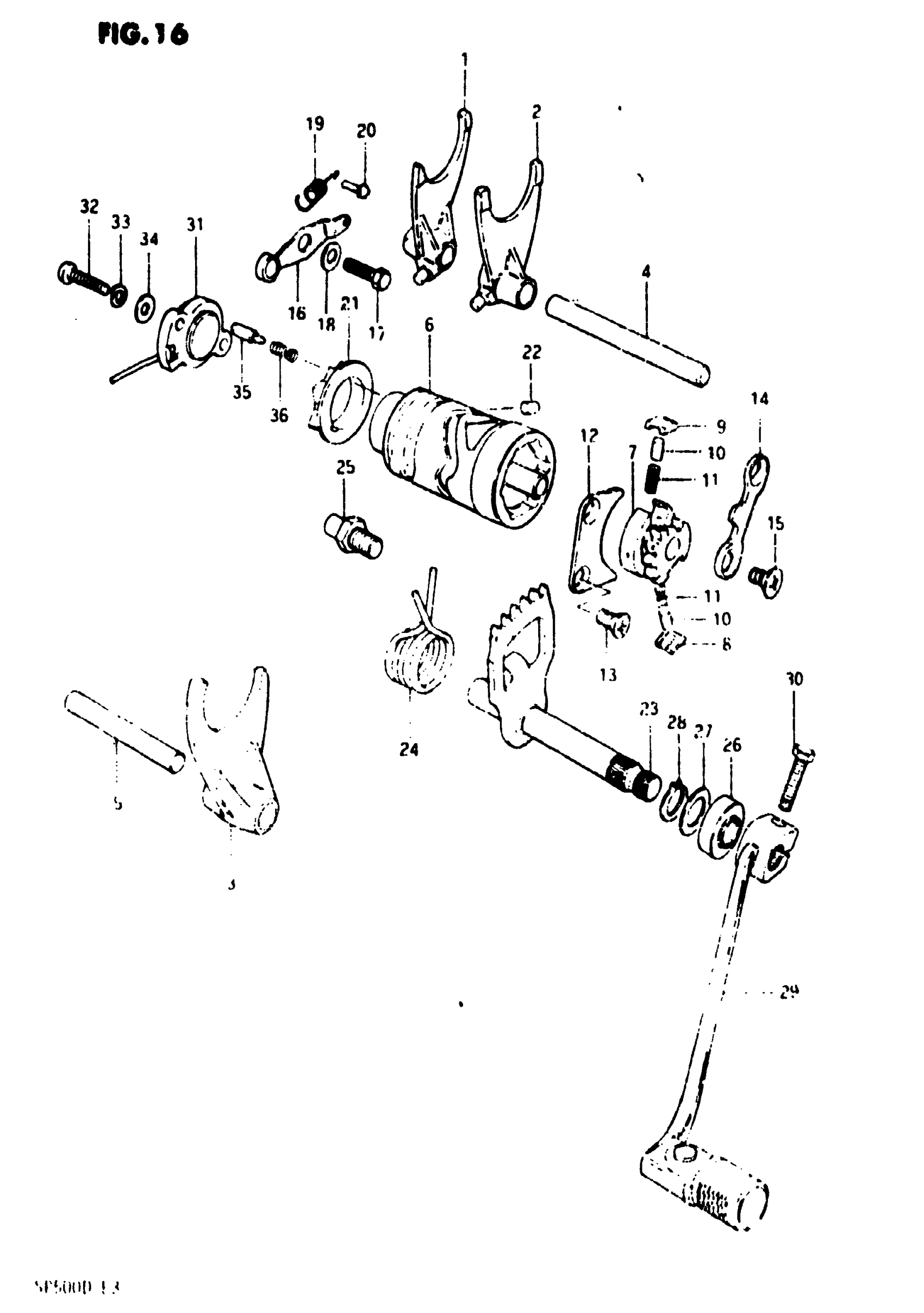

Suzuki SP500 (1983) GEAR SHIFTING Diagram

FORK,GEAR SHIFT NO,1 This part replaces 25211-37400.

25211-37401

$90.20

FORK,GEAR SHIFT,NO,2 This part replaces 25221-37400.

25221-37401

$90.20

FORK, GEAR SHIFTING (3)

25231-37400

Unavailable

SHAFT, FORK NO.1 This part replaces 25411-37410.

25411-20A11

Unavailable

SHAFT, FORK NO.2 This part replaces 25421-37400.

25421-14A02

$23.07

CAM, GEAR SHIFTING

25310-37400

$135.23

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$26.93

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

PIN

09261-05003

$1.54

SPRING

09440-04003

$1.54

LIFTER, PAWL

25331-37400

Unavailable

SCREW This part replaces 02122-06128.

02122-06127

$1.84

GUIDE, CAM

25341-40001

$12.17

SCREW This part replaces 02122-06128.

02122-06127

$1.84

STOPPER

25350-37400

$15.42

BOLT This part replaces 09111-06019.

09111-06054

$3.70

WASHER

08211-06141

$1.59

SPRING

09443-08020

$2.90

PIN This part replaces 09220-04001.

09223-04001

$1.68

PLATE,GEAR SHIFT CAM STOPPER This part replaces 25381-37400.

25381-37401

$20.77

PIN This part replaces 06211-04063.

04221-04069

$2.12

NO DESCRIPTION AVAILABLE This part replaces 25510-37400.

25510-37401

Unavailable

SPRING This part replaces 09444-26012.

09444-26013

$3.10

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

WASHER

08212-12201

$1.72

CIRCLIP This part replaces 08331-31128.

08331-3112A

$1.78

LEVER ASSY, GEAR SHIFTING

25600-37410

Unavailable

BOLT, GEAR SHIFT LINK This part replaces 09100-06100.

01500-0620A

$1.78

BODY, GEAR SHIFTING SWITCH

37720-37403

Unavailable

SCREW This part replaces 02112-05168.

02112-05167

$1.97

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

WASHER This part replaces 08322-21058.

08322-01057

$2.13

CONTACT

09209-05011

$2.20

SPRING

09440-04010

$1.54
