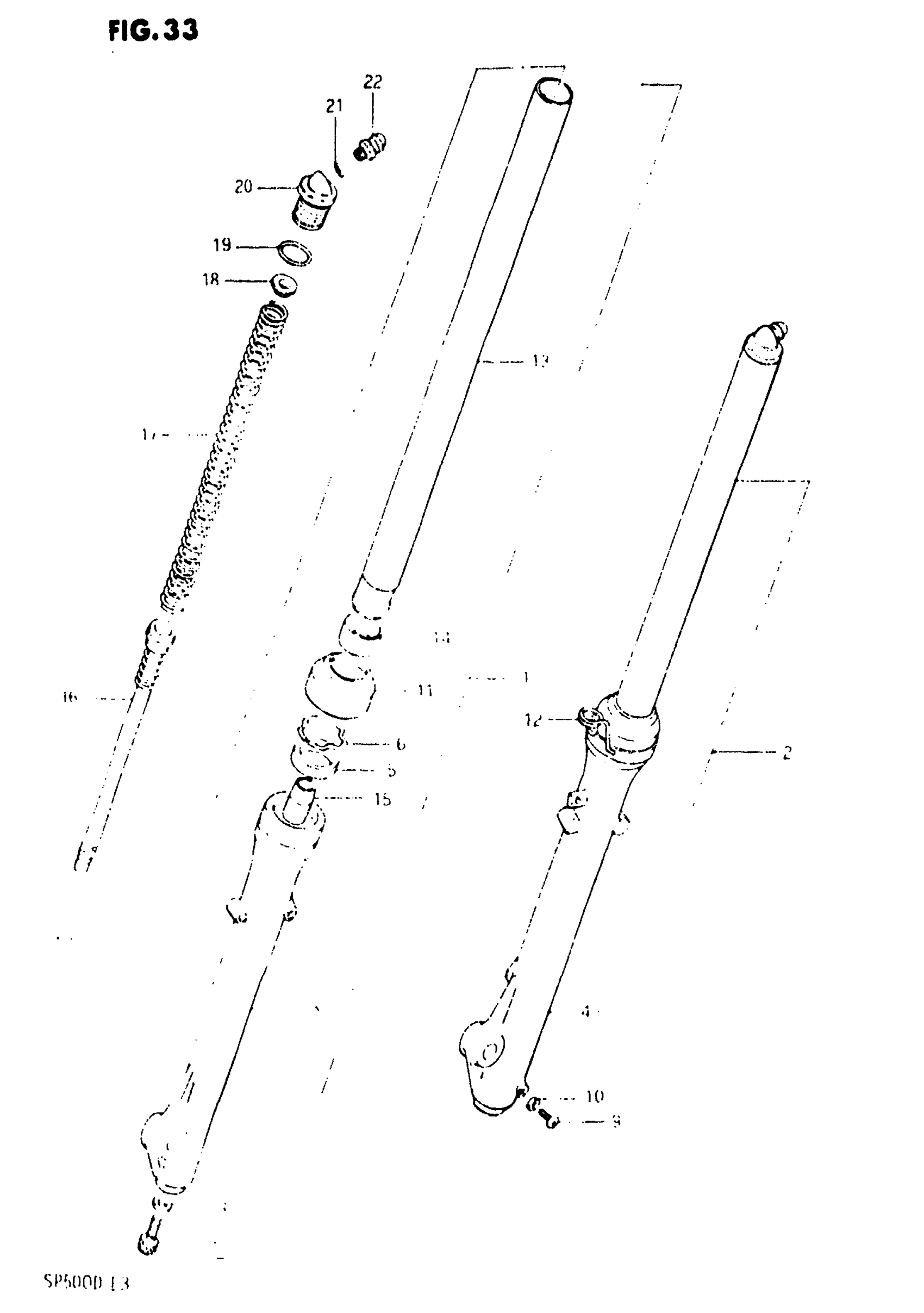

Suzuki SP500 (1983) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-37446

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 22

51104-37446

Unavailable

3

OUTER TUBE RH

51130-37410

Unavailable

4

OUTER TUBE LH

51140-37410

Unavailable

5

FORK OIL SEAL This part replaces 51153-41211.

51153-16730

Unavailable

6

RING, STOPPER

51156-30400

Unavailable

7

BOLT

51147-16510

$4.34

8

GASKET

51148-41310

$2.26

9

SCREW This part replaces 02112-04088.

02112-04087

$1.49

10

GASKET

51183-03010

$2.07

11

DUST SEAL

51173-41110

Unavailable

12

BANO

51573-37411

Unavailable

13

INNER TUBE

51110-37446

Unavailable

14

PISTON

51121-37410

Unavailable

15

PIECE, OIL LOCK This part replaces 51195-41210.

51195-49071

$21.43

16

CYLINDER

51146-30400

Unavailable

17

SPRING

51171-37446

Unavailable

18

GUIDE

51172-38010

Unavailable

19

O RING

51117-16310

Unavailable

20

CAP

51351-37446

Unavailable

21

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

$1.49

22

VALVE

51169-14200

Unavailable
