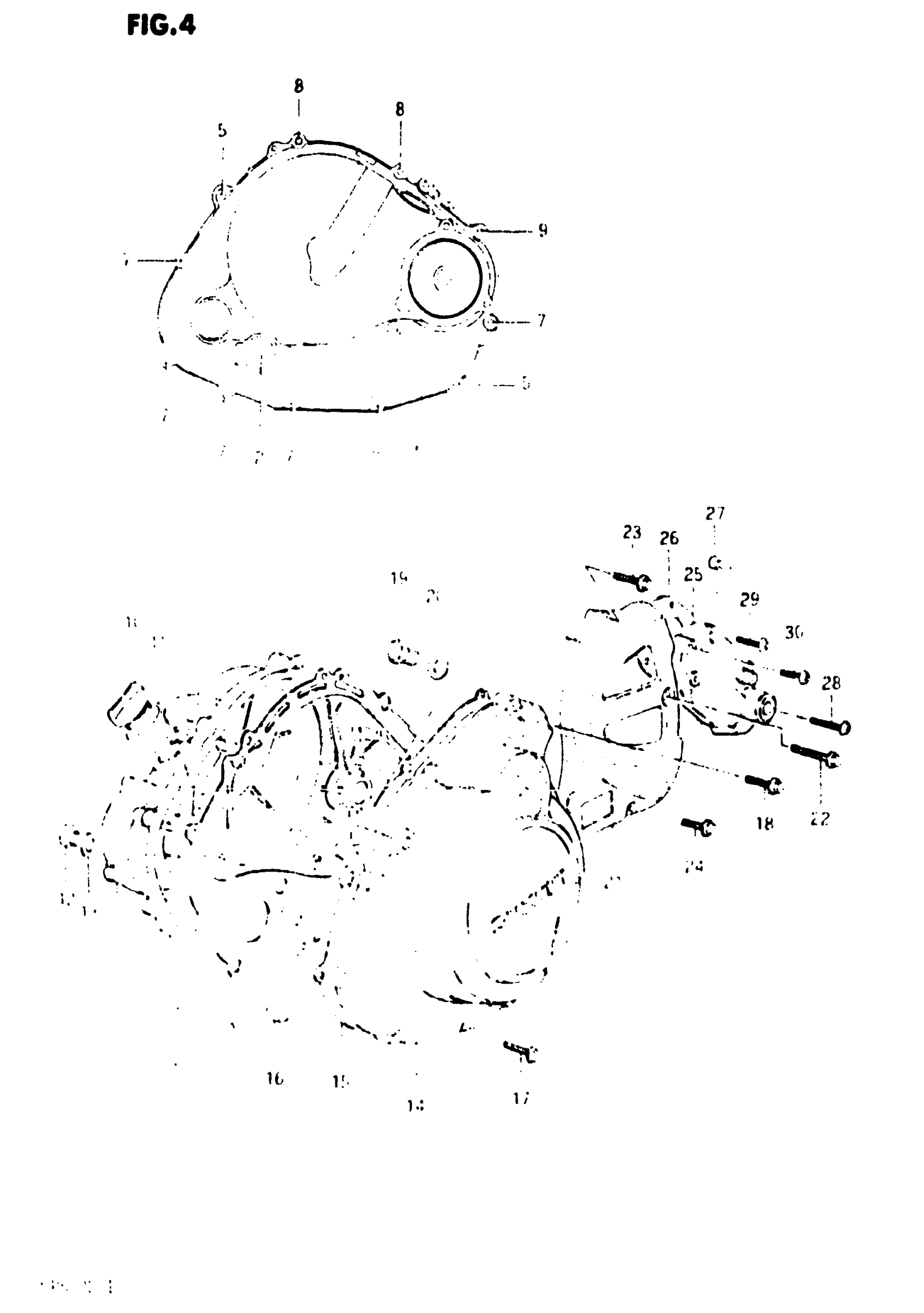

Suzuki SP500 (1983) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-37401

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET,CL COVER This part replaces 11482-37400.

11482-37400-H17

Unavailable

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

BOLT This part replaces 01547-06505.

01547-0650B

$2.75

6

BOLT This part replaces 01547-06405.

01547-0640B

$2.75

7

BOLT, WATER PUMP This part replaces 01547-06355.

01547-0635B

$2.73

8

BOLT (6x25)

01547-06255

Unavailable

9

SCREW (6X25)

09125-06035

$2.23

10

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

11

GASKET

09280-32005

$1.99

12

PLUG This part replaces 09247-14012.

09247-14026

$3.76

13

GASKET

09168-14004

$1.83

14

COVER, MAGNETO

11351-37402

Unavailable

15

GASKET, MAGNETO INNER COVER This part replaces 11483-37400.

11483-12D10

$33.85

16

PIN This part replaces 09206-13001.

04211-13189

$2.19

17

BOLT This part replaces 01547-06305.

01547-06307

$2.03

18

BOLT (6x25)

01547-06255

Unavailable

19

PLUG, T.D.C

09247-12103

$2.84

20

GASKET

09168-12002

$1.59

21

COVER, ENGINE SPROCKET

11361-37401

Unavailable

22

BOLT This part replaces 01547-06455.

01547-0645B

$2.73

23

BOLT This part replaces 01547-06305.

01547-06307

$2.03

24

..BOLT This part replaces 01547-06205.

01547-0620B

$2.45

25

COVER, GEAR SHIFT

11371-37400

Unavailable

26

NO DESCRIPTION AVAILABLE This part replaces 11485-37400.

11485-37400-H17

Unavailable

27

PIN

04211-09129

$1.65

28

SCREW This part replaces 02112-06358.

02112-06357

$1.78

29

SCREW This part replaces 02112-06308.

02112-06307

$1.97

30

SCREW This part replaces 02112-06208.

02112-06207

$1.78
