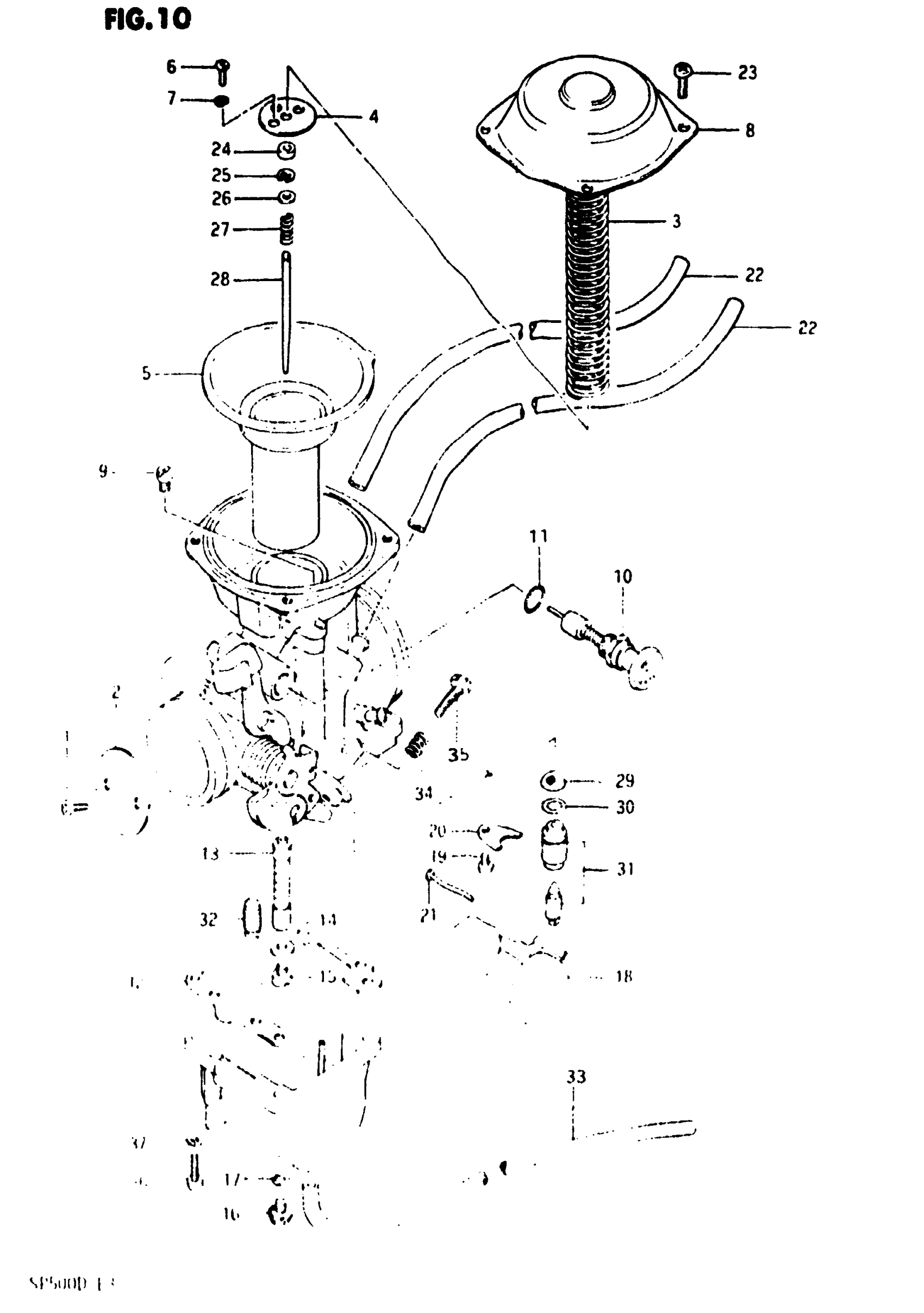

Suzuki SP500 (1983) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR | Includes Item(s) 1 - 37

13200-37400

Unavailable

1

SCREW

13604-44080

$2.92

2

VALVE, THROTTLE (125)

13551-37400

Unavailable

3

SPRING

13503-37400

Unavailable

4

PLATE

13389-37400

$7.08

5

DIAPHRAGM ASSY This part replaces 13500-37400.

13500-24B41

$231.13

6

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

7

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

8

COVER

13502-37400

Unavailable

9

JET, MAIN (100) This part replaces 09491-20010.

09491-20019

$10.54

10

PLUNGER ASSY This part replaces 13411-37100.

13411-37400

Unavailable

11

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

12

.GASKET This part replaces 13251-37100.

13251-37101

$11.25

13

JET, NEEDLE (X-9)

09494-00322

Unavailable

14

WASHER

13382-03110

$2.80

15

.JET, MAIN (#140)

09491-28010

$9.69

16

PLUG, DRAIN

13247-44080

$7.97

17

O RING, DRAIN

13246-44080

$2.80

18

FLOAT

13250-37400

$28.97

19

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

20

PLATE

13373-39110

$6.64

21

PIN, FLOAT

13254-92311

$2.07

22

HOSE,5X10X600 This part replaces 13684-37100.

44421-13ER0

$10.06

23

SCREW This part replaces 02112-05108.

02112-05107

$1.49

24

RING

13387-44030

$5.83

25

E RING

13394-31210

$4.64

26

WASHER

13382-44030

$3.71

27

SPRING

13388-44030

$8.12

28

NEEDLE, JET (5C44)

13383-37400

Unavailable

29

FILTER This part replaces 13376-65010.

13376-19F00

$10.28

30

O RING This part replaces 66263-99050.

13374-35C00

$5.99

31

VALVE ASSY, NEEDLE This part replaces 13370-37400.

13370-24C80

$89.23

32

JET, PILOT This part replaces 09492-47007.

09492-47017

Unavailable

33

HOSE, OVER FLOW (L:400)

13683-45070

$11.80

34

SPRING This part replaces 13271-37100.

13271-93011

$5.32

35

ADJUSTER This part replaces 13267-37100.

13267-25D00

$14.20

36

SCREW This part replaces 02112-06168.

02112-06167

$1.49

37

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
