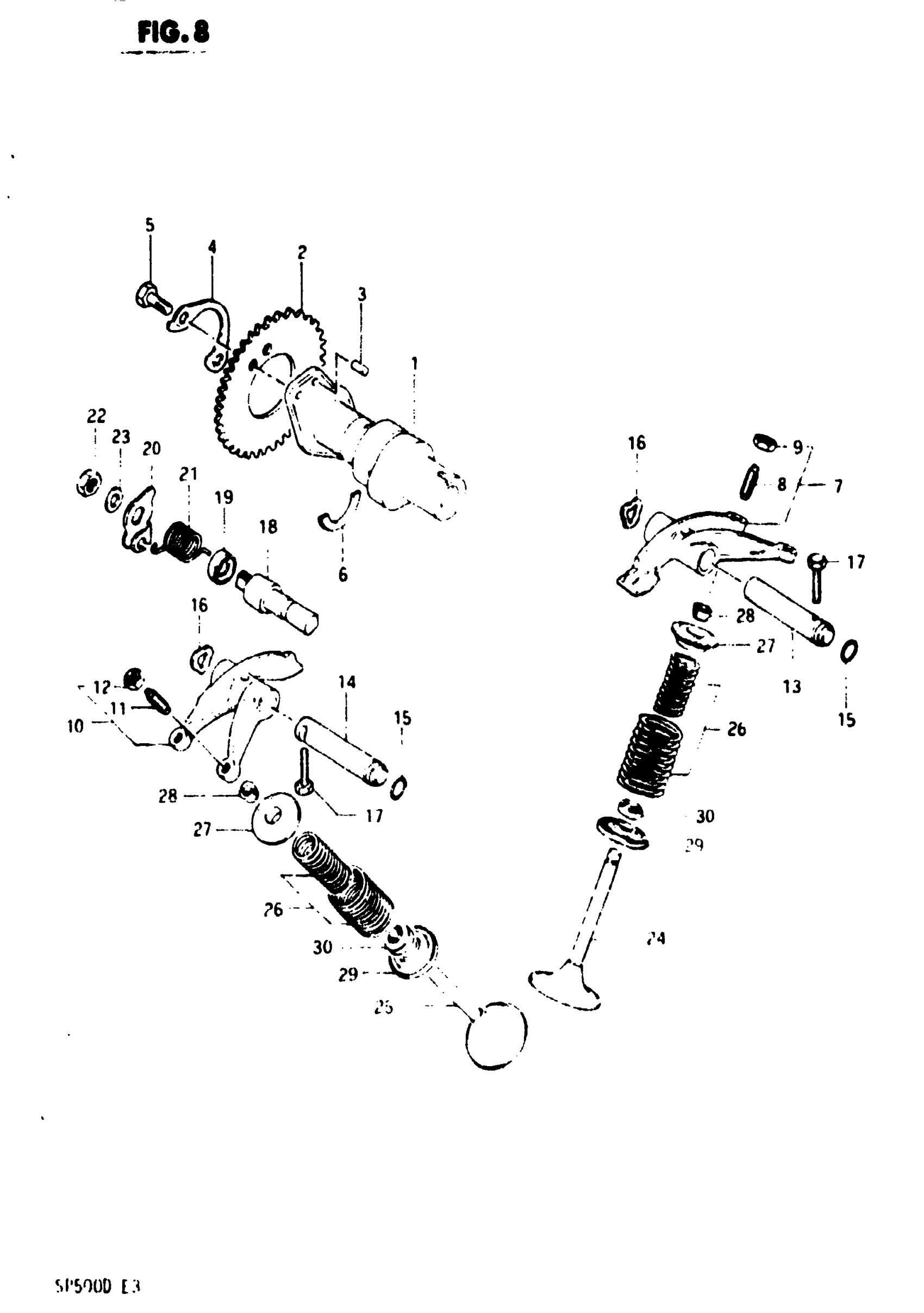

Suzuki SP500 (1983) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-37400

Unavailable

2

SPROCKET (NT:42)

12741-37400

Unavailable

3

PIN This part replaces 06211-05103.

04221-05109

$1.49

4

WASHER This part replaces 12747-44000.

12747-44001

$2.50

5

BOLT

09111-06027

$1.72

6

C RING

09390-25003

$2.48

7

ARM, VALVE ROCKER INTAKE | Includes Item(s) 8 - 9 This part replaces 12840-37400.

12840-07F00

$92.70

8

.SCREW, TAPPET ADJUSTING This part replaces 12842-32410.

12842-32411

$5.24

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

ARM, VALVE ROCKER EXHAUST | Includes Item(s) 11 - 12 This part replaces 12850-37400.

12850-37401

$98.40

11

.SCREW, TAPPET ADJUSTING This part replaces 12842-32410.

12842-32411

$5.24

12

.NUT, ADJUSTING SCREW

12843-32400

$2.79

13

SHAFT, ROCKER ARM IN | L:93.5

12861-37401

Unavailable

14

SHAFT, ROCKER ARM EX | L:79

12871-37401

Unavailable

15

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

16

WASHER

09164-12018

$1.49

17

BOLT, SHAFT EX

09100-06009

$1.91

18

SHAFT, DECOMP RH This part replaces 12941-37100.

12941-37103

Unavailable

19

SEAL, OIL This part replaces 09284-10005.

09282-10014

$6.70

20

LEVER, SHAFT RH This part replaces 12942-37100.

12942-37101

Unavailable

21

SPRING

09448-17014

$4.07

22

NUT, ADJUSTER This part replaces 08310-22085.

09140-08021

$2.63

23

WASHER This part replaces 08322-11085.

08322-0108A

$1.92

24

VALVE, INTAKE (00:33)

12911-37400

Unavailable

25

VALVE, EXHAUST (00:28)

12912-37400

$82.02

26

SPRING SET, VALVE This part replaces 12920-37400.

12920-37402

$18.02

27

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

$8.12

28

COTTER, VALVE

12932-45010

$2.37

29

SEAT,VALVE SPRI This part replaces 12933-37400.

12933-37401

$3.60

30

OIL SEAL

09289-07002

$7.98
