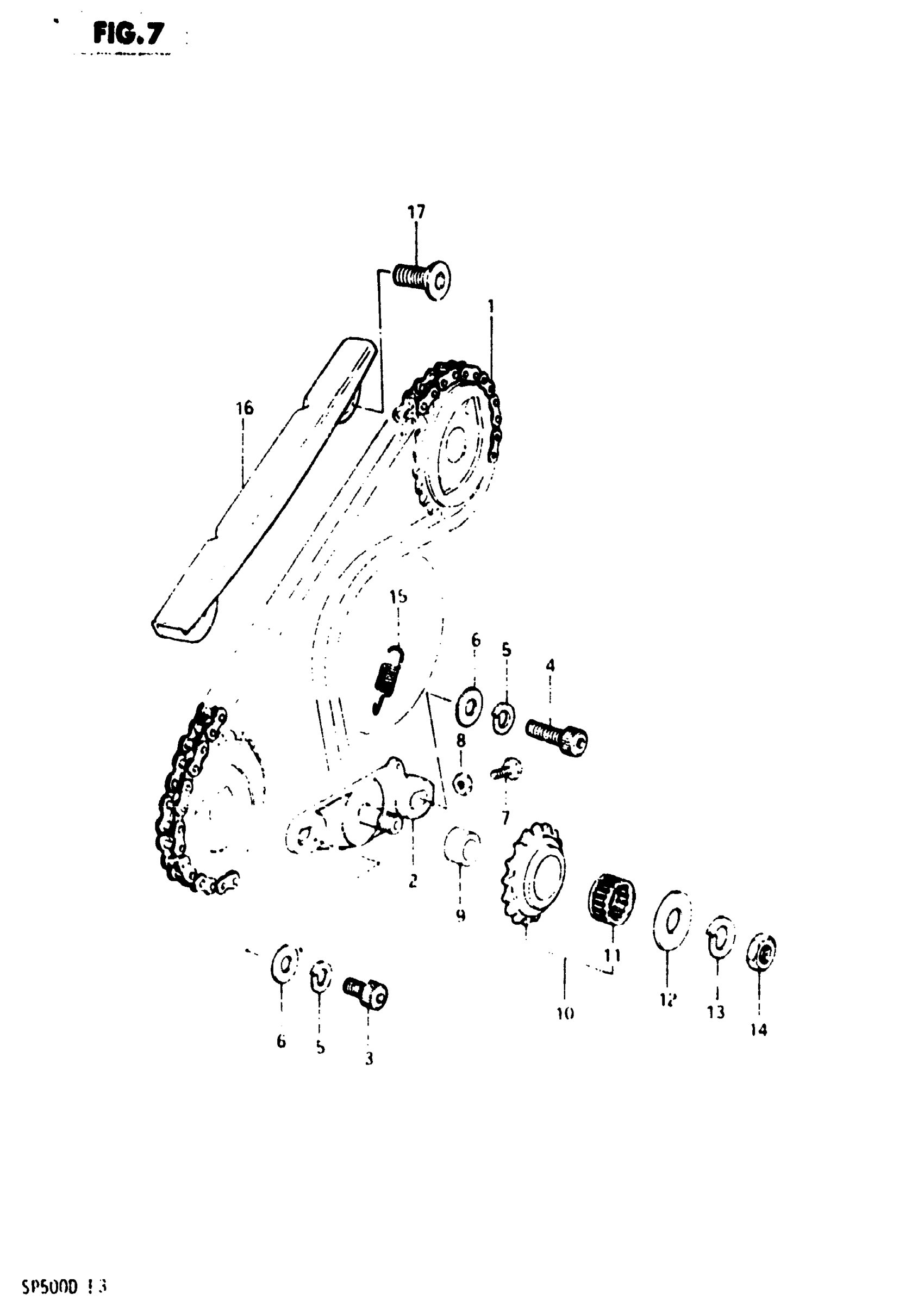

Suzuki SP500 (1983) BALANCER CHAIN Diagram

#

Description
Price

1

CHAIN, BALANCER This part replaces 12670-37440.

12670-12D00

$134.48

2

BRACKET, CHAIN TENSIONER

12681-37401

Unavailable

3

BOLT, FRONT

09106-08005

Unavailable

4

BOLT, STEERING DAMPER This part replaces 09106-08013.

07130-0830A

$1.74

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

WASHER This part replaces 08322-21088.

08322-01087

$2.13

7

BOLT

09100-05006

Unavailable

8

NUT This part replaces 08310-22058.

08310-00057

$1.84

9

NO DESCRIPTION AVAILABLE This part replaces 12684-37400.

12684-37402

Unavailable

10

SPROCKET, TENSIONER (NT:19) | Includes Item(s) 11 This part replaces 12685-37452.

12685-44B00

Unavailable

11

BEARING

09263-17007

Unavailable

12

WASHER

08211-12303

Unavailable

13

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

14

NUT

09140-12021

Unavailable

15

SPRING

09443-10022

$2.53

16

GUIDE, CHAIN

12695-37451

Unavailable

17

SCREW

09120-08005

Unavailable
