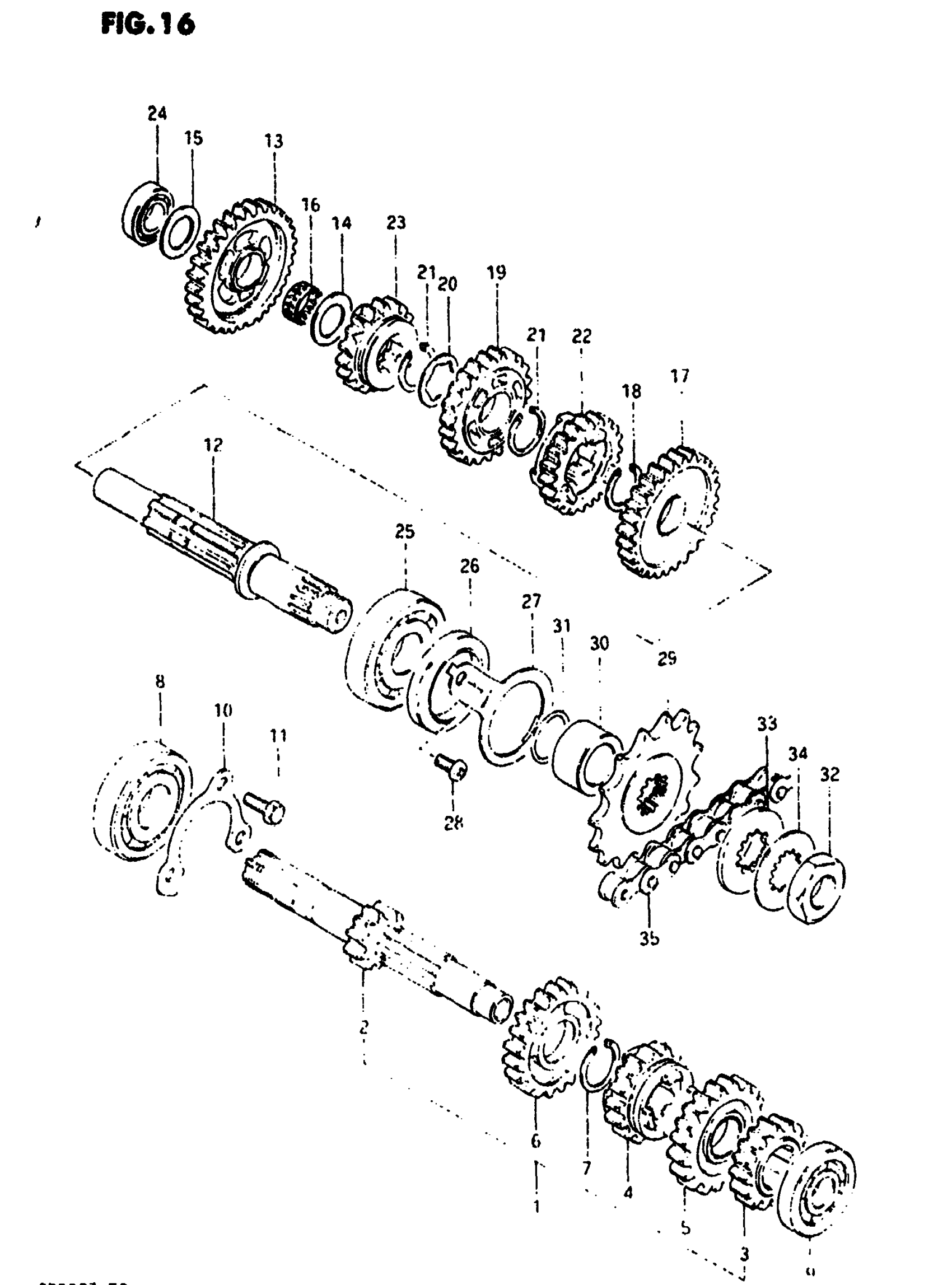

Suzuki SP500 (1982) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT | Includes Item(s) 2 - 7

24120-37400

Unavailable

2

COUNTERSHAFT (NT:12)

24121-37400

Unavailable

3

GEAR, 2ND DRIVE (NT:16)

24221-37400

Unavailable

4

GEAR, 3RD DRIVE (NT:19)

24231-37400

Unavailable

5

GEAR, 4TH DRIVE (NT:21)

24240-37400

Unavailable

6

GEAR, 5TH DRIVE (NT:23)

24250-37400

Unavailable

7

CIRCLIP

09380-25010

$2.91

8

BEARING (22X56X16) This part replaces 09262-22014.

09262-22028

$77.48

9

BEARING (17X40X12) This part replaces 09262-17018.

09262-17027

$35.28

10

HOLDER, BEARING

24741-37400

Unavailable

11

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

12

DRIVESHAFT

24131-37401

Unavailable

13

GEAR, 1ST DRIVEN (NT:29)

24311-37400

Unavailable

14

WASHER, LH

08211-20301

$2.35

15

WASHER, RH

08211-20303

Unavailable

16

BEARING

09263-20018

Unavailable

17

GEAR, 2ND DRIVEN (NT:26)

24320-37400

Unavailable

18

CIRCLIP

09380-25010

$2.91

19

GEAR, 3RD DRIVEN (NT:24)

24330-37400

Unavailable

20

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

21

CIRCLIP

09380-25010

$2.91

22

GEAR, 4TH DRIVEN (NT:21)

24341-37400

Unavailable

23

GEAR, 5TH DRIVEN (NT:19)

24351-37400

Unavailable

24

BEARING, RH

09262-20059

$25.60

25

BEARING, RH (22X56X16) This part replaces 09262-22006.

09262-22025

$57.67

26

OIL SEAL, LH

09283-32020

Unavailable

27

HOLDER, OIL SEAL

24751-37400

Unavailable

28

BOLT This part replaces 01107-06128.

01500-06127

$1.97

29

SPROCKET (NT:15)

27511-32401

Unavailable

30

SPACER

09180-22005

Unavailable

31

O RING

09280-22003

$1.72

32

NUT

09140-18006

$4.83

33

SPACER (T:4.6)

27519-37400

Unavailable

34

WASHER

09167-22012

$1.54

35

CHAIN, DRIVE This part replaces 27600-37460.

27600-06C20-114

Unavailable
