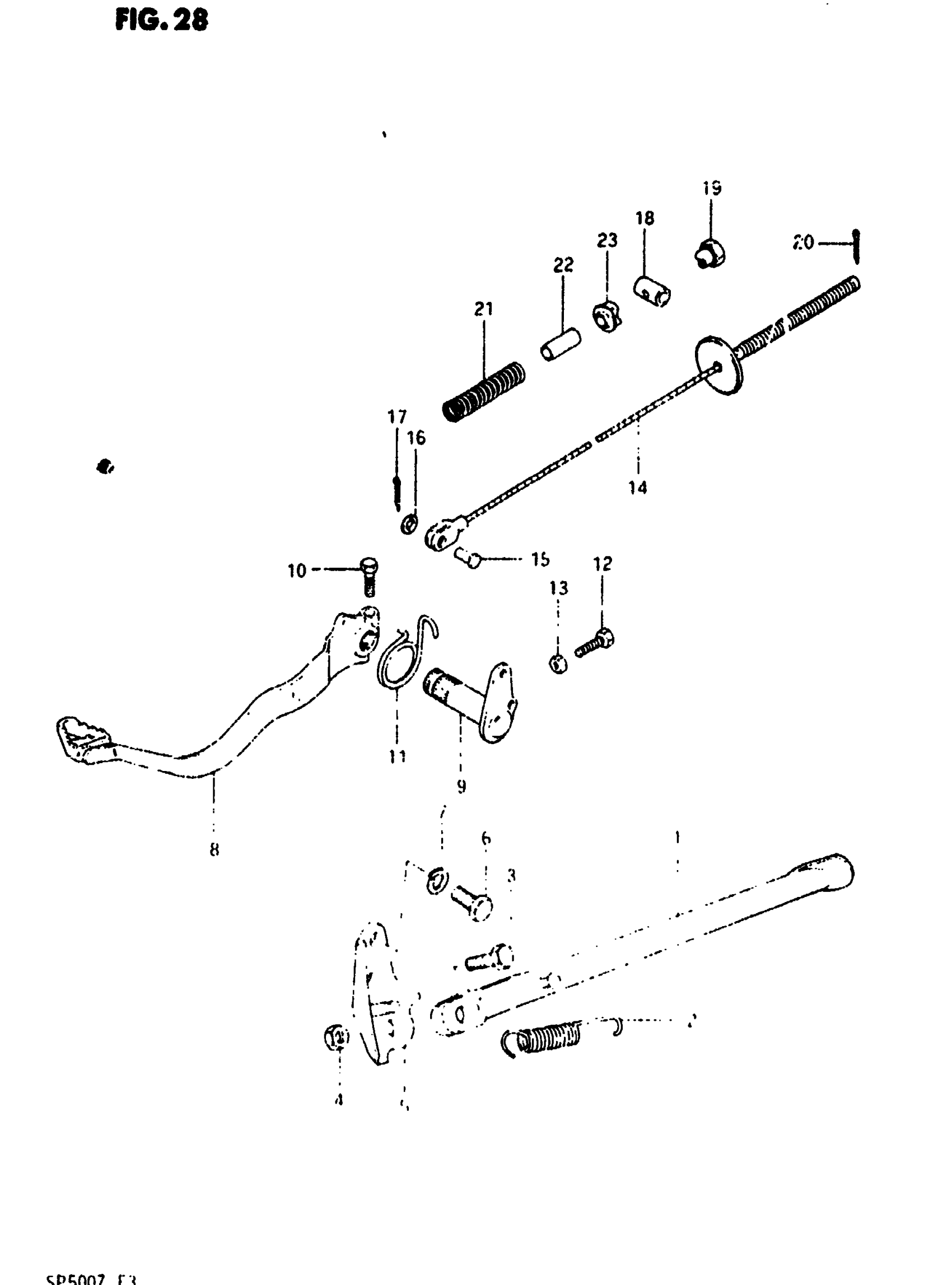

Suzuki SP500 (1982) STAND - REAR BRAKE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 42310-32401.

42310-48700-019

Unavailable

2

SPRING

09443-17007

$3.91

3

BOLT (10X30)

09100-10067

$2.61

4

NUT This part replaces 08310-22108.

08310-00107

$2.19

5

BRACKET, PROP STAND

42330-40400

Unavailable

6

BOLT

09100-10118

Unavailable

7

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

8

PEDAL, BRAKE

43110-37401

Unavailable

9

ARM, PEDAL

43120-37400

Unavailable

10

BOLT This part replaces 01107-06208.

01500-06207

$2.28

11

NO DESCRIPTION AVAILABLE This part replaces 09448-25005.

09448-25005-XC0

Unavailable

12

BOLT (6x27)

09100-06009

$1.91

13

.NUT This part replaces 08310-11068.

08310-00067

$2.13

14

CABLE, REAR BRAKE

58510-40400

Unavailable

15

PIN

09200-05001

$1.65

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

18

PIN

43380-37200

Unavailable

19

.NUT This part replaces 09150-06001.

09150-06010

$3.10

20

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

21

SPRING

09440-11012

Unavailable

22

HOSE,5X10X600 This part replaces 61155-79000.

44421-13ER0

$10.06

23

CUSHION, PIN

43370-37300

Unavailable
