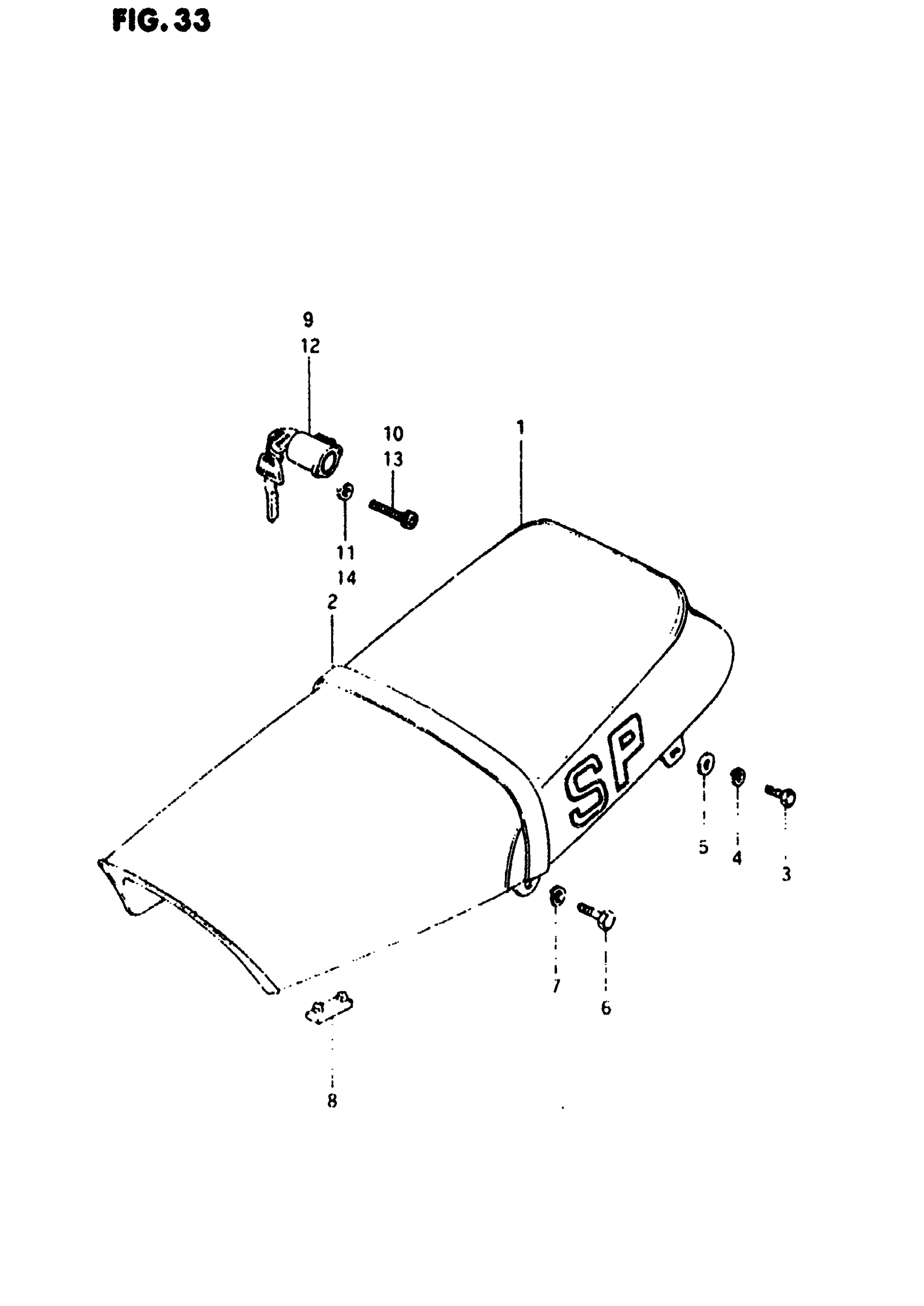

Suzuki SP500 (1982) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLUE) | MODEL X This part replaces 45100-37450-865.

45100-37440-49R

Unavailable

1

SEAT ASSY (BLUE) | MODEL Z This part replaces 45100-37440-865.

45100-37440-49R

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 45180-37451.

45180-37451-48F

Unavailable

3

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

4

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

5

WASHER This part replaces 08322-11088.

08322-01087

$2.13

6

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

CUSHION

09321-08009

$3.05

9

LOCK SET, HELME | MODEL X This part replaces 95700-35821.

95700-49850

Unavailable

10

SCREW | MODEL X This part replaces 02112-06108.

02112-06107

$1.49

11

LOCK WASHER | MODEL X This part replaces 08321-21063.

08321-0106A

$1.84

12

LOCK SET, HELMET | MODEL Z This part replaces 95700-37400-KEY.

95700-37810

Unavailable

13

SCREW | MODEL Z This part replaces 02112-06108.

02112-06107

$1.49

14

LOCK WASHER | MODEL Z This part replaces 08321-21068.

08321-01067

$2.13
