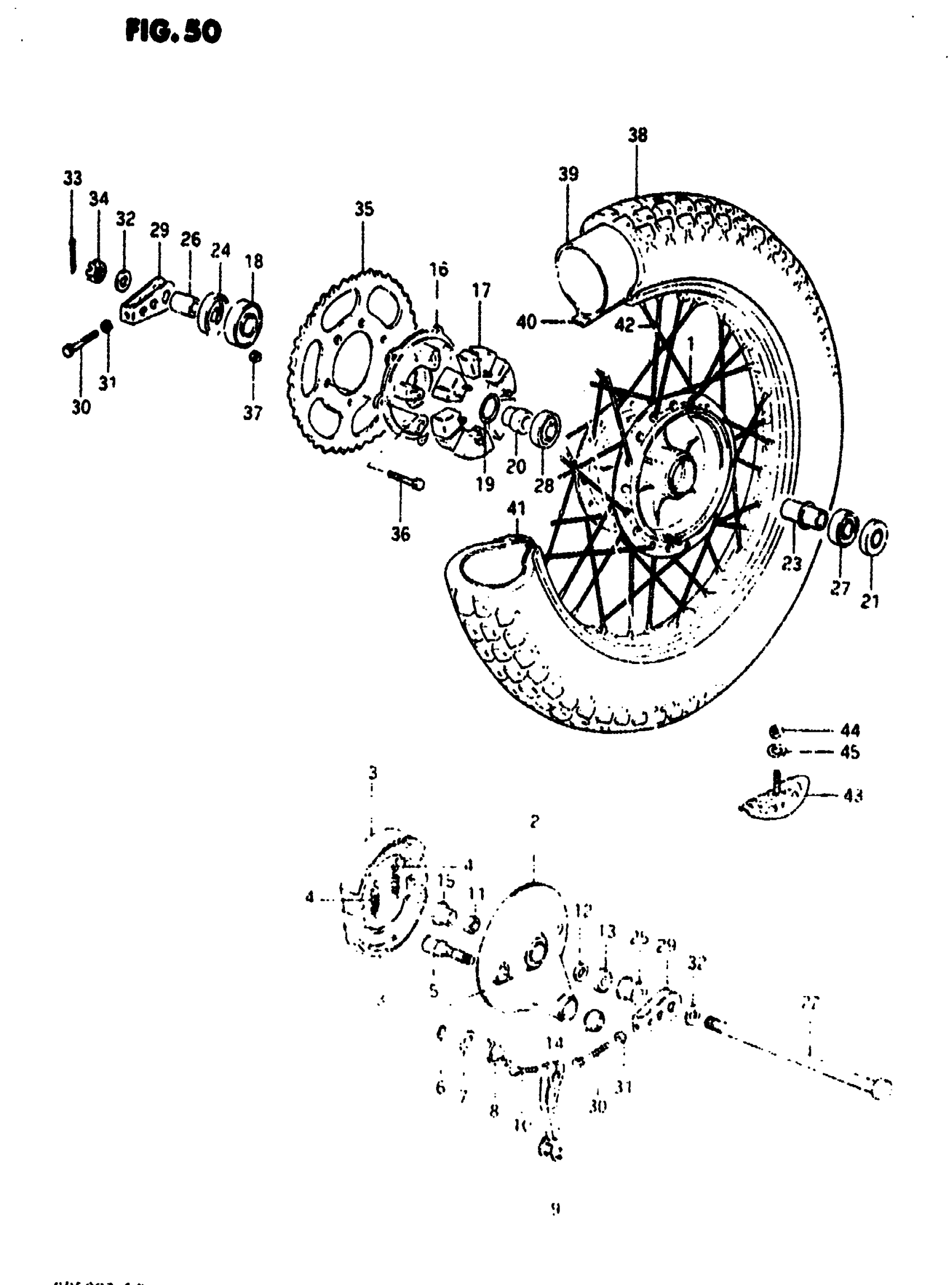

Suzuki SP500 (1982) REAR WHEEL Diagram

#

Description
Price

1

HUB

64110-37200

Unavailable

2

PANEL

64210-37200

Unavailable

3

SHOE SET, REAR BRAKE This part replaces 54410-32400.

64400-02830

$55.17

4

SPRING

55420-41100

Unavailable

5

CAM, REAR BRAKE This part replaces 54440-08003.

54440-08004

$27.62

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

7

WASHER This part replaces 09160-15001.

09160-15048

$2.56

8

SPRING

09448-33006

$9.23

9

LEVER, BRAKE CAM

64451-37400

Unavailable

10

BOLT This part replaces 01107-06258.

01500-06257

$1.97

11

BEARING

09263-24013

Unavailable

12

THRUST WASHER

08211-17361

$2.83

13

COVER, REAR BRAKE PANAL

64845-37200

Unavailable

14

BEARING

64352-40401

Unavailable

15

SPACER

64213-37200

Unavailable

16

DRUM, SPROCKET MOUNTING

64611-37400

Unavailable

17

CUSHION, HUB

64651-37200

Unavailable

18

BEARING

08113-62057

$25.60

19

O RING This part replaces 09280-58001.

09280-58003

Unavailable

20

HOLDER, SPROCKET

64733-37200

Unavailable

21

OIL SEAL

09285-55002

Unavailable

22

AXLE,REAR This part replaces 64711-33000.

64711-3300V

Unavailable

23

SPACER, REAR HUB

64730-37200

Unavailable

24

SEAL,OIL(30.5X5 This part replaces 09285-30001.

09285-30003

$23.97

25

SPACER, RH

64741-37200

Unavailable

26

SPACER, LH

09180-17055

$10.97

27

BEARING, REAR HUB RH

08143-62037

$18.47

28

BEARING, REAR HUB LH

08143-63037

$22.58

29

ADJUSTER, CHAIN

61410-37200

Unavailable

30

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

31

NUT This part replaces 08310-12088.

08310-00087

$2.13

32

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

$2.45

33

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

34

NUT

09141-16001

Unavailable

35

SPROCKET, REAR (NT:46)

64511-37340

Unavailable

36

REAR SHOCK ABSORBER LOWER BOL This part replaces 09100-10162.

09100-10046

Unavailable

37

NUT This part replaces 08319-31108.

08319-31107

$2.73

38

TIRE (460-18) | IRC

65100-37411

Unavailable

39

TUBE, INNER

65200-49015

Unavailable

40

IN TUBE PROTECT This part replaces 65261-15010.

55261-26F10

$4.39

41

RIM (215x18)

65311-37210

Unavailable

42

SPOKE ASSY

65320-37201

Unavailable

43

STOPPER, BEAD This part replaces 65270-14200.

65270-28E00

$58.75

44

NUT This part replaces 08310-12088.

08310-00087

$2.13

45

WASHER This part replaces 08322-11088.

08322-01087

$2.13
