1982 Suzuki SP500 Rear Combination Lamp Diagram

← All diagrams

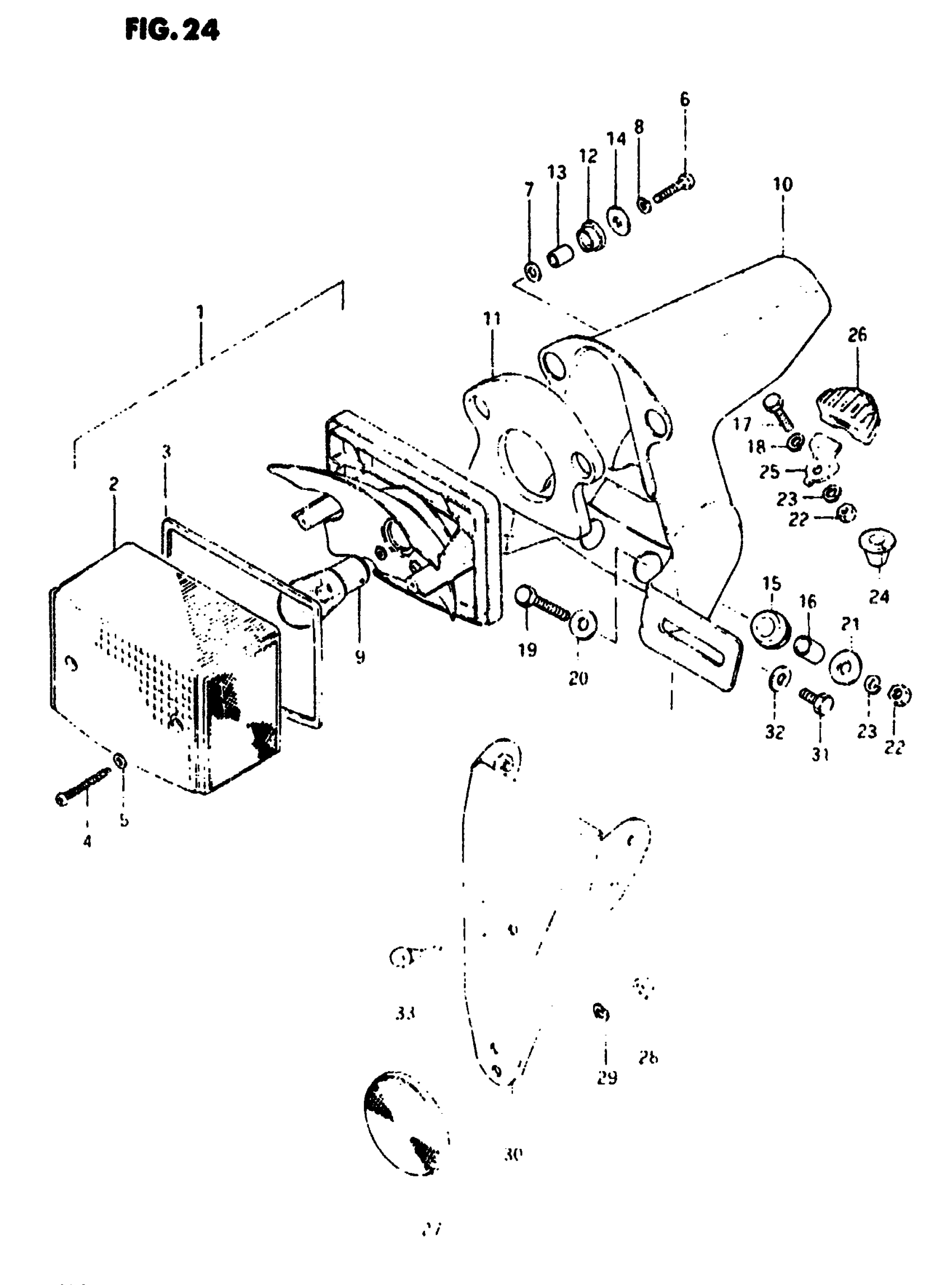

Find the part on the Rear Combination Lamp diagram for your 1982 Suzuki SP500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Suzuki SP500 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP UNIT,RR CO | Includes Item(s) 2 - 9 This part replaces 35720-37430.

35720-37430-999

1
Out of stock

2

LENS

35712-48510

1
Out of stock

3

GASKET

35713-48510

1
Out of stock

4

SCREW This part replaces 03211-04308.

03211-04306

2
Out of stock

5

GASKET

35627-43010

2

$2.65

In stock

6

SCREW This part replaces 02112-05258.

02112-05257

2
Out of stock

7

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

9

BULB (6V,32/3CP)

09471-06030

1
Out of stock

10

BRACKET ASSY | Includes Item(s) 11 - 16

35730-37430

1
Out of stock

11

CUSHION

35765-37410

1
Out of stock

12

CUSHION

35764-37410

2
Out of stock

13

SPACER

35766-36510

2
Out of stock

14

WASHER

35727-37410

2
Out of stock

15

CUSHION

35765-32410

2
Out of stock

16

SPACER

35766-37120

2
Out of stock

17

BOLT This part replaces 01107-06208.

01500-06207

1
Out of stock

18

1

$2.28

In stock

19

BOLT, REAR This part replaces 01107-06308.

01500-06307

2
Out of stock

20

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

2
Out of stock

21

WASHER

09169-06016

3
Out of stock

22

.NUT This part replaces 08310-11068.

08310-00067

3
Out of stock

23

WASHER This part replaces 08322-21068.

08322-01067

3
Out of stock

24

GROMMET

09308-07004

2
Out of stock

25

PLATE This part replaces 35793-37200.

35793-37201

1
Out of stock

26

CUSHION

35717-37200

1
Out of stock

27

REFLEX REFLECTOR, REAR

35970-30910

1
Out of stock

28

NUT This part replaces 08310-11058.

08310-00057

1
Out of stock

29

LOCK WASHER This part replaces 08321-21058.

08321-0105A

1
Out of stock

30

BRACKET

35974-37430

1
Out of stock

31

BOLT This part replaces 01107-06108.

01500-06107

2
Out of stock

32

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

33

CUSHION

09321-05005

1
Out of stock
