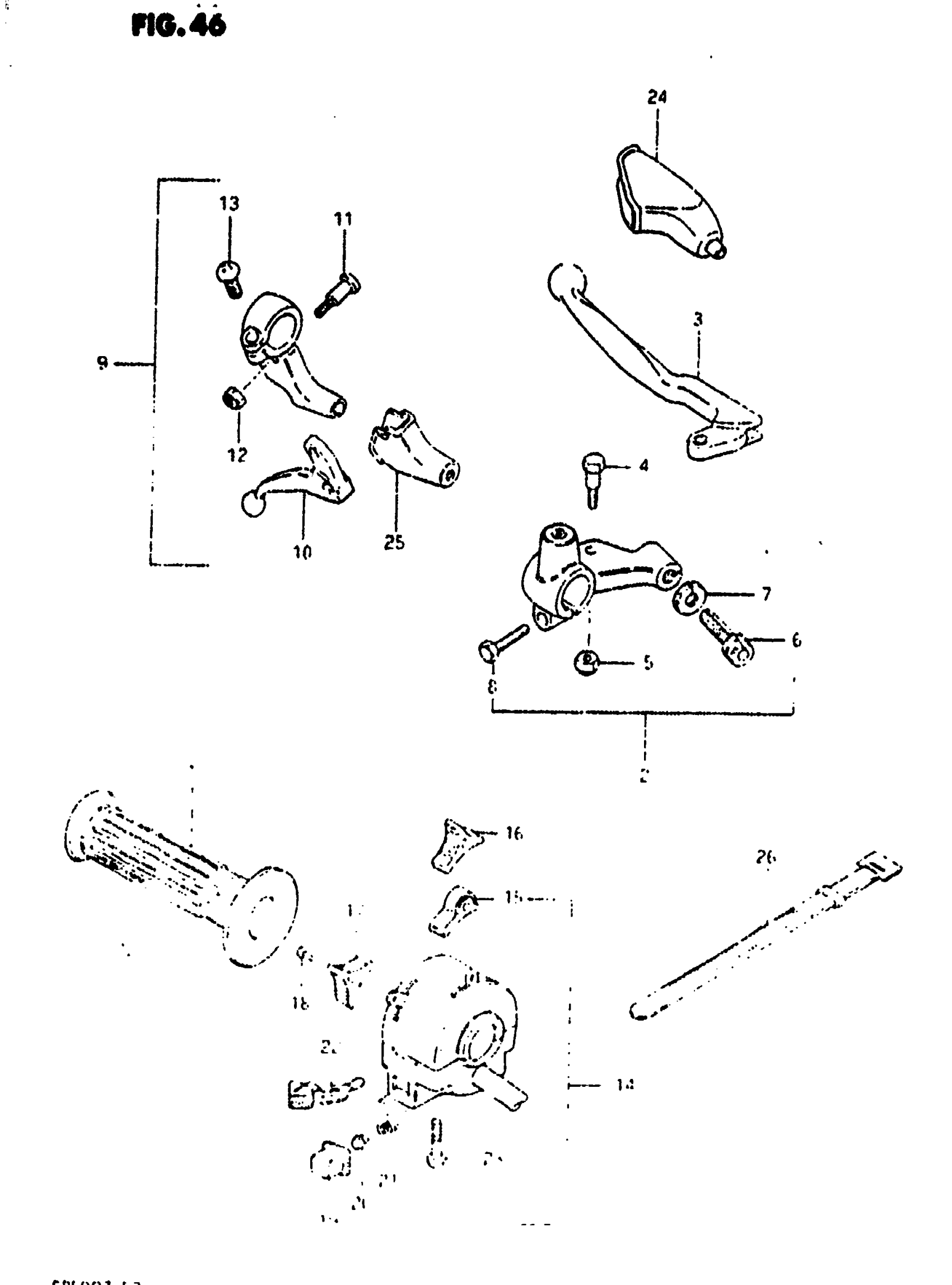

Suzuki SP500 (1982) LEFT HANDLE SWITCH (MODEL Z) Diagram

#

Description
Price

1

GRIP,L This part replaces 57211-45020.

57211-45021

$11.48

2

LEVER ASSY, CLUTCH | Includes Item(s) 3 - 8

57500-37200

Unavailable

3

LEVER, CLUTCH (BLACK) This part replaces 57621-49101.

57620-49101

Unavailable

4

BOLT This part replaces 57431-11011.

57431-11013

$6.21

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.97

6

ADJUSTER, CABLE

57441-11010

$5.38

7

NUT

57442-11010

$2.80

8

BOLT

57451-49100

Unavailable

9

LEVER ASSY,DECO | Includes Item(s) 10 - 13 This part replaces 58700-38200.

58700-38210

$170.18

10

LEVER, DECOMP

58731-38200

$55.78

11

SCREW This part replaces 57431-01011.

57431-01012

$5.16

12

SCREW This part replaces 57633-27500.

08319-21057

$2.25

13

SCREW This part replaces 02112-06208.

02112-06207

$1.83

14

SWITCH ASSY, HANDLE LH | Includes Item(s) 15 - 23

37400-37430

Unavailable

15

KNOB, STOPPER

37414-45602

Unavailable

16

KNOB, LIGHTING (OPT)

37411-45012

$6.95

17

KNOB, DIMMER

37421-45012

$6.95

18

SCREW This part replaces 02122-03068.

02122-03067

$1.88

19

BUTTON, HORN

57371-45000

$5.10

20

CONTACT

57372-45000

$5.02

21

SPRING

57382-45000

$3.80

22

KNOB, TURN SIGNAL

37513-45011

$8.15

23

SCREW This part replaces 02112-05258.

02112-05257

$1.55

24

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.24

25

COVER

57342-37101

Unavailable

26

BAND (L:120) This part replaces 09407-12403.

09407-12402

$2.82
