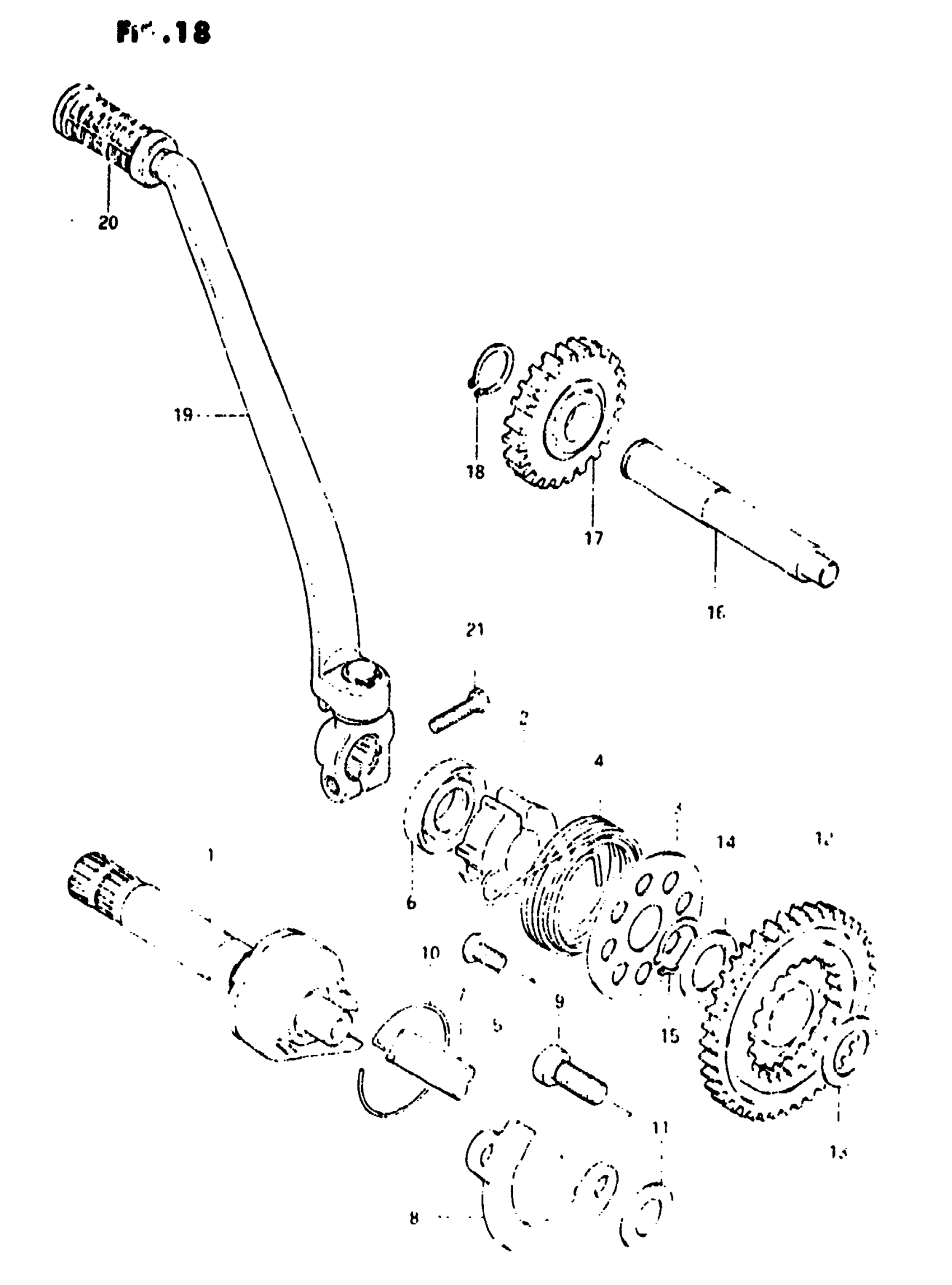

Suzuki SP500 (1982) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26210-37400

Unavailable

2

GUIDE, SPRING

26221-37400

Unavailable

3

HOLDER, SPRING

26222-37400

Unavailable

4

SPRING

09448-58001

Unavailable

5

SCREW

02142-06167

$1.49

6

OIL SEAL (20X37X7)

09283-20025

$5.64

7

POWL

26231-37400

Unavailable

8

RIFTER

26232-37400

Unavailable

9

STOPPER

26233-37401

Unavailable

10

SPRING

26234-37400

Unavailable

11

SHIM (16X28X1) This part replaces 08211-16281.

09181-16223

Unavailable

12

GEAR, DRIVE (NT:39)

26240-37400

Unavailable

13

WASHER, RH

08211-20301

$2.35

14

WASHER, 6TH DRIVE This part replaces 08211-22301.

09181-22167

$2.96

15

CIRCLIP, KICK START DRIVE GEAR This part replaces 08331-11209.

08331-3120A

$2.03

16

SHAFT, IDLE

26223-37400

Unavailable

17

GEAR (NT:24)

26260-37400

Unavailable

18

CIRCLIP

09380-17001

$1.98

19

LEVER ASSY, KICK STARTER | Includes Item(s) 20

26300-37401

Unavailable

20

RUBBER,KICK STA This part replaces 26352-16401.

26352-16402

$3.56

21

BOLT

09100-08134

$2.46
