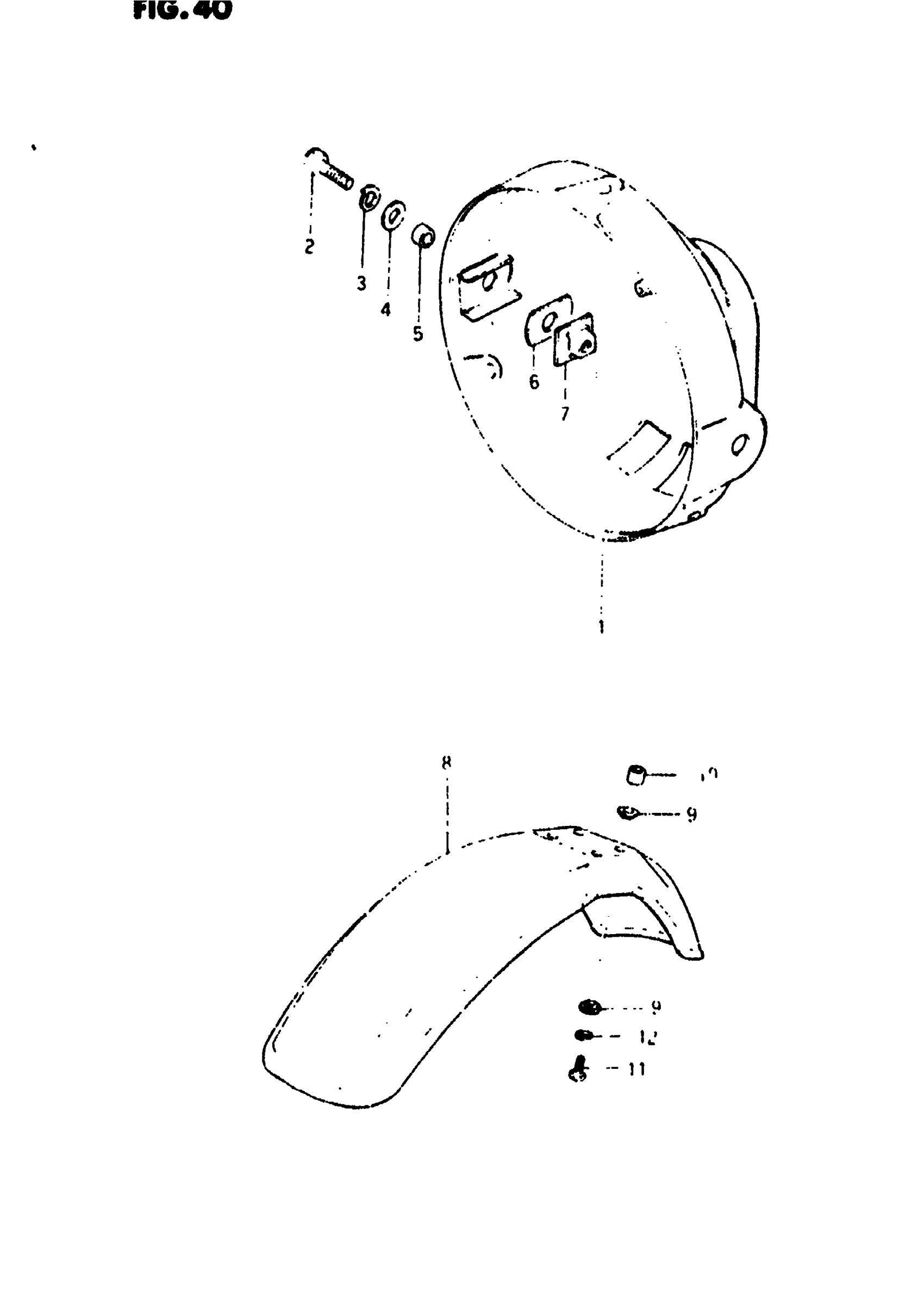

Suzuki SP500 (1982) HEADLAMP HOUSING - FRONT FENDER Diagram

#

Description

Price

1

HOUSING, HEADLAMP | BLACK This part replaces 51811-37400-291.

51811-37410-019

Unavailable

2

BOLT

01204-08257

$1.96

3

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

4

WASHER This part replaces 08322-11088.

08322-01087

$2.13

5

SPACER This part replaces 09180-08030.

09180-08187

$2.65

6

CUSHION This part replaces 09329-12002.

09329-12005

$2.32

7

PLATE

51860-45000

$4.43

8

NO DESCRIPTION AVAILABLE | RED This part replaces 53111-37400-07P.

53111-37401-13L

Unavailable

9

WASHER

09169-06016

$1.65

10

.SPACER (6.5X10X27.5) This part replaces 09180-06024.

09180-06298

$3.15

11

BOLT This part replaces 01107-06458.

01500-0645B

$2.57

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
