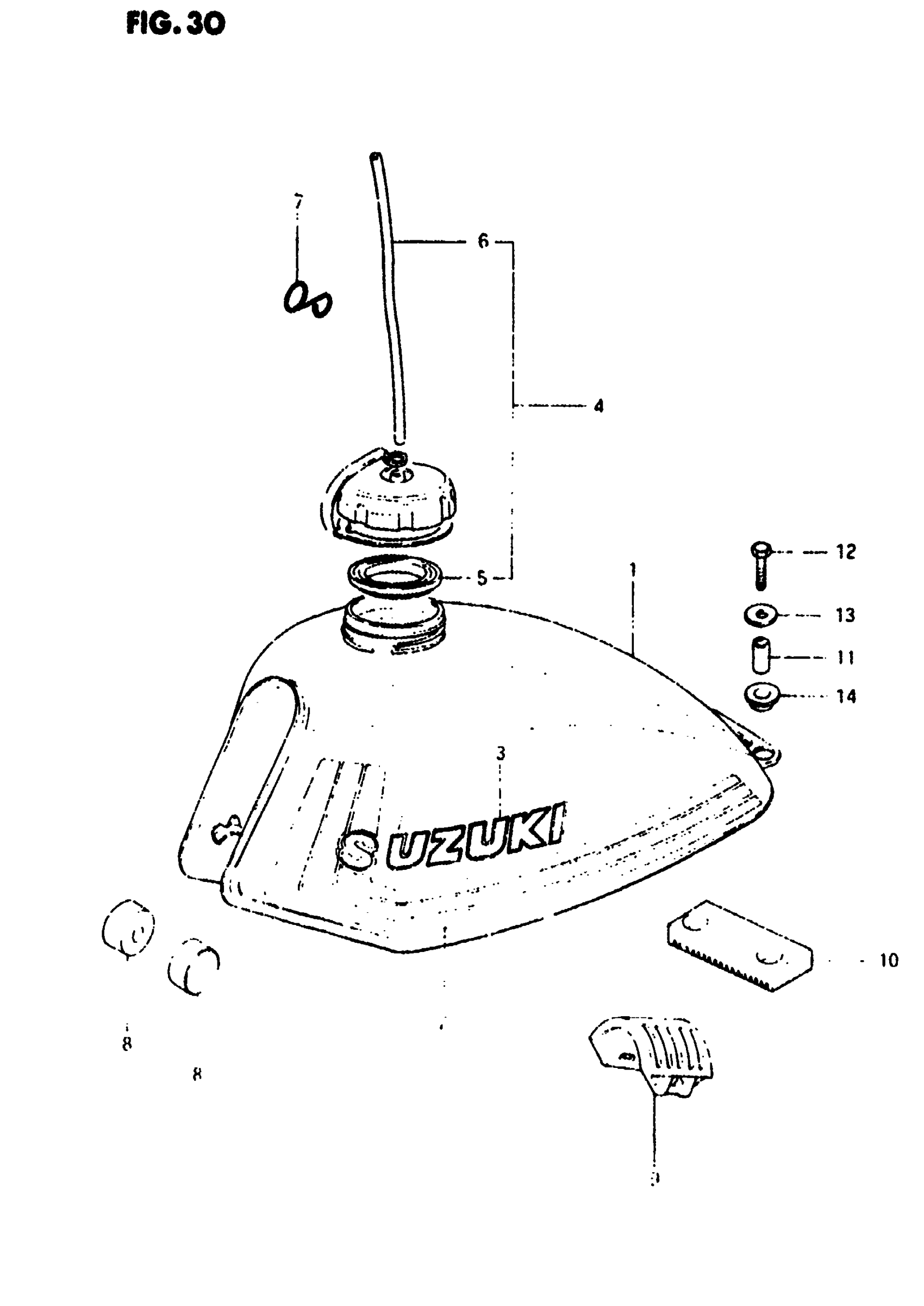

Suzuki SP500 (1982) FUEL TANK (MODEL X) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 44100-37400-07P.

44110-37211-13L

Unavailable

2

TAPE SET

68110-37400-79V

Unavailable

3

EMBLEM (WHITE)

68111-37200-064

Unavailable

4

CAP,FUEL TANK | Includes Item(s) 5 This part replaces 44200-46500.

44200-46501

$12.83

5

GASKET This part replaces 44248-40400.

44248-05211

$3.76

6

HOSE This part replaces 09343-05184.

09352-50005-00B

$13.93

7

CLAMP

58621-43001

Unavailable

8

CUSHION, FRONT

09329-10016

$3.10

9

CUSHION, UPPER

44541-40602

Unavailable

10

CUSHION, REAR

44541-37400

Unavailable

11

SPACER

09180-06093

Unavailable

12

BOLT This part replaces 01107-06408.

01500-0640B

$2.62

13

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

14

CUSHION

09320-10022

$2.71
