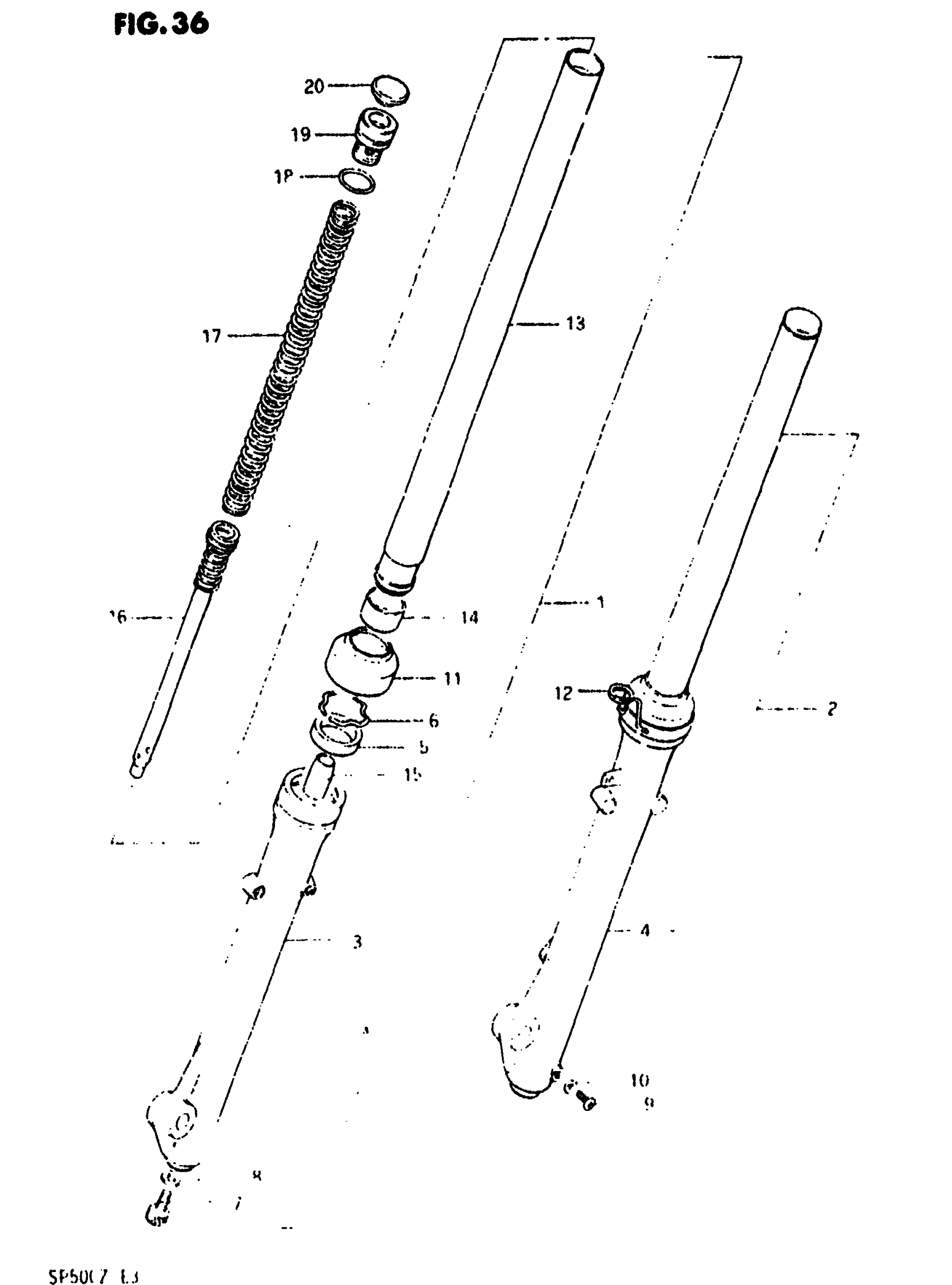

Suzuki SP500 (1982) FRONT FORK (MODEL X) Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-37410

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 20

51104-37410

Unavailable

3

OUTER TUBE RH

51130-37410

Unavailable

4

OUTER TUBE LH

51140-37410

Unavailable

5

FORK OIL SEAL This part replaces 51153-41211.

51153-16730

Unavailable

6

RING, STOPPER

51156-30400

Unavailable

7

BOLT

51147-16510

$4.34

8

GASKET

51148-41310

$2.26

9

SCREW This part replaces 02112-04088.

02112-04087

$1.49

10

GASKET

51183-03010

$2.07

11

DUST SEAL

51173-41110

Unavailable

12

BAND

51573-37200

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 51110-37410.

51110-37420

Unavailable

14

PISTON

51121-37410

Unavailable

15

PIECE, OIL LOCK This part replaces 51195-41210.

51195-49071

$21.43

16

CYLINDER

51146-30400

Unavailable

17

SPRING

51171-37410

Unavailable

18

O RING

51117-16310

Unavailable

19

CAP

51351-30520

Unavailable

20

CAP This part replaces 51189-32400.

51189-30520

$12.40
