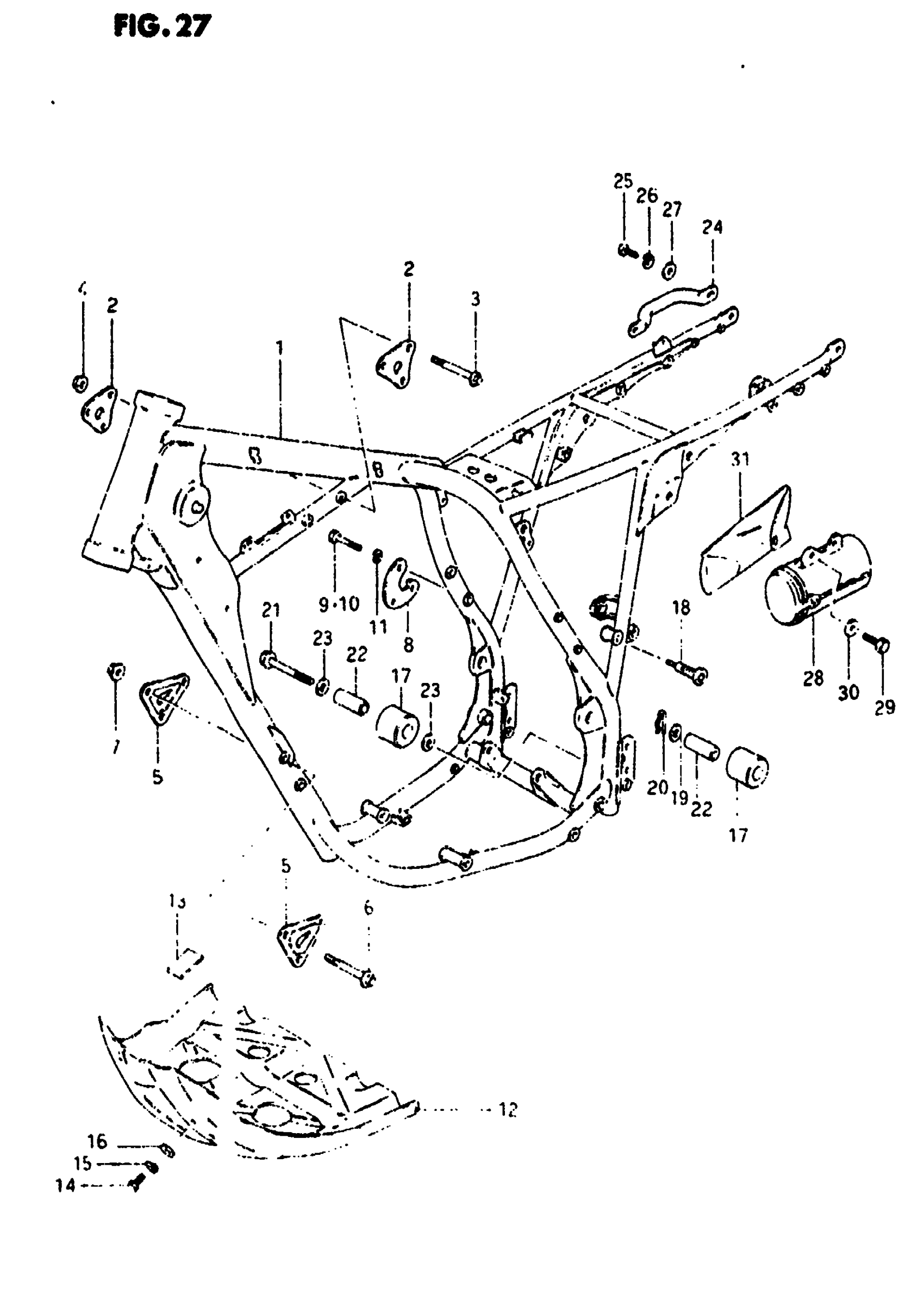

Suzuki SP500 (1982) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-37410-019

Unavailable

2

PLATE, UPPER

41991-37400

Unavailable

3

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

4

NUT This part replaces 08319-31088.

08319-3108A

$2.32

5

PLATE, FRONT

41993-37400

Unavailable

6

BOLT | MODEL X

09103-08037

$5.57

6

BOLT (8X67) | MODEL Z This part replaces 09103-08073.

09103-08037

$5.57

7

NUT This part replaces 08319-31088.

08319-3108A

$2.32

8

PLATE, REAR

41994-37200

Unavailable

9

BOLT This part replaces 01107-08608.

01500-0860B

$3.49

10

BOLT This part replaces 01107-08508.

01500-08507

$3.05

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

PROTECTOR, ENGINE

42511-37400

Unavailable

13

CUSHION

42521-37400

Unavailable

14

BOLT This part replaces 01107-06128.

01500-06127

$1.97

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

ROLLER, CHAIN

43911-14200

Unavailable

18

BOLT, UPPER | MODEL X This part replaces 43915-14000.

43915-14101

Unavailable

18

BOLT, UPPER | MODEL Z

43915-14101

Unavailable

19

WASHER

08212-10223

$2.07

20

.E-RING This part replaces 08332-11088.

08332-1108A

$1.78

21

BOLT, LOWER

09103-08043

$3.18

22

SPACER

43913-40400

Unavailable

23

WASHER This part replaces 09160-08035.

09160-08130

$2.03

24

GRIP, FRAME

41611-37400

Unavailable

25

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

26

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

27

WASHER This part replaces 08322-21088.

08322-01087

$2.13

28

HOLDER, TOOL

41550-37210

Unavailable

29

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

30

WASHER | MODEL X This part replaces 09160-06007.

09160-06084

$1.78

30

WASHER (6.5X18X1.6) | MODEL Z This part replaces 09160-06039.

09160-06109

$1.49

31

TOOL ASSY (CA) This part replaces 09800-01800.

09800-21021

Unavailable
