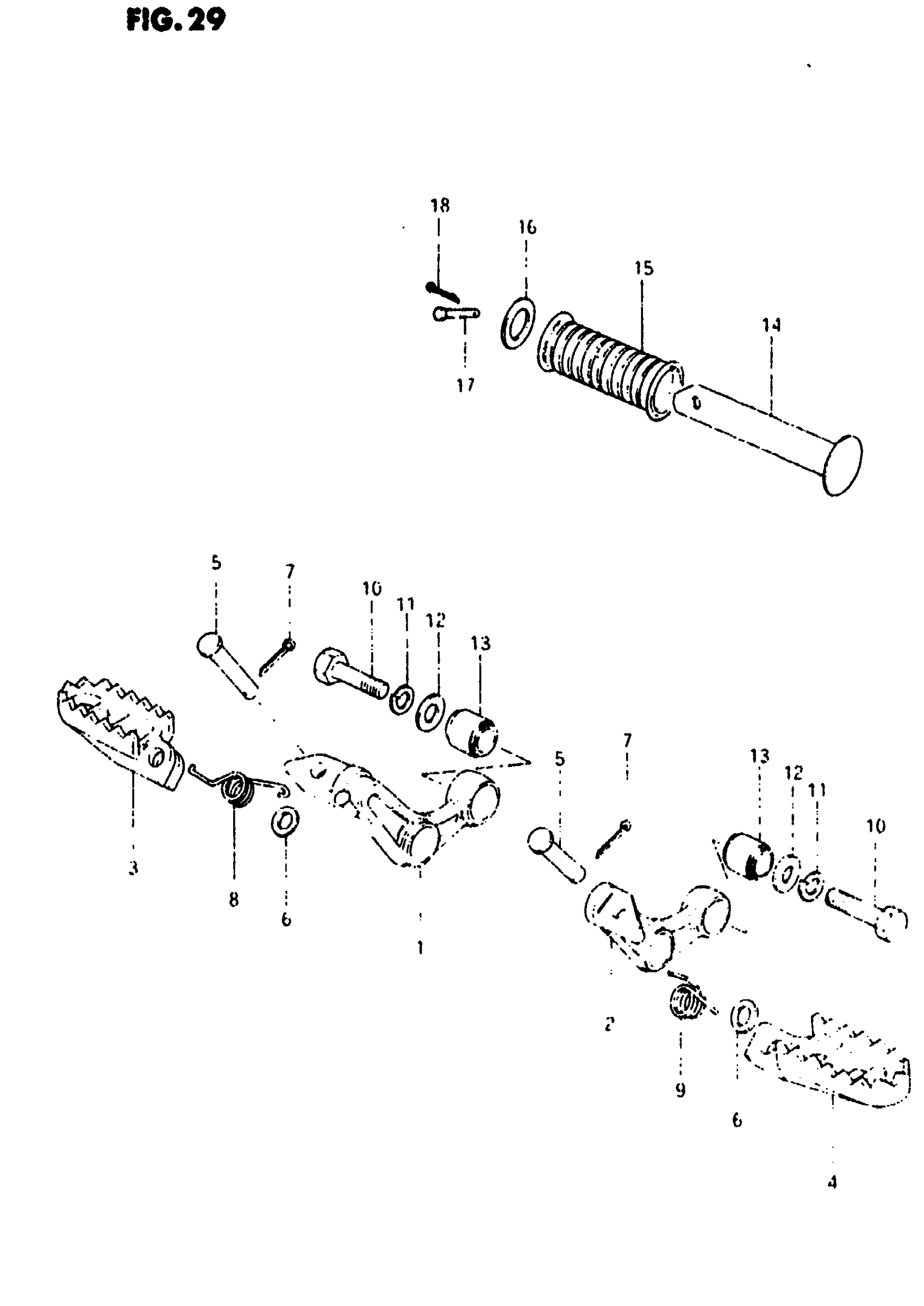

Suzuki SP500 (1982) FOOTREST Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 43510-37410.

43510-37410-019

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 43520-37410.

43520-37410-019

Unavailable

3

FOOTREST, FRONT RH (BLACK) This part replaces 43551-37201.

43551-37202-019

Unavailable

4

FOOTREST, FRONT LH (BLACK) This part replaces 43561-40401.

43561-40401-019

Unavailable

5

PIN This part replaces 09200-08035.

09200-08064

$6.13

6

WASHER This part replaces 08322-21088.

08322-01087

$2.13

7

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

8

SPRING, RH

09448-14019

Unavailable

9

SPRING, LH

09448-14022

Unavailable

10

BOLT 10X 40 This part replaces 09100-10117.

09100-10184

$3.16

11

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

12

WASHER This part replaces 09160-10013.

09160-10123

$2.12

13

BUSH

09319-10008

$7.40

14

BAR, PILLION FOOTREST | MODEL X

43610-03001

$6.52

14

BAR, PILLION FOOTREST | MODEL Z

43610-44000

Unavailable

15

RUBBER

43612-03001

$5.15

16

WASHER This part replaces 09160-19006.

09160-19024

$2.65

17

PIN

09200-06010

$1.72

18

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
