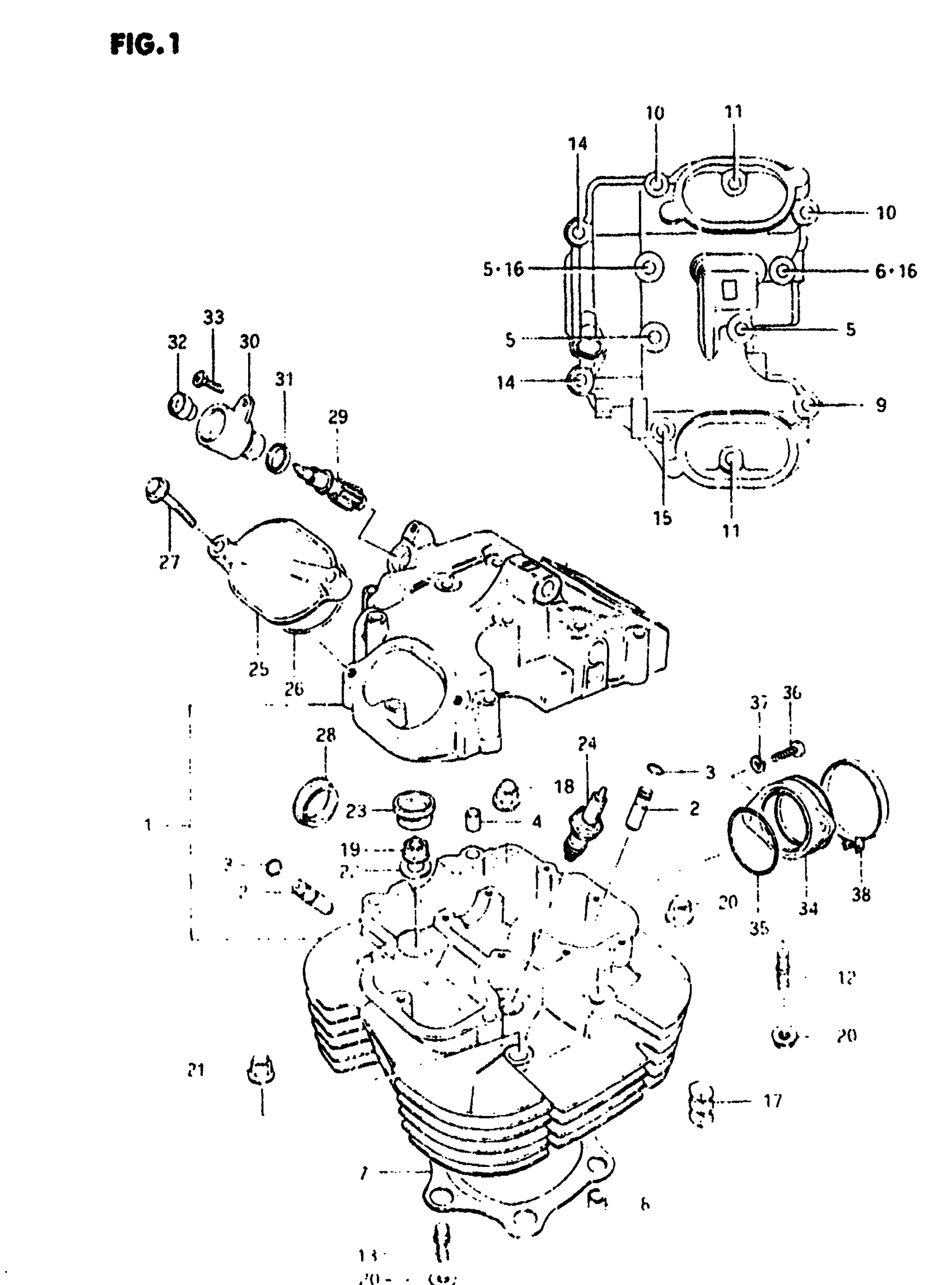

Suzuki SP500 (1982) CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY | Includes Item(s) 2 - 6

11100-37400

Unavailable

2

GUIDE, VALVE

11115-37470

$40.73

3

RING, VALVE GUIDE

09381-10003

$2.47

4

PIN

09206-08001

$1.78

5

BOLT This part replaces 01517-06608.

01550-06607

$4.17

6

BOLT CYL HEAD C This part replaces 09103-06040.

09103-06040-XC0

Unavailable

7

GASKET

11141-37400

Unavailable

8

PIN This part replaces 09206-13001.

04211-13189

$2.19

9

BOLT (6X50) This part replaces 01517-06508.

01550-06507

$3.40

10

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

11

BOLT This part replaces 01517-06308.

01550-06307

$2.69

12

BOLT

09108-08084

Unavailable

13

BOLT (M10x8)

09108-08083

Unavailable

14

BOLT (6X125) This part replaces 09103-06036.

09103-06033

$3.91

15

BOLT This part replaces 01517-06608.

01550-06607

$4.17

16

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

17

RUBBER PAD (N9->4) This part replaces 11251-41520.

11251-36500

$6.52

18

NUT This part replaces 09159-10035.

09159-10026

$6.20

19

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

20

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

21

NUT

09159-10026

$6.20

22

GASKET This part replaces 09168-10019.

09168-10017

$3.04

23

CAP, HEAD SEAL This part replaces 11145-37400.

11145-41B01

$12.54

24

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

$3.32

24

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

$5.18

25

CAP, INSPECTION

11175-37401

Unavailable

26

O RING

09280-60004

$3.76

27

BOLT This part replaces 01517-06258.

01550-06257

$2.30

28

PLUG, HEAD

09241-30004

$6.60

29

NO DESCRIPTION AVAILABLE This part replaces 26431-37400.

26431-37401

Unavailable

30

SLEEVE

26441-49000

$30.58

31

SEAL BAND

26451-45000

$5.05

32

OIL SEAL

09289-05002

$8.43

33

SCREW

09128-05101

$1.49

34

PIPE, INTAKE This part replaces 13110-37400.

13101-14A10

$45.89

35

O RING (D:2.4,ID:45.7) This part replaces 09280-46001.

09280-46002

$10.49

36

SCREW This part replaces 02112-06168.

02112-06167

$1.49

37

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

38

CLAMP

09402-58306

$4.77
