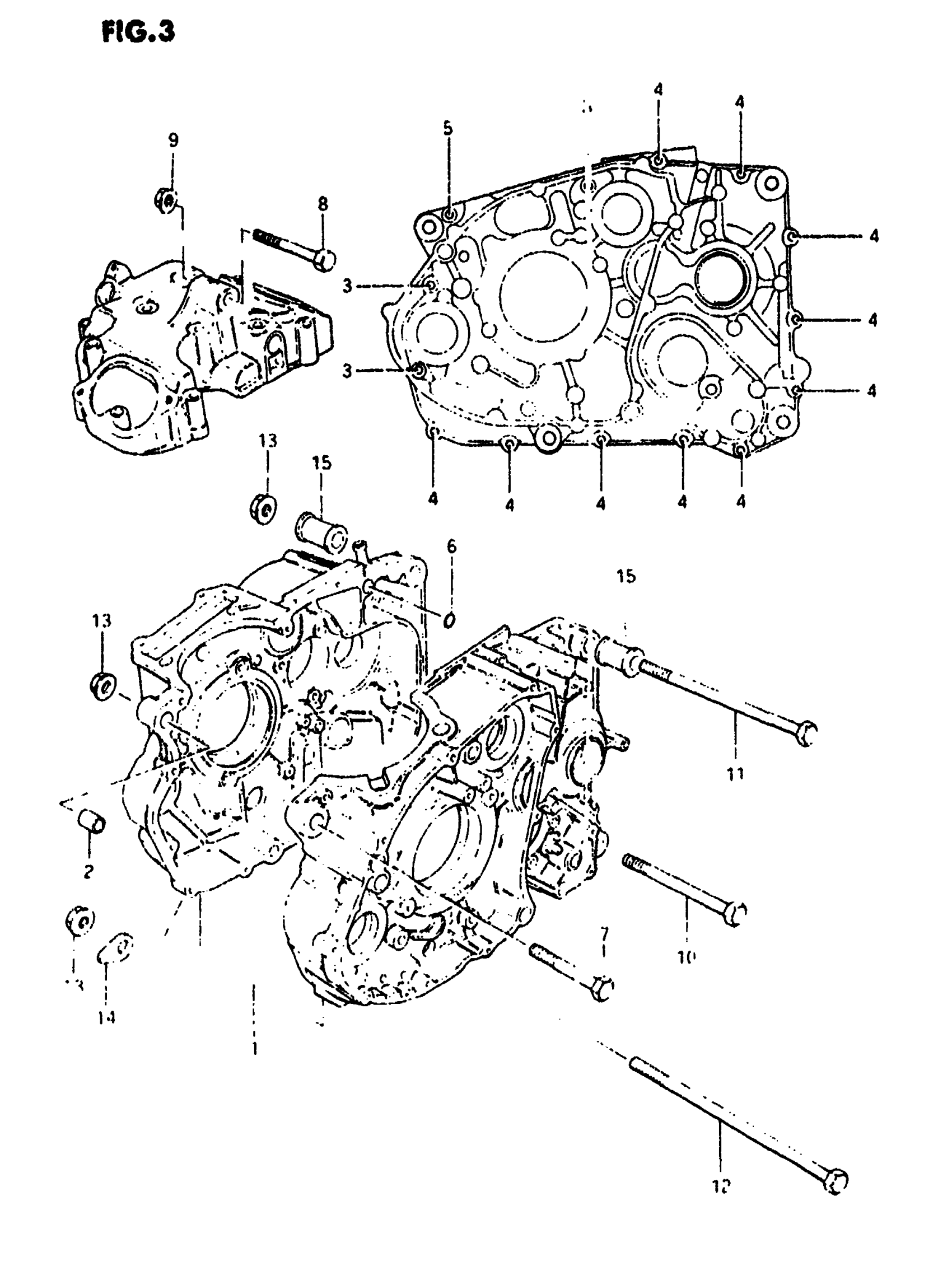

Suzuki SP500 (1982) CRANKCASE (MODEL X) Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 5 This part replaces 11300-37400.

11300-37410

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

SCREW This part replaces 02112-06608.

02112-06607

$2.57

4

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

5

SCREW This part replaces 02112-06308.

02112-06307

$1.97

6

.O RING (D:1.9,ID:8.6) This part replaces 09280-09004.

09280-09005

$3.70

7

BOLT (10X70)

09103-10033

$6.17

8

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

9

NUT This part replaces 08319-31088.

08319-3108A

$2.32

10

BOLT (10x120)

09103-10034

Unavailable

11

BOLT (10x180)

09103-10035

Unavailable

12

BOLT (10x235)

09103-10036

Unavailable

13

NUT This part replaces 08319-31108.

08319-31107

$2.73

14

SHIM (T:1.0) | (0~1)

09169-10011

Unavailable

14

SHIM (T:0.6) | (0~2)

09169-10012

Unavailable

15

SPACER (L:36)

11610-32400

Unavailable
