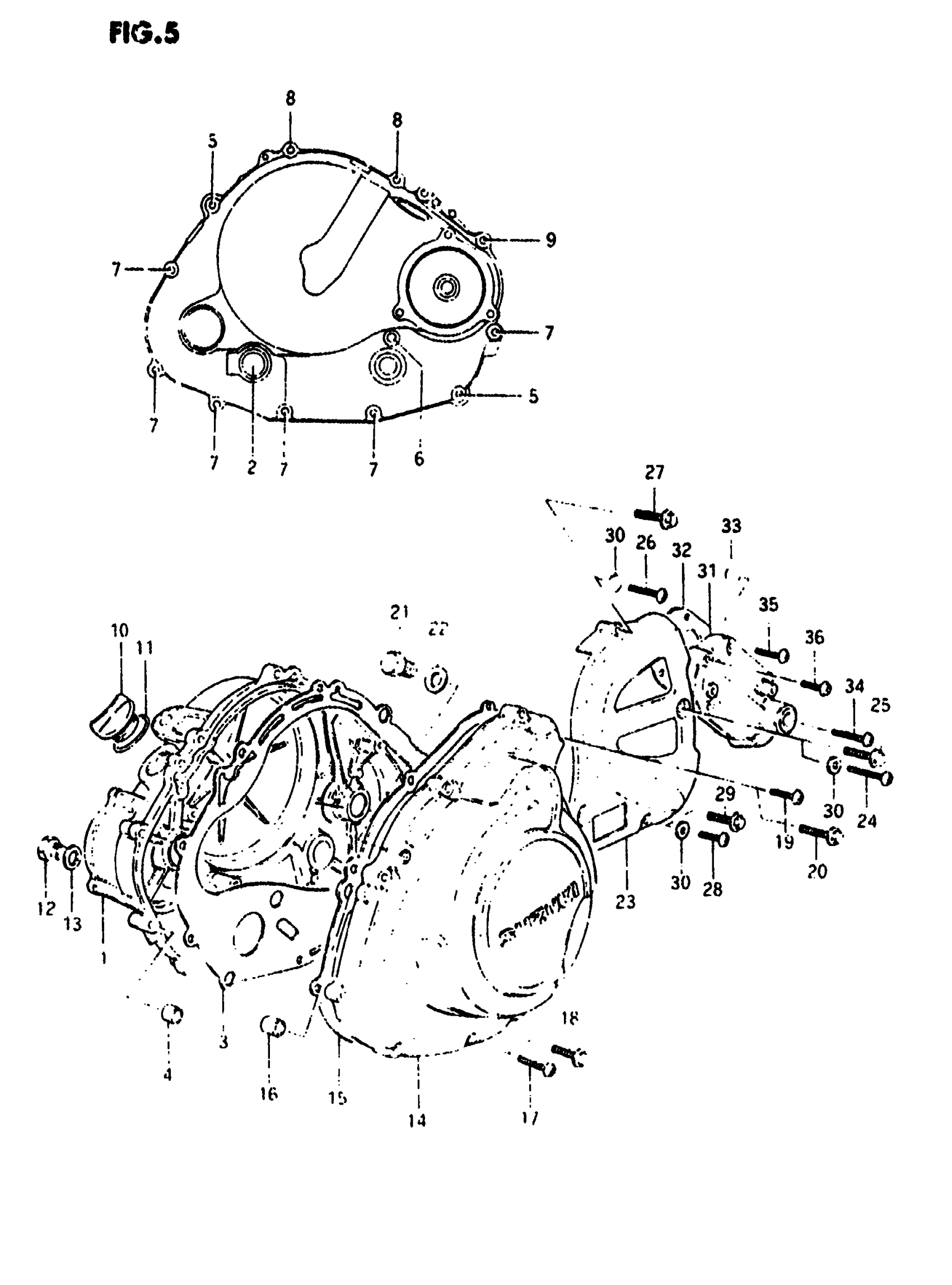

Suzuki SP500 (1982) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | FOR SCREW This part replaces 11340-37400.

11340-37401

Unavailable

1

COVER, CLUTCH | FOR BOLT; Includes Item(s) 2

11340-37401

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET,CL COVER This part replaces 11482-37400.

11482-37400-H17

Unavailable

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

5

BOLT This part replaces 01547-06508.

01547-06507

$2.41

6

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

6

BOLT This part replaces 01547-06408.

01547-06407

$2.32

7

SCREW This part replaces 02112-06358.

02112-06357

$1.78

7

BOLT This part replaces 01547-06358.

01547-06357

$2.03

8

SCREW This part replaces 02112-06258.

02112-06257

$1.78

8

BOLT This part replaces 01547-06258.

01547-06257

$2.03

9

SCREW (6X25)

09125-06035

$2.23

10

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

11

GASKET

09280-32005

$1.99

12

PLUG This part replaces 09247-14012.

09247-14026

$3.76

13

GASKET

09168-14004

$1.83

14

COVER, MAGNETO | ~E. NO. 101832, FOR SCREW This part replaces 11351-37400.

11351-37402

Unavailable

14

COVER, MAGNETO | E. NO. 101833~, FOR SCREW This part replaces 11351-37401.

11351-37402

Unavailable

14

COVER, MAGNETO | FOR BOLT

11351-37402

Unavailable

15

GASKET, MAGNETO INNER COVER This part replaces 11483-37400.

11483-12D10

$33.85

16

PIN This part replaces 09206-13001.

04211-13189

$2.19

17

SCREW This part replaces 02112-06308.

02112-06307

$1.97

18

BOLT This part replaces 01547-06308.

01547-06307

$2.03

19

SCREW This part replaces 02112-06258.

02112-06257

$1.78

20

BOLT This part replaces 01547-06258.

01547-06257

$2.03

21

PLUG, 1. D.C | E. NO. 101833~

09247-12103

$2.84

22

GASKET | E. NO. 101833~

09168-12003

$1.71

23

COVER, ENGINE SPROCKET | FOR SCREW

11301-37400

Unavailable

23

COVER, ENGINE SPROCKET | FOR BOLT

11361-37401

Unavailable

24

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

25

BOLT This part replaces 01547-06458.

01547-06457

$2.32

26

SCREW This part replaces 02112-06308.

02112-06307

$1.97

27

BOLT This part replaces 01547-06308.

01547-06307

$2.03

28

SCREW This part replaces 02112-06208.

02112-06207

$1.78

29

BOLT This part replaces 01547-06208.

01547-06207

$2.01

30

WASHER | FOR SCREW This part replaces 08322-21068.

08322-01067

$2.13

31

COVER, GEAR SHIFT

11371-37400

Unavailable

32

NO DESCRIPTION AVAILABLE This part replaces 11485-37400.

11485-37400-H17

Unavailable

33

PIN

04211-09129

$1.65

34

SCREW This part replaces 02112-06358.

02112-06357

$1.78

35

SCREW This part replaces 02112-06308.

02112-06307

$1.97

36

SCREW This part replaces 02112-06208.

02112-06207

$1.78
