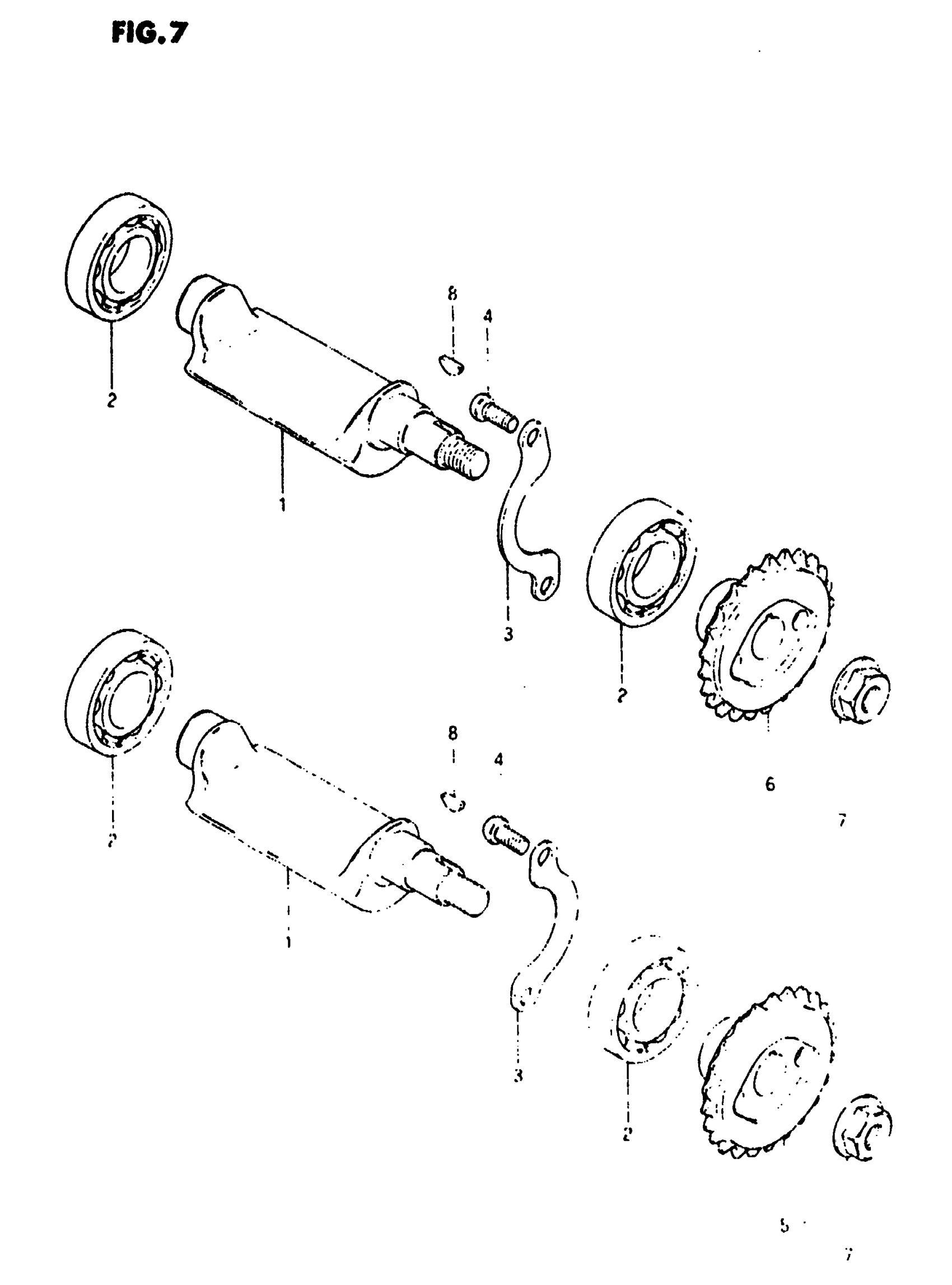

Suzuki SP500 (1982) CRANK BALANCER Diagram

#

Description

Price

1

BALANCER, CRANK

12651-37400

Unavailable

2

BEARING (20X42X12) This part replaces 09262-20057.

09262-20106

$29.35

3

PLATE, BEARING

12659-37400

Unavailable

4

SCREW This part replaces 02112-06128.

02112-06127

$1.84

5

SPROCKET, FRONT (NT:25) This part replaces 12665-37452.

12665-37453

Unavailable

6

SPROCKET, REAR (NT:25) This part replaces 12675-37452.

12675-37453

Unavailable

7

NUT This part replaces 09159-10014.

09159-10046-XC0

$2.03

8

KEY

08341-31039

$1.89
