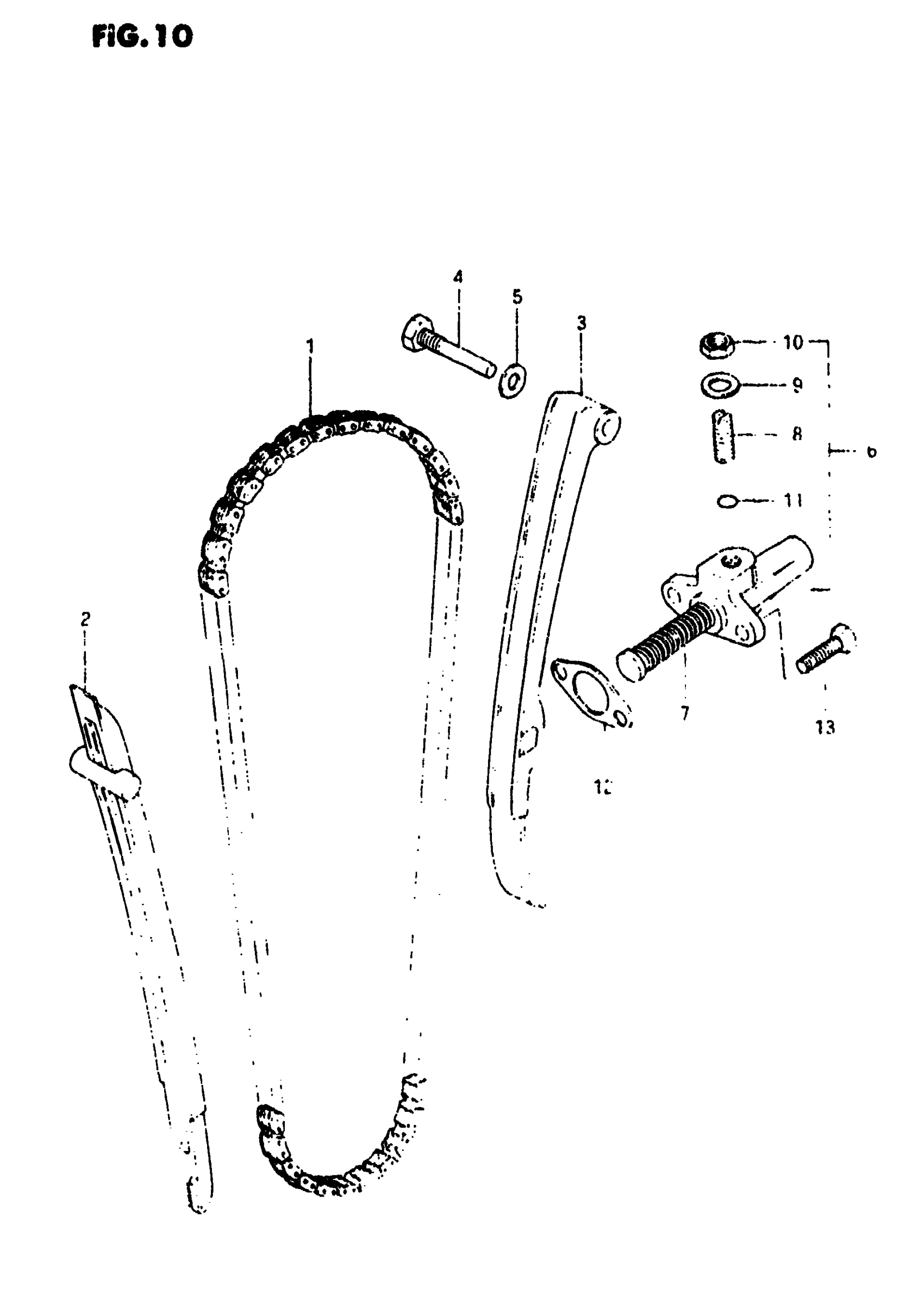

Suzuki SP500 (1982) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE | 124LE

12760-37400

Unavailable

2

GUIDE, CAM CHAIN

12771-37400

$59.07

3

TENSIONER,CAM C This part replaces 12811-37400.

12811-37402

$49.38

4

BOLT

12812-32410

$4.52

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

6

ADJUSTER ASSY, TENSIONER | Includes Item(s) 7 - 11 This part replaces 12830-32420.

12830-32440

Unavailable

7

SPRING

09440-11009

Unavailable

8

SCREW

12838-45001

$8.42

9

WASHER This part replaces 08322-11088.

08322-01087

$2.13

10

NUT This part replaces 08310-12088.

08310-00087

$2.13

11

.O RING (D:1.9,ID:5.7) This part replaces 09280-06003.

09280-06005

$1.49

12

.GASKET, TENSIONER ADJUSTER This part replaces 12837-32400.

12837-32410

$2.74

13

BOLT This part replaces 01107-06208.

01500-06207

$2.28
