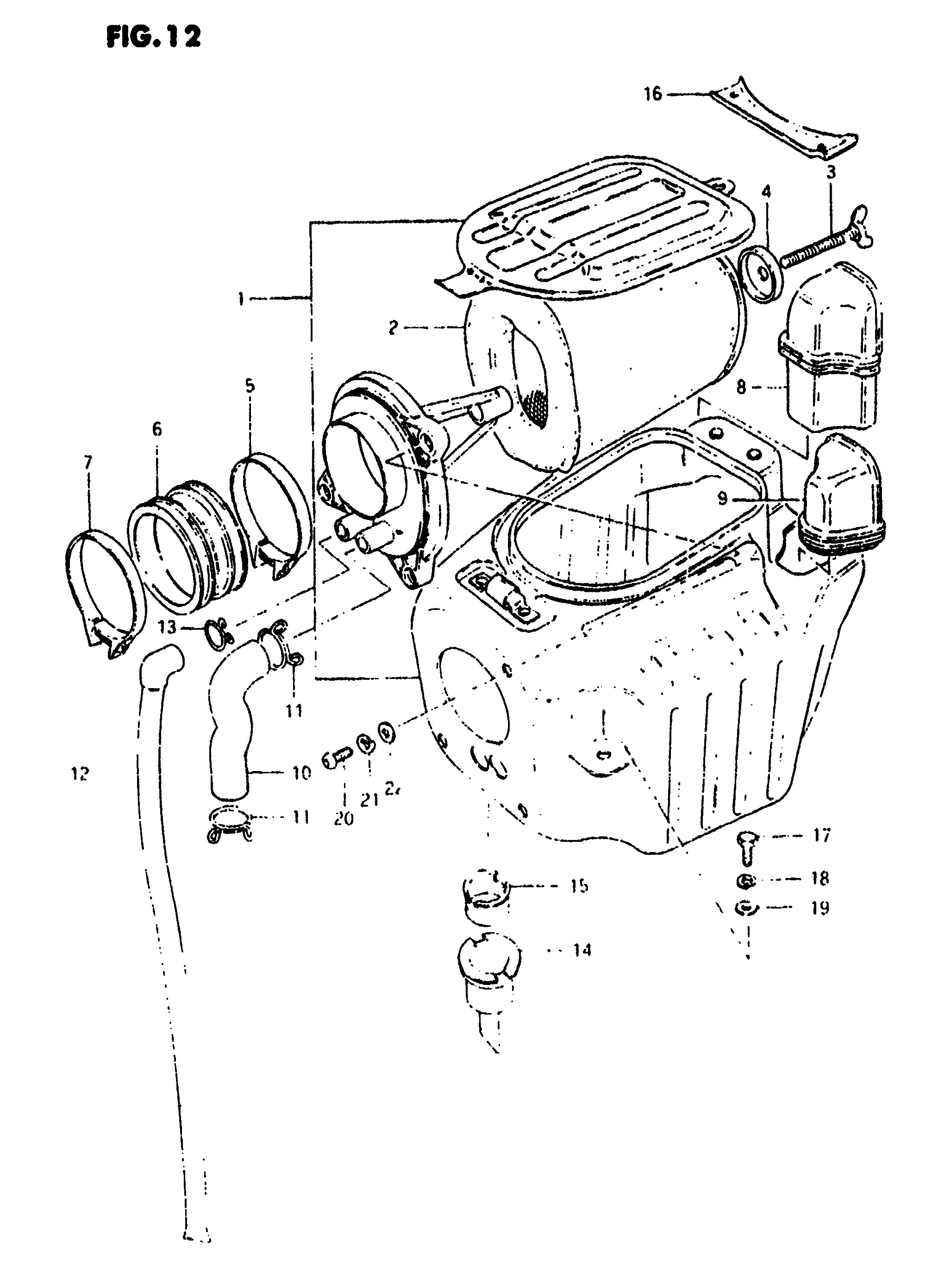

Suzuki SP500 (1982) AIR CLEANER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 16 This part replaces 13700-37420.

13700-37421

Unavailable

2

FILTER

13781-37400

Unavailable

3

WING BOLT

13911-37400

Unavailable

4

WASHER This part replaces 13792-40400.

13792-13A01

$4.34

5

CLAMP This part replaces 09402-62306.

09402-62208

$6.58

6

HOSE, OUTLET

13881-37400

Unavailable

7

CLAMP This part replaces 09402-64306.

09402-64203

$6.58

8

HOSE, INLET RH

13891-37400

Unavailable

9

HOSE, INLET LH

13892-37400

Unavailable

10

HOSE, BREATHER

13851-37400

Unavailable

11

CLIP

09401-14301

$2.35

12

TUBE,DRAIN This part replaces 13870-00100.

13870-21629

$22.90

13

CLIP

09401-14301

$2.35

14

HOSE, DRAIN (2)

13873-00090

Unavailable

15

STOPPER

13979-37400

Unavailable

16

BRACKET

13764-37400

Unavailable

17

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

WASHER This part replaces 08322-21068.

08322-01067

$2.13

20

SCREW This part replaces 02112-06128.

02112-06127

$1.84

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

22

WASHER This part replaces 08322-21068.

08322-01067

$2.13
