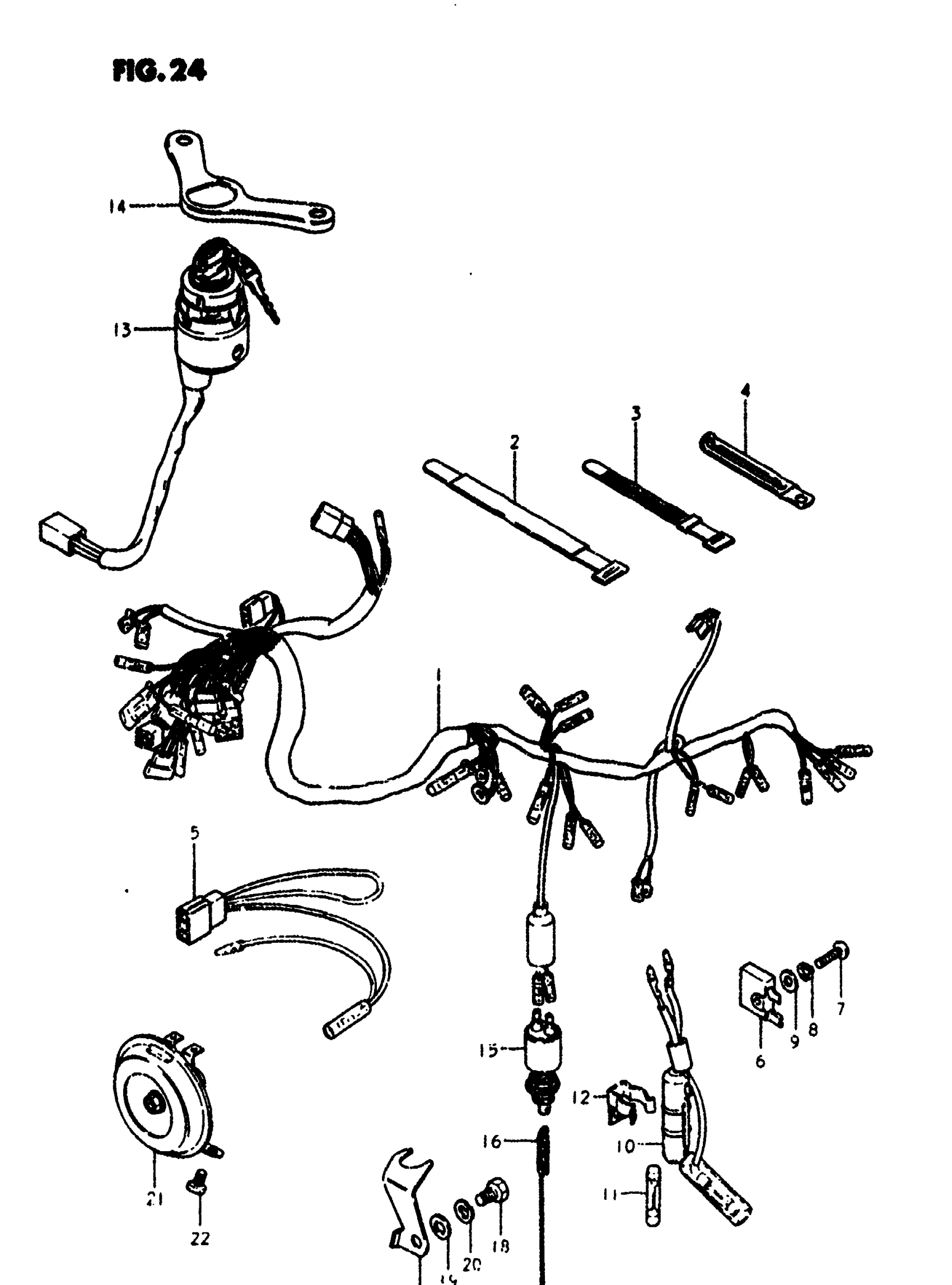

Suzuki SP400 (1980) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS

36610-37130

Unavailable

2

CLAMP This part replaces 09407-11302.

09407-18302

$2.28

2

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

3

CLAMP

09407-12402

$3.04

4

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

5

LEAD WIRE, DC LIGHTING

36853-37230

Unavailable

6

DIODE This part replaces 32800-19063.

32800-16A00

$23.07

7

SCREW This part replaces 02112-05208.

02112-05207

$1.97

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

9

WASHER This part replaces 08322-21058.

08322-01057

$2.13

10

FUSE CASE ASSY | Includes Item(s) 11 This part replaces 36740-15010.

36740-15011

$9.38

11

FUSE (15A)

09481-15001

$2.06

12

HOLDER

36791-25001

Unavailable

13

SWITCH ASSY, IGNITION This part replaces 37110-25318.

37110-25319

$97.62

14

BRACKET, IGNITION SWITCH This part replaces 37115-48000.

37115-36001

Unavailable

15

SWITCH ASSY, STOP LAMP

37610-53011

$30.75

16

SPRING

09443-06019

$3.42

17

BRACKET

43251-32400

Unavailable

18

BOLT This part replaces 01107-06108.

01500-06107

$2.06

19

WASHER This part replaces 08322-21068.

08322-01067

$2.13

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

HORN ASSY This part replaces 38500-32470.

38500-32472

Unavailable

22

BOLT This part replaces 01107-06108.

01500-06107

$2.06
