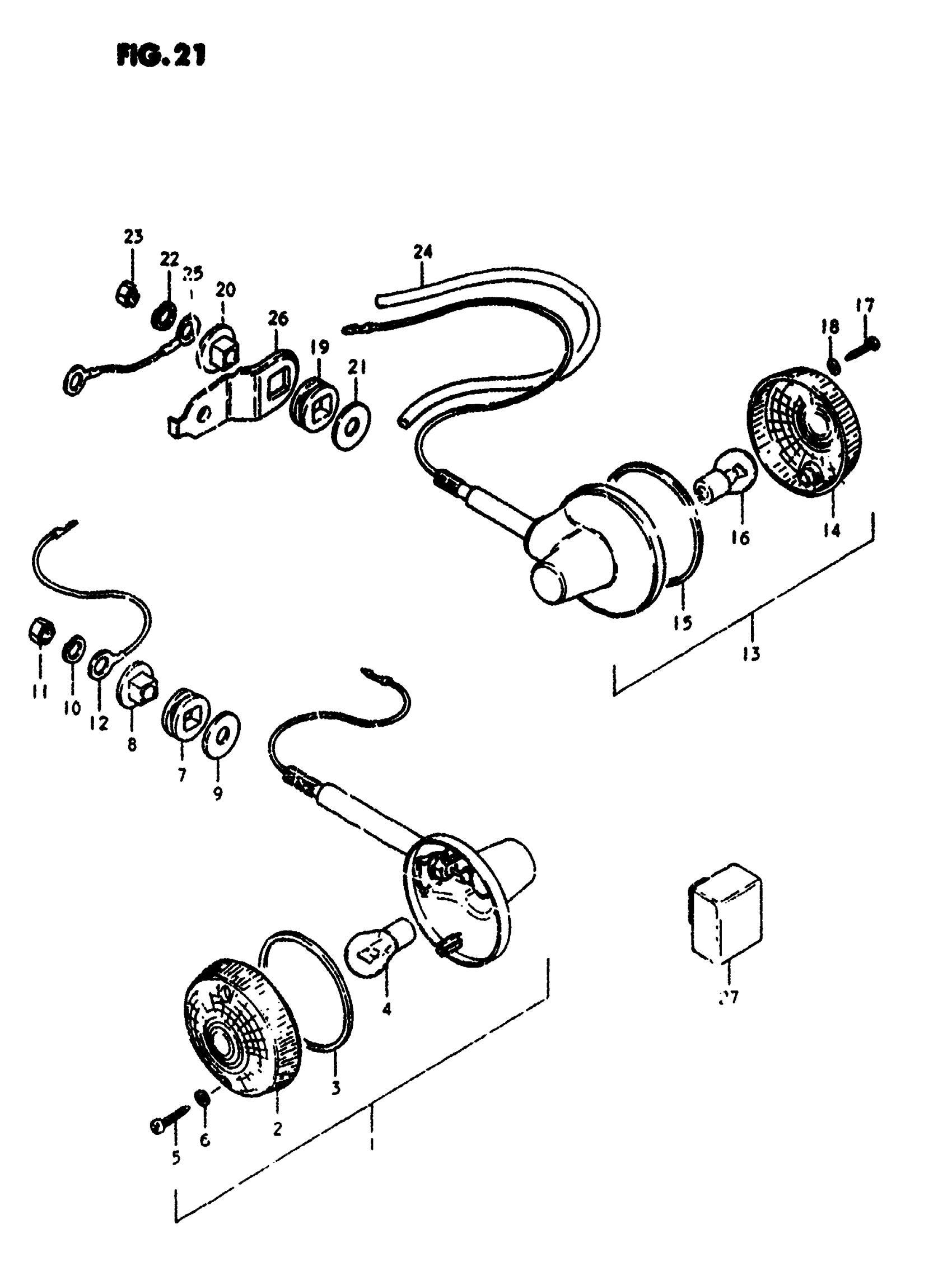

Suzuki SP400 (1980) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TR | Includes Item(s) 2 - 6 This part replaces 35601-30531.

35601-39370-999

Unavailable

2

LENS

35612-28620

$8.98

3

GASKET

35613-28620

$4.55

4

BULB (6V,21CP)

09471-06011

Unavailable

5

SCREW This part replaces 35623-47610.

03211-04207

$1.49

6

GASKET

35627-43010

$2.28

7

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

8

SPACER This part replaces 35695-32400.

35695-32401

$4.52

9

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

10

LOCK WASHER This part replaces 08321-21106.

08321-0110A

$1.84

11

NUT This part replaces 08310-11108.

08310-00107

$2.19

12

LEAD WIRE, EARTH

36660-33000

$4.52

13

LAMP RR TURN SI | Includes Item(s) 14 - 18 This part replaces 35603-32431.

35603-32411-999

Unavailable

14

LENS

35612-28620

$8.98

15

GASKET

35613-28620

$4.55

16

BULB (6V, 21CP)

09471-06011

Unavailable

17

SCREW This part replaces 35623-47610.

03211-04207

$1.49

18

GASKET

35627-43010

$2.28

19

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

20

SPACER This part replaces 35695-32400.

35695-32401

$4.52

21

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

22

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

23

NUT This part replaces 08310-11108.

08310-00107

$2.19

24

PROTECTOR, LEAD WIRE

35693-32400

Unavailable

25

LEAD WIRE, EARTH

36862-44000

$5.50

26

BRACKET, REAR

41580-32401

Unavailable

27

RELAY ASSY,TRN This part replaces 38610-48600.

38610-05X50

Unavailable
