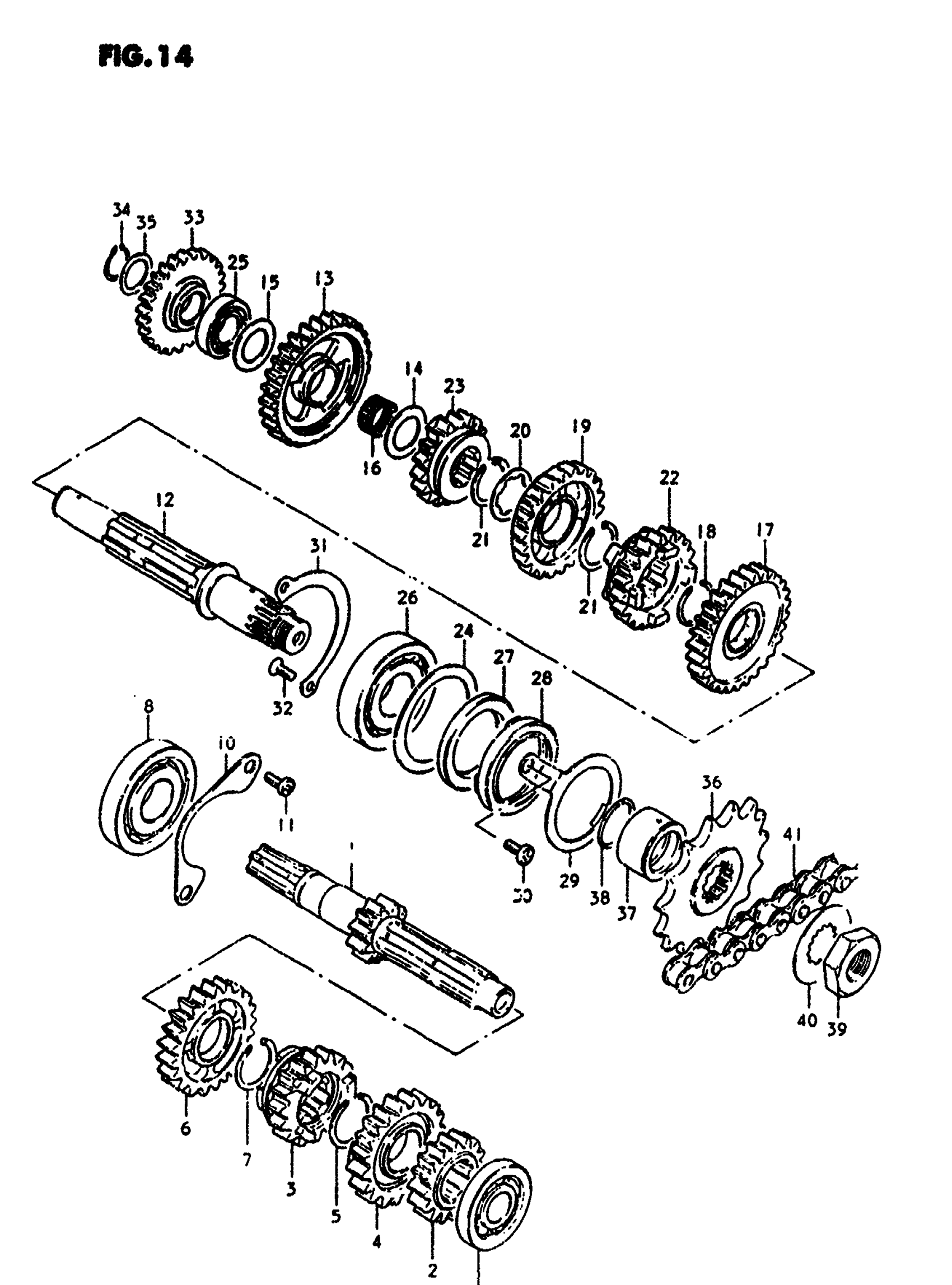

Suzuki SP400 (1980) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:12)

24120-32410

Unavailable

2

GEAR, 2ND DRIVE (NT:16) This part replaces 24221-32410.

24221-32412

Unavailable

3

GEAR, 3RD DRIVE (NT:17)

24231-32401

Unavailable

4

GEAR, 4TH DRIVE (NT:19)

24241-37100

Unavailable

5

CIRCLIP

09380-22006

$3.10

6

GEAR, 5TH DRIVE (NT:22) This part replaces 24251-32401.

24251-32420

Unavailable

7

CIRCLIP

09380-22006

$3.10

8

BEARING (22X56X16) This part replaces 09262-22014.

09262-22028

$77.48

9

BEARING (17X40X12) This part replaces 09262-17018.

09262-17027

$35.28

10

HOLDER, BEARING

24741-32400

Unavailable

11

SCREW This part replaces 02112-06128.

02112-06127

$1.84

12

DRIVESHAFT

24130-32403

Unavailable

13

GEAR, 1ST DRIVEN (NT:28) This part replaces 24311-32410.

24311-32411

Unavailable

14

WASHER, 1ST DRIVEN This part replaces 08211-17281.

09181-17195

$3.07

15

WASHER

08211-17363

Unavailable

16

BEARING

09263-17004

$12.03

17

GEAR, 2ND DRIVEN (NT:27) This part replaces 24320-32410.

24320-32411

Unavailable

18

CIRCLIP

09380-22006

$3.10

19

GEAR, 3RD DRIVEN (NT:22)

24330-32400

Unavailable

20

WASHER

09167-22011

$3.23

21

CIRCLIP

09380-22006

$3.10

22

GEAR, 4TH DRIVEN (NT:20)

24341-37100

Unavailable

23

GEAR, 5TH DRIVEN (NT:18)

24351-32400

Unavailable

24

WASHER

09160-40003

Unavailable

25

BEARING, RH

09264-17001

$43.02

26

BEARING, LH

09262-22013

$73.18

27

OIL SEAL

09282-30002

Unavailable

28

OIL SEAL

09283-30025

Unavailable

29

HOLDER, OIL SEAL

24751-32400

Unavailable

30

SCREW This part replaces 02112-06128.

02112-06127

$1.84

31

HOLDER, BEARING

24752-32400

Unavailable

32

SCREW This part replaces 02122-06128.

02122-06127

$1.84

33

GEAR, KICK IDLE (NT:25)

26260-32404

Unavailable

34

CIRCLIP

09380-17001

$1.98

35

WASHER

08211-17241

$2.54

36

SPROCKET (NT:15)

27511-32401

Unavailable

37

SPACER

27531-32400

Unavailable

38

O RING (D:2.5,ID:21)

09280-21008

$1.91

39

NUT

09140-18008

$6.00

40

WASHER

09167-22012

$1.54

41

CHAIN,DRIVE ASS This part replaces 27600-37332.

27600-46K00-116

$167.95
