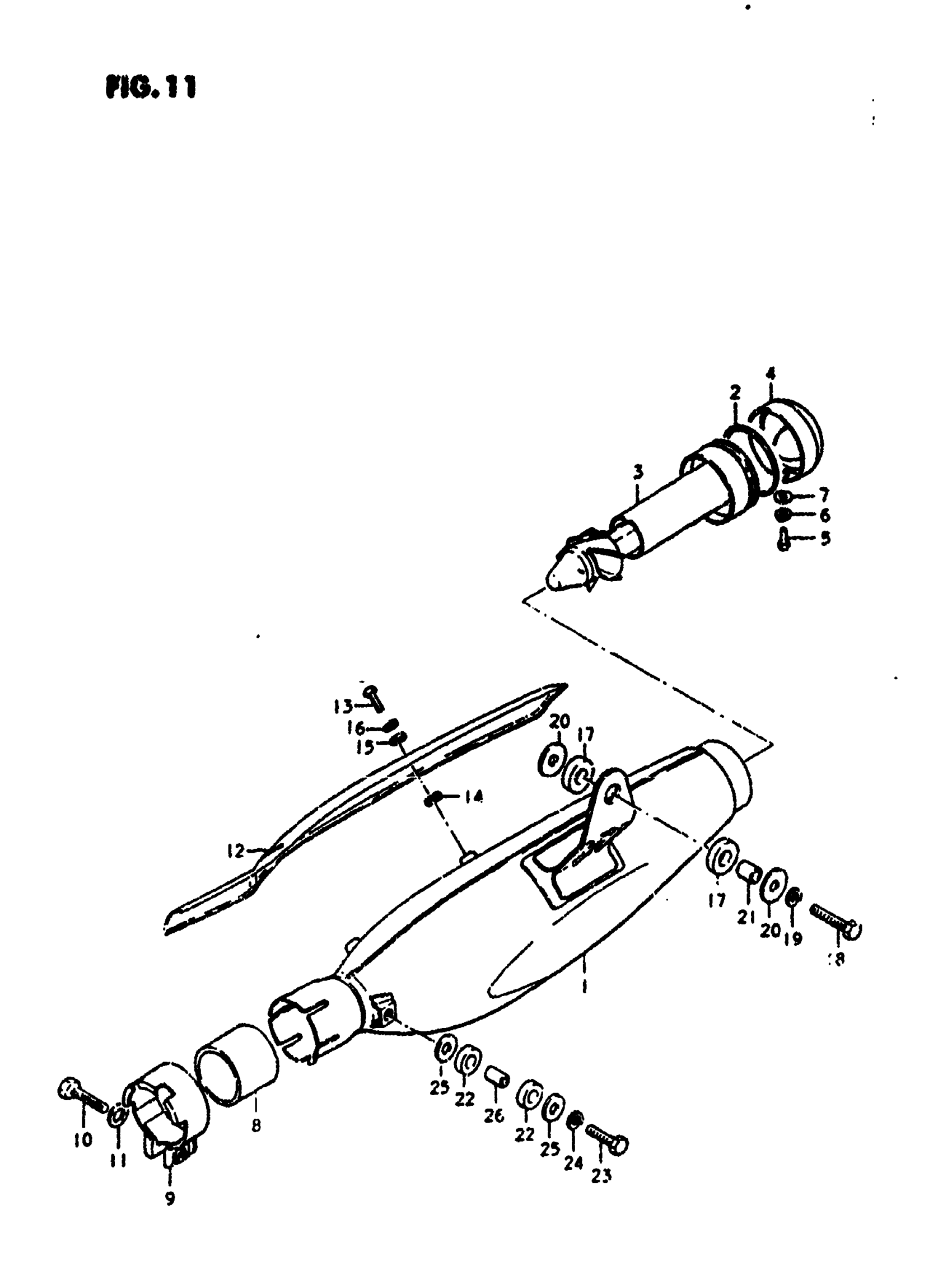

Suzuki SP400 (1980) SECOND MUFFLER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 14303-32400.

14303-32400-H01

Unavailable

2

O RING

09280-55001

$5.52

3

TUBE, CLEAN OUT

14850-30510

Unavailable

4

COVER, TALL

14649-30520

Unavailable

5

SCREW

09128-06013

$1.49

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

WASHER This part replaces 08322-21088.

08322-01087

$2.13

8

CONNECTOR,MUFFL This part replaces 14771-32400.

14771-38200-H17

Unavailable

9

CLAMP

14459-32400

Unavailable

10

BOLT This part replaces 09100-08148.

01500-0835B

$3.04

11

WASHER This part replaces 08322-11088.

08322-01087

$2.13

12

COVER, 2ND MUFFLER

14782-32400

Unavailable

13

SCREW This part replaces 02112-06128.

02112-06127

$1.84

14

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.12

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

CUSHION

09320-14009

Unavailable

18

BOLT This part replaces 01107-08308.

01500-08307

$3.04

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

21

SPACER

09180-08076

Unavailable

22

CUSHION This part replaces 09320-14006.

14761-03450

$1.80

23

BOLT This part replaces 09100-08072.

01500-0820A

$2.28

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

25

WASHER (8.5X26X1.6) This part replaces 09160-08005.

09160-08134

$2.03

26

SPACER,8.5X14X8 This part replaces 09180-08077.

09180-08198

Unavailable
