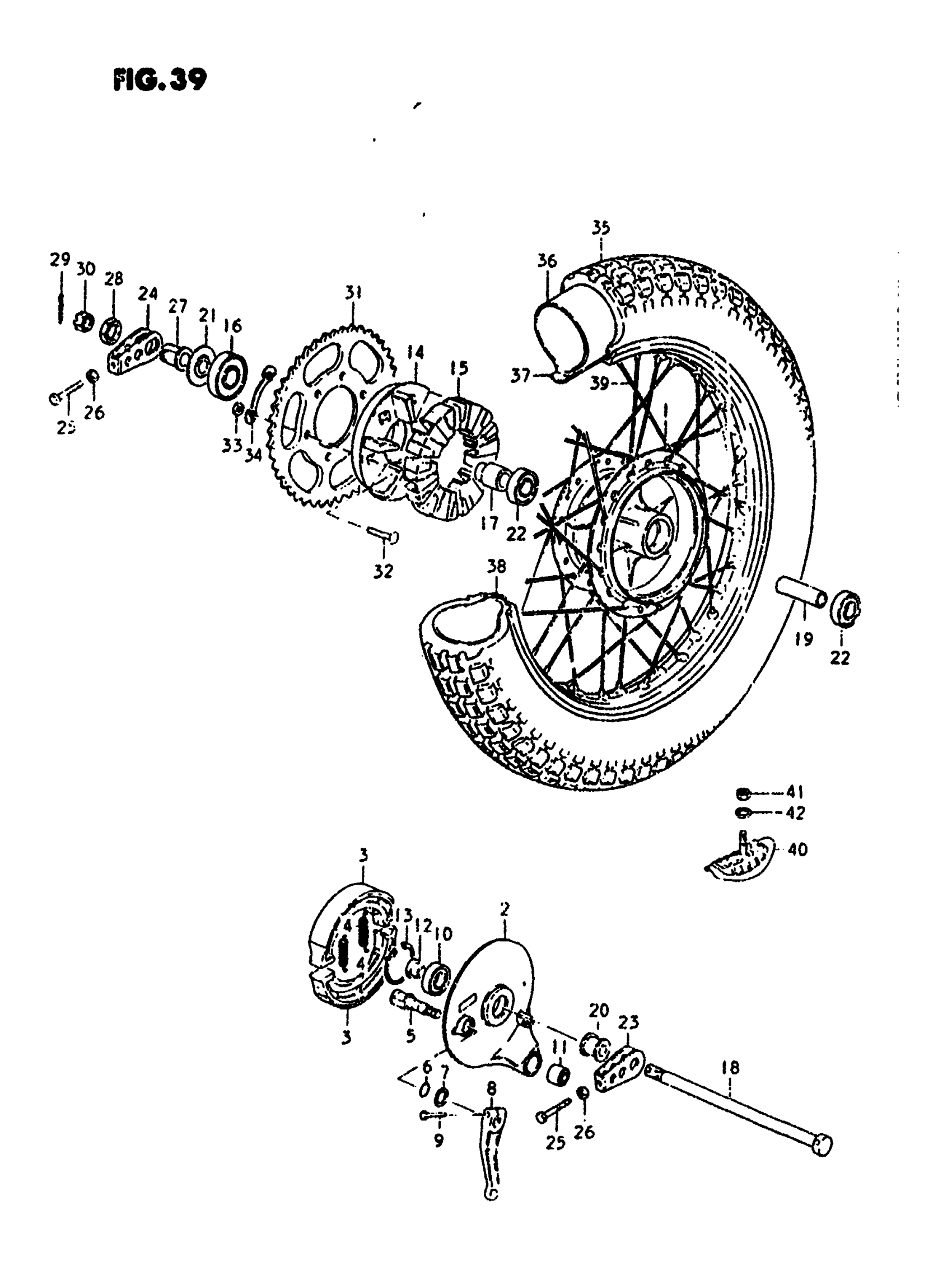

Suzuki SP400 (1980) REAR WHEEL Diagram

#

Description
Price

1

HUB

64110-32420

Unavailable

2

PANEL

64210-32421

Unavailable

3

SHOE SET, REAR BRAKE This part replaces 54410-32400.

64400-02830

$55.17

4

SPRING

55420-41100

Unavailable

5

CAM, REAR BRAKE This part replaces 54440-08003.

54440-08004

$27.62

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

7

WASHER This part replaces 09160-15001.

09160-15048

$2.56

8

LEVER, BRAKE CAM

64451-32400

Unavailable

9

BOLT This part replaces 01107-06258.

01500-06257

$1.97

10

BEARING, RH This part replaces 08123-60047.

08133-60047

$25.82

11

BUSHING

09319-10008

$7.40

12

SPACER

64213-32400

Unavailable

13

CIRCLIP This part replaces 08331-41428.

08331-41429

$2.41

14

DRUM, SPROCKET MOUNTING

64611-32420

Unavailable

15

CUSHION, HUB

64650-32400

Unavailable

16

BEARING This part replaces 08123-63047.

08123-6304B

$24.07

17

HOLDER, SPROCKET

64733-32400

Unavailable

18

AXLE, REAR

64711-16500

Unavailable

19

SPACER

09180-15043

Unavailable

20

SPACER, RH

64741-32400

Unavailable

21

SPACER, LH

64750-32400

Unavailable

22

BEARING, WHEEL RH This part replaces 08143-63027.

08153-63027

$25.35

23

ADJUSTER, CHAIN RH

61410-32400

Unavailable

24

ADJUSTER, CHAIN LH

61410-41100

Unavailable

25

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

26

NUT This part replaces 08310-12088.

08310-00087

$2.13

27

SPACER, CHAIN ADJUSTER LH

64791-41100

Unavailable

28

NUT

09140-22003

Unavailable

29

PIN This part replaces 04111-30408.

04111-3040A

$1.59

30

NUT

09141-14001

$4.60

31

SPROCKET, REAR (NT:42 AL) This part replaces 64511-32400.

64511-32401

Unavailable

31

SPROCKET, REAR (NT:41) | OPT

64511-32410

Unavailable

31

NO DESCRIPTION AVAILABLE | OPT This part replaces 64511-32420.

64511-32421

Unavailable

32

BOLT

09105-08001

$2.06

33

NUT This part replaces 08310-12088.

08310-00087

$2.13

34

WASHER

09169-08011

$2.16

35

TIRE (400-18)

65100-32410

Unavailable

36

TUBE, INNER

65200-49015

Unavailable

37

IN TUBE PROTECT This part replaces 65261-15010.

55261-26F10

$4.39

38

RIM (1.85Bx18)

65311-30600

Unavailable

39

SPOKE ASSY, REAR

65320-16520

Unavailable

40

STOPPER, BEAD This part replaces 65270-30001.

65270-43D00

$58.75

41

NUT This part replaces 08310-12088.

08310-00087

$2.13

42

WASHER This part replaces 08322-11088.

08322-01087

$2.13
