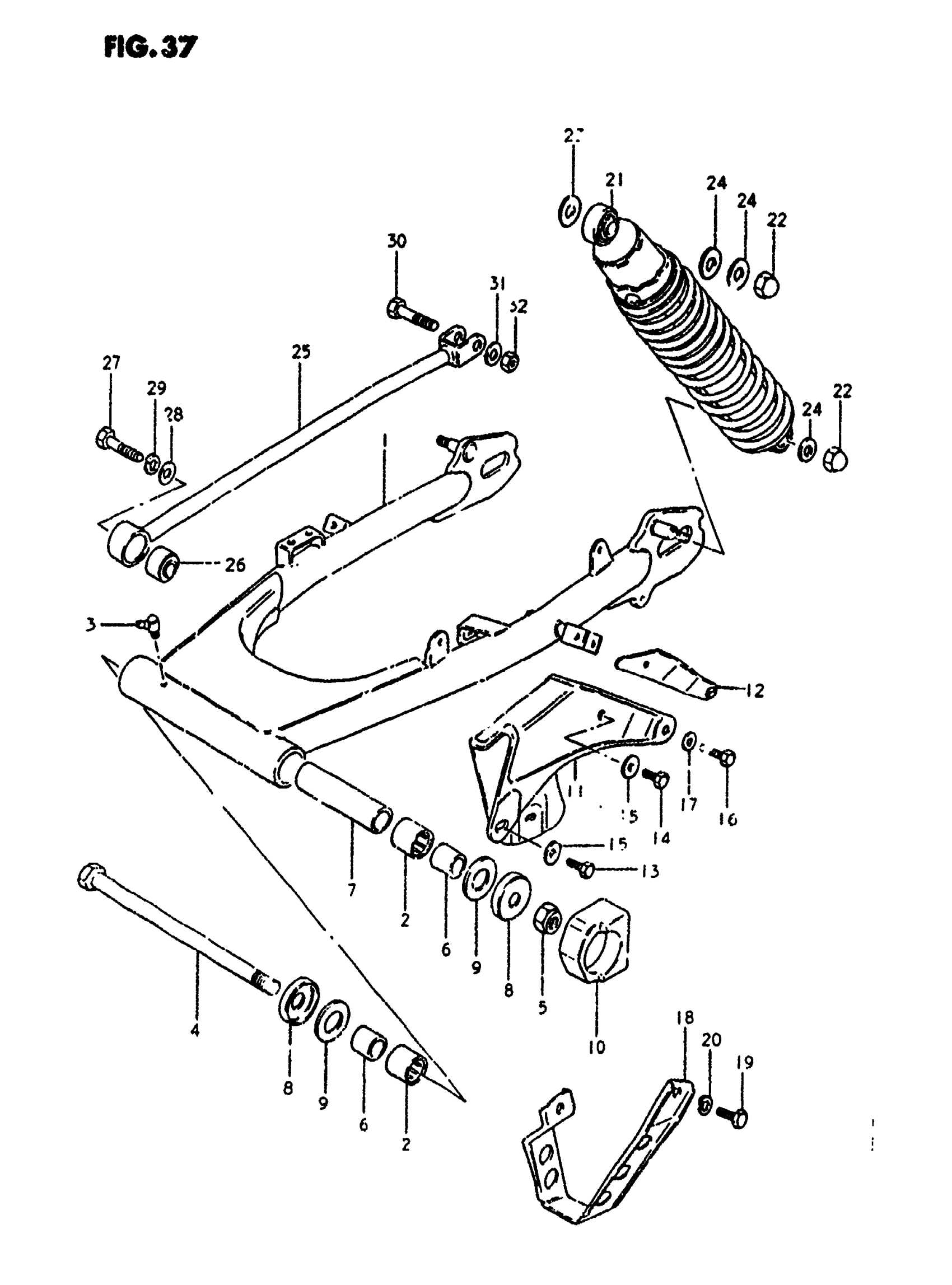

Suzuki SP400 (1980) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM SET | BLACK; Includes Item(s) 2 - 3

61100-32862-019

Unavailable

2

BEARING

09263-22022

$22.69

3

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.45

4

SHAFT, PIVOT (16x233.5)

61211-32410

Unavailable

5

NUT This part replaces 08319-21168.

08319-2116A

$9.00

6

SPACER (16x22x22)

61251-32410

$14.20

7

SPACER, CENTER

09180-16018

Unavailable

8

COVER DUST SEAL This part replaces 61262-32410.

61262-32411

$9.72

9

WASHER

08211-16341

$2.39

10

BUFFER, CHAIN TOUCH DEFENSE

61273-41110

Unavailable

11

CHAIN CASE

61311-32400

Unavailable

12

REINFORCEMENT

61380-30500

Unavailable

13

BOLT This part replaces 01107-06108.

01500-06107

$2.06

14

BOLT (6x8)

09100-06011

$1.67

15

WASHER

09169-06010

$2.60

16

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

GUIDE, CHAIN This part replaces 61341-30500.

61341-30501

Unavailable

19

BOLT This part replaces 01107-08128.

01500-08127

$2.62

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

SHOCK ABSORBER, REAR

62100-32410

Unavailable

22

NUT This part replaces 08313-11108.

08313-10107

$2.50

23

WASHER This part replaces 08322-11128.

08322-01127

$1.84

24

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

25

NO DESCRIPTION AVAILABLE This part replaces 64310-32400.

64310-32400-019

Unavailable

26

BUSHING, FRONT

09319-10008

$7.40

27

BOLT This part replaces 01107-10408.

01500-10407

$3.55

28

WASHER This part replaces 08322-11108.

08322-01107

$2.15

29

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

30

BOLT This part replaces 01107-10408.

01500-10407

$3.55

31

WASHER This part replaces 08322-11108.

08322-01107

$2.15

32

NUT This part replaces 08319-21108.

09159-10027

$3.10
