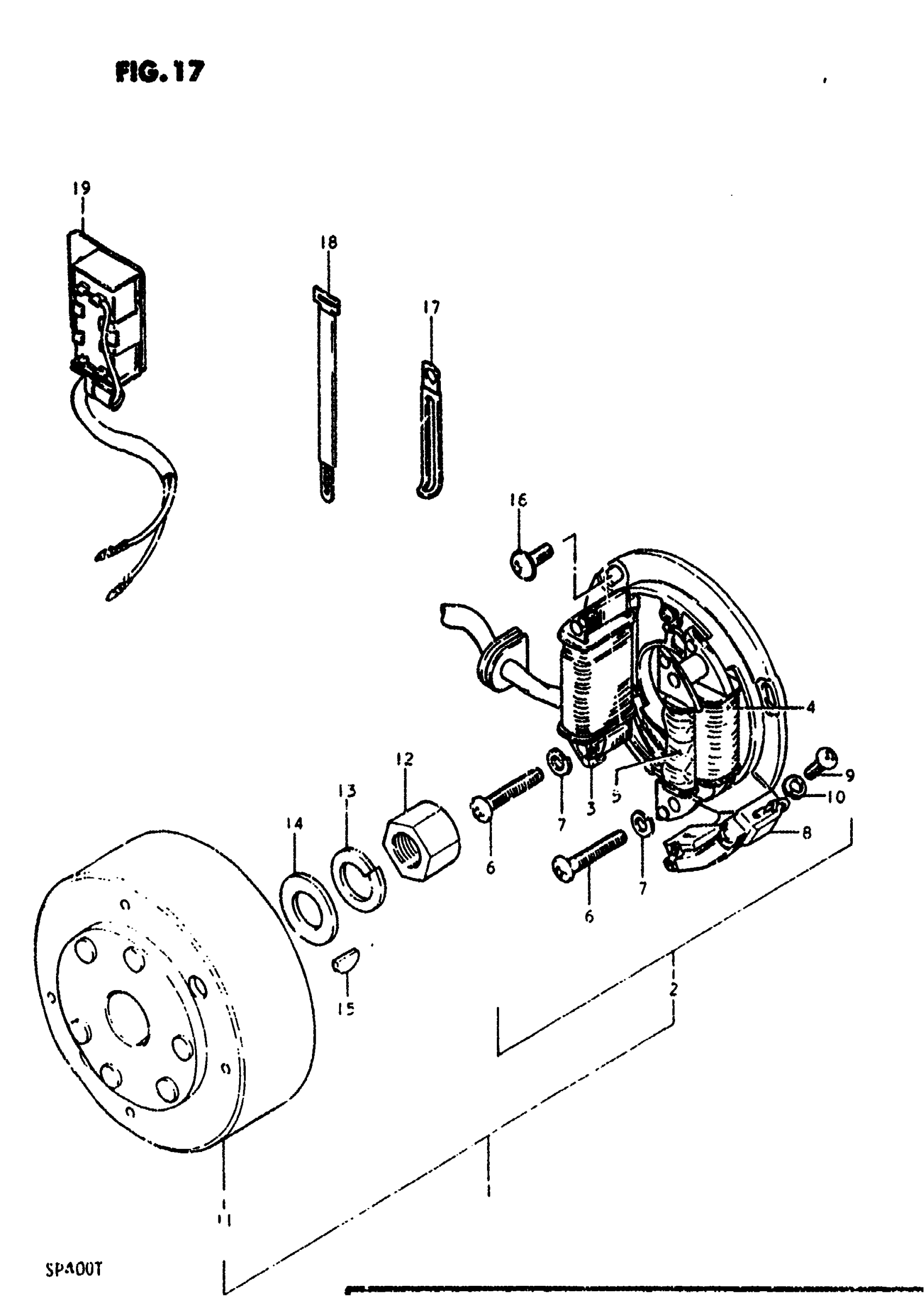

Suzuki SP400 (1980) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | Includes Item(s) 2 - 11

32100-32450

Unavailable

2

STATOR ASSY

32101-32450

Unavailable

3

STATOR ASSY This part replaces 32120-32410.

32101-32450

Unavailable

4

COIL, PRIMARY (A)

32140-32450

Unavailable

5

COIL, PRIMARY (B)

32150-32450

Unavailable

6

SCREW This part replaces 02112-05358.

02112-05357

$1.49

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

8

COIL, PULSER

32151-10200

Unavailable

9

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

10

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

11

FLYWHEEL, MAGNETO

32102-32450

Unavailable

12

NUT

09140-14011

Unavailable

13

WASHER,LOCK This part replaces 08321-21148.

08321-0114A

$2.10

14

WASHER

09160-14015

Unavailable

15

KEY This part replaces 08341-31049.

09420-04008

$3.42

16

SCREW

09139-05011

$2.38

17

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

18

CLAMP This part replaces 09407-11302.

09407-18302

$2.28

19

NO DESCRIPTION AVAILABLE | OPT This part replaces 36510-32411.

36510-32412

Unavailable
