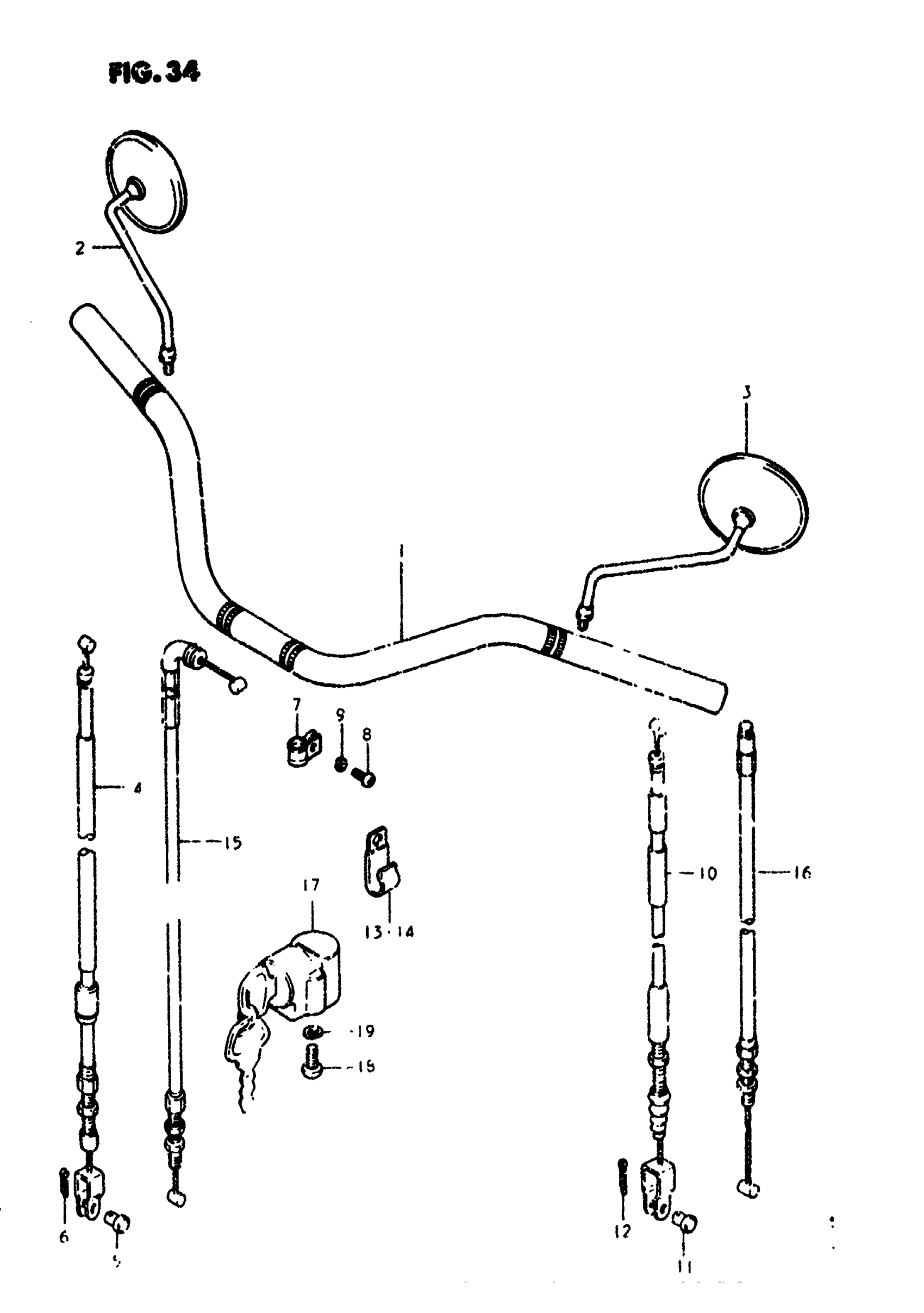

Suzuki SP400 (1980) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-32400

Unavailable

2

MIRROR ASSY,RR This part replaces 56500-47010.

56500-45014

$64.82

3

MIRROR ASSY,RR This part replaces 56600-47010.

56600-45014

$64.82

4

CABLE, FRONT BRAKE

58100-32401

Unavailable

5

PIN

09200-05001

$1.65

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

7

GUIDE, CABLE

58621-40401

Unavailable

8

SCREW This part replaces 02112-06108.

02112-06107

$1.49

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

CABLE, CLUTCH This part replaces 58200-32401.

58200-37330

Unavailable

11

PIN

09200-06011

Unavailable

12

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

13

CLAMP This part replaces 09403-00059.

09404-08420

$3.16

14

CLAMP This part replaces 09403-00069.

09404-06037

Unavailable

15

CABLE,THROTTLE This part replaces 58300-37100.

58300-37101

Unavailable

16

CABLE, DECOMP This part replaces 58900-37100.

58900-37300

Unavailable

17

LOCK ASSY, STEERING This part replaces 51910-25310.

51910-25311

$40.33

18

SCREW This part replaces 02112-05128.

02112-05127

$1.97

19

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84
