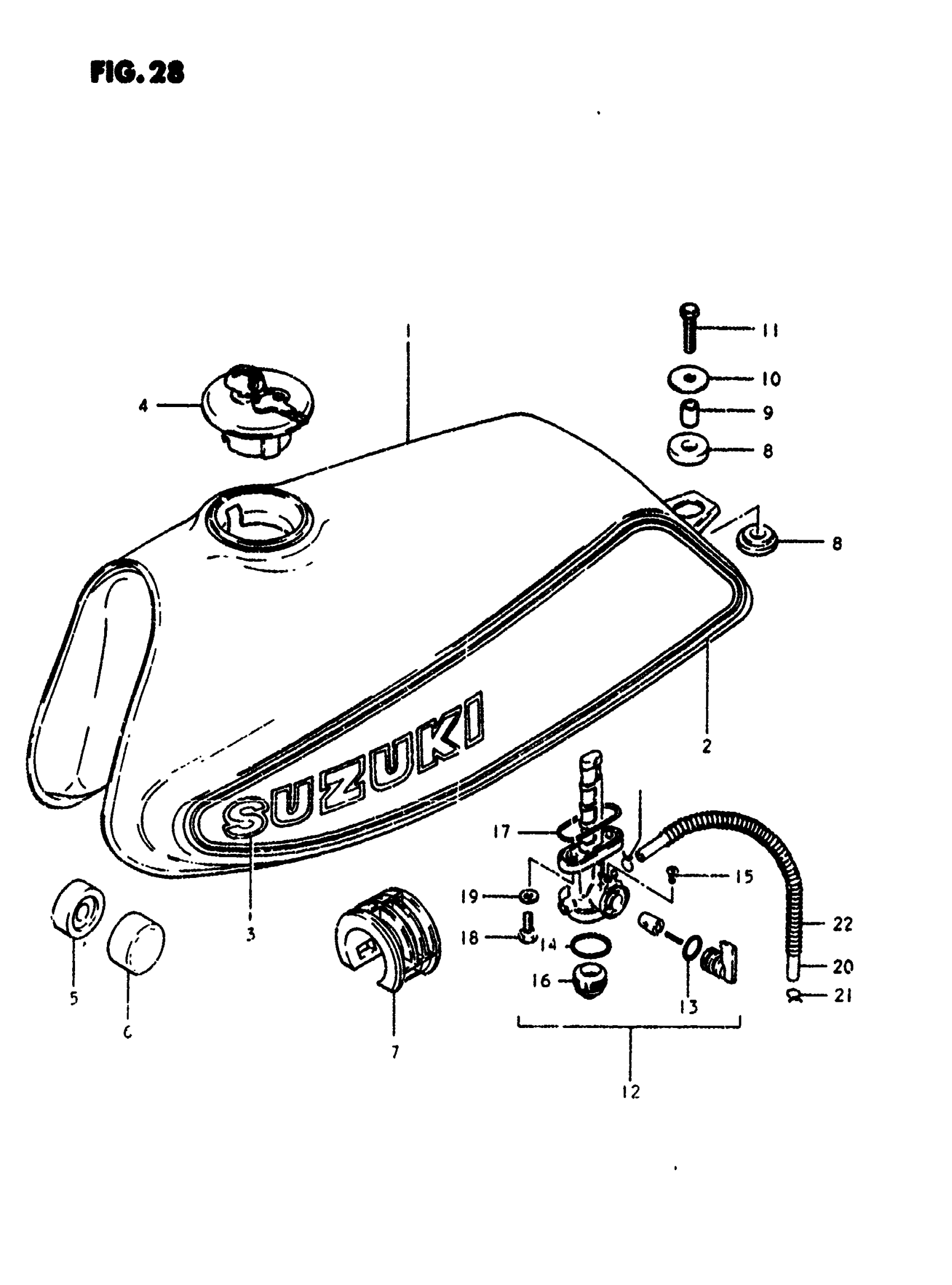

Suzuki SP400 (1980) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 44100-37100-185.

44110-32401-13L

Unavailable

2

TAPE SET

68110-37100-72G

Unavailable

3

EMBLEM

68111-29310-064

Unavailable

4

CAP SET,FUEL TA This part replaces 44200-30702.

44200-30832

$94.67

5

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

6

CUSHION, FRONT

09329-10012

Unavailable

7

CUSHION, CENTER This part replaces 44541-32400.

44541-32410

Unavailable

8

CUSHION, REAR

09320-12009

$2.93

9

SPACER,8.5X12X1 This part replaces 09180-08048.

09180-08302

$2.19

10

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

11

BOLT This part replaces 01107-08258.

01500-08257

$2.50

12

COCK ASSY,FUEL | Includes Item(s) 13 - 17 This part replaces 44300-32471.

44300-22D03

$79.33

13

O RING, LEVER This part replaces 44353-32470.

44353-12C01

$7.44

14

O-RING This part replaces 44346-28070.

44346-28071

$2.40

15

SCREW

44343-32470

Unavailable

16

CUP

44347-28071

$8.98

17

FUEL COCK O RIN This part replaces 44348-28070.

44348-28071

$5.05

18

BOLT This part replaces 09128-06006.

09128-06057

$1.65

19

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.35

20

HOSE(7X10.2X200 This part replaces 09343-07026.

09352-70104-00B

$15.32

21

CLIP

09401-10401

$1.49

22

SPRING

09440-13012

Unavailable
