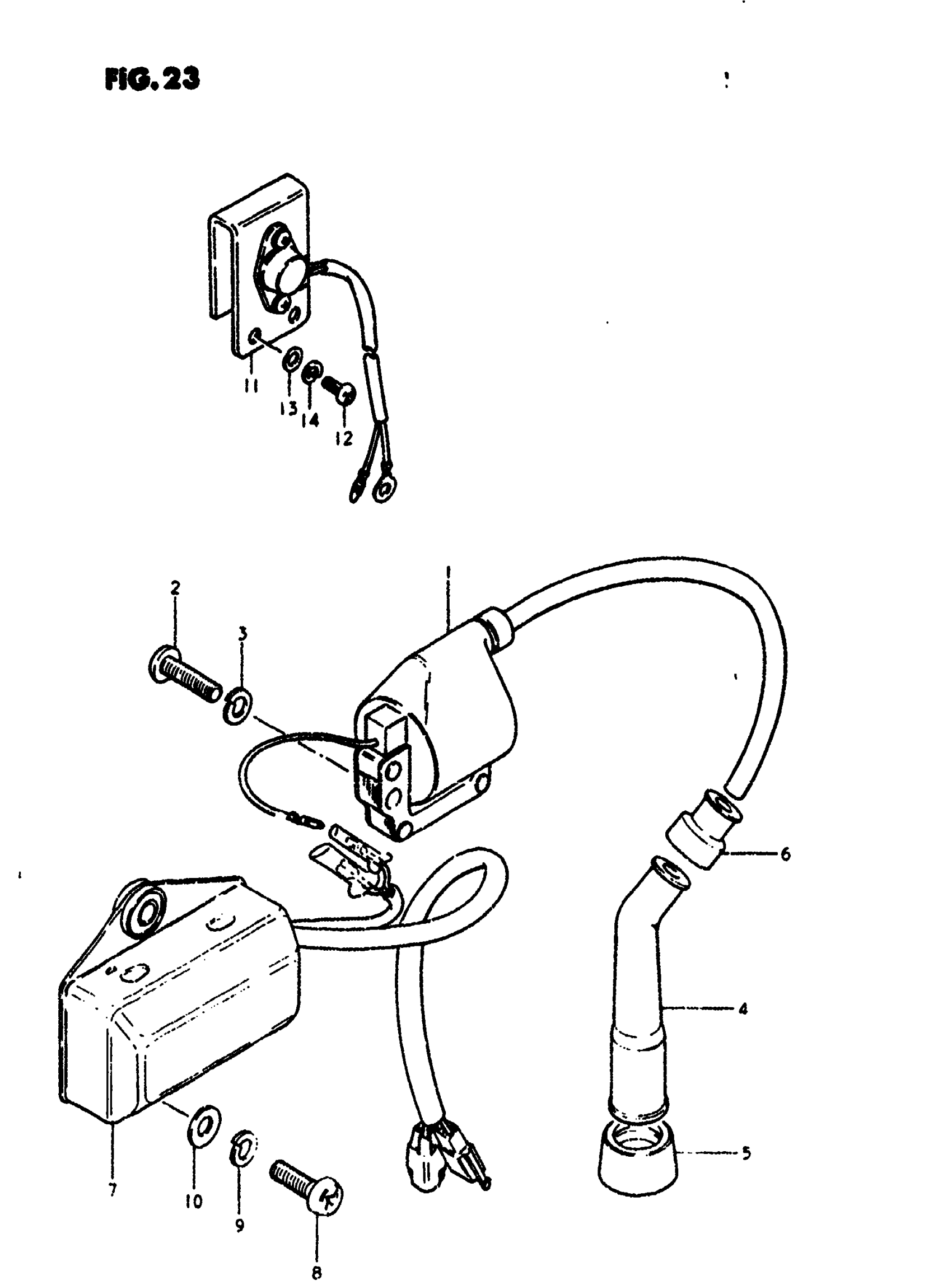

Suzuki SP400 (1980) ELECTRICAL Diagram

#

Description
Price

1

COIL ASSY,IGNIT This part replaces 33410-43010.

33410-43011

Unavailable

2

SCREW This part replaces 02112-06208.

02112-06207

$1.78

3

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

4

CAP, SPARK PLUG

33510-45010

$24.99

5

SEAL, SPARK PLUG This part replaces 33541-32410.

33541-38210

$4.68

6

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

7

CDI UNIT

32900-32450

Unavailable

8

SCREW This part replaces 02112-06203.

02112-0620A

$1.49

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

REGULATOR, VOLTAGE This part replaces 32500-27600.

32500-25600

Unavailable

12

SCREW This part replaces 02112-06168.

02112-06167

$1.49

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
