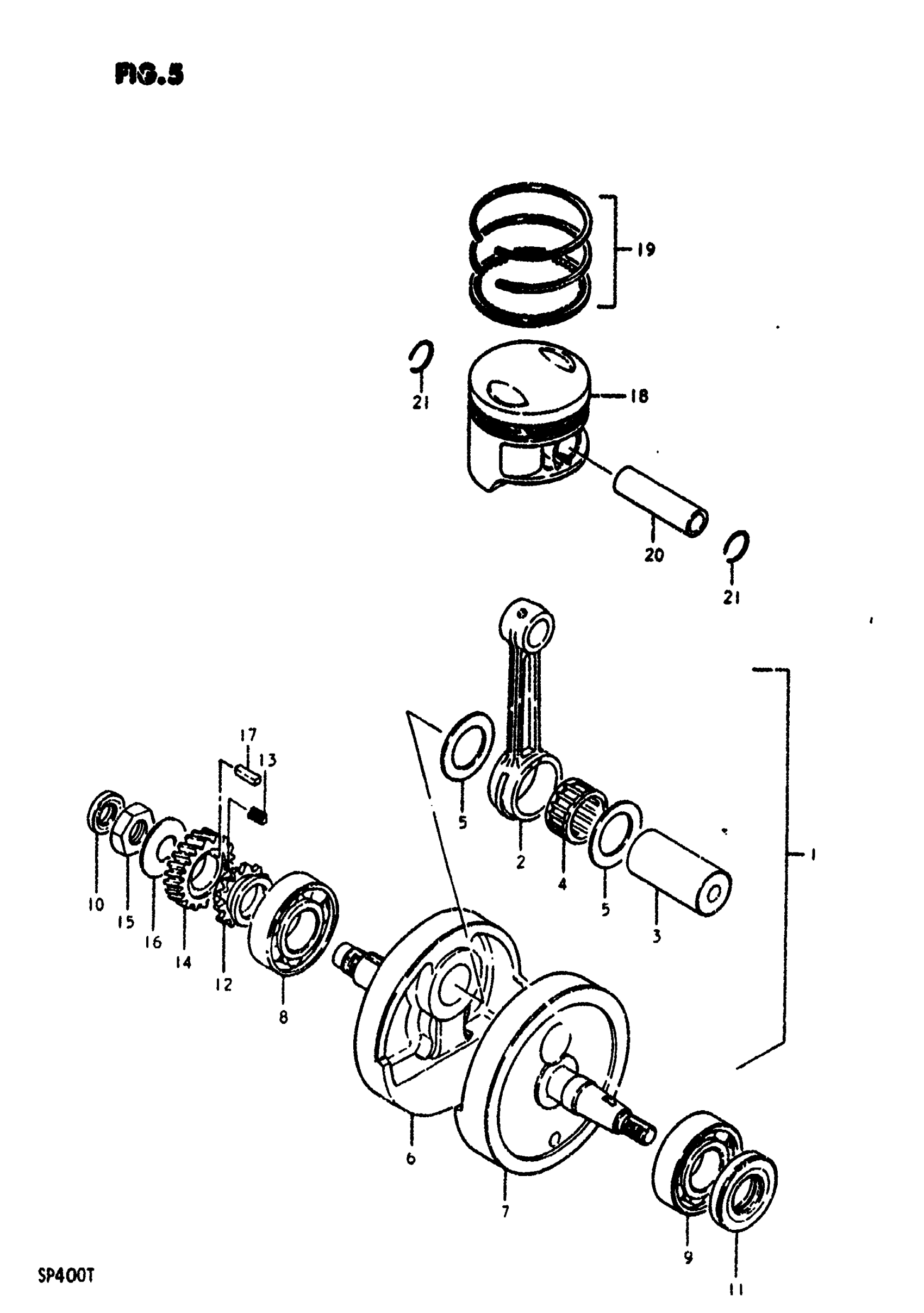

Suzuki SP400 (1980) CRANKSHAFT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 12200-37100.

12200-37101

Unavailable

2

ROD, CONNECTING

12161-37100

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 12211-37100.

12210-37101

Unavailable

4

.BEARING (34X43X22) This part replaces 09263-34002.

09263-34005

$80.87

5

WASHER, LH

09160-34003

$8.62

6

NO DESCRIPTION AVAILABLE This part replaces 12221-37101.

12221-37102

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 12261-37100.

12261-37101

Unavailable

8

BEARING, LH This part replaces 09262-30043.

09262-30076

Unavailable

9

BEARING, LH This part replaces 09262-30043.

09262-30076

Unavailable

10

OIL SEAL (16X30X6)

09282-16002

$9.60

11

OIL SEAL, LH

09283-30024

Unavailable

12

SPROCKET, DRIVE (NT:17)

12731-32400

Unavailable

13

KEY

12749-32400

Unavailable

14

GEAR, PRIMARY DRIVE (NT:23)

21111-32401

Unavailable

15

NUT This part replaces 09140-20008.

09140-20013

$4.26

16

LOCK WASHER

09164-20003

$3.85

17

KEY

09421-07002

Unavailable

18

PISTON (STD)

12111-37100

Unavailable

18

NO DESCRIPTION AVAILABLE This part replaces 12111-37100-050.

12103-37810-050

Unavailable

18

NO DESCRIPTION AVAILABLE This part replaces 12111-37100-100.

12103-37810-100

Unavailable

19

RING SET, PISTON (STD)

12140-37100

Unavailable

19

RING SET, PISTON (OS:0.5)

12140-37100-050

Unavailable

19

RING SET, PISTON (OS:1.0)

12140-37100-100

Unavailable

20

PIN

12151-32400

Unavailable

21

CIRCLIP This part replaces 09381-20001.

09381-20004

$1.65
