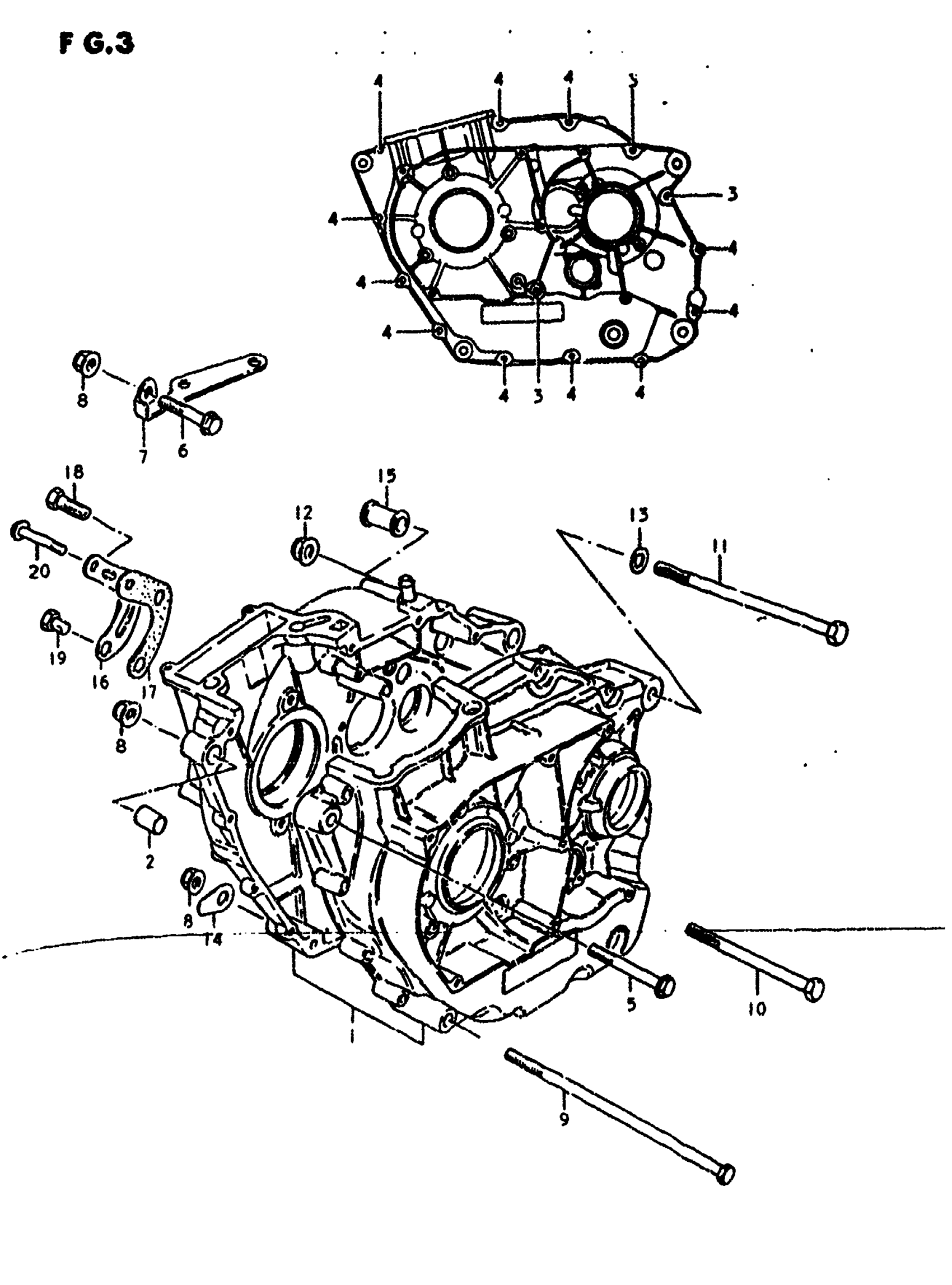

Suzuki SP400 (1980) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 4 This part replaces 11300-32840.

11300-32510

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

4

SCREW This part replaces 02112-06358.

02112-06357

$1.78

5

BOLT This part replaces 01517-08708.

01550-08707

$3.91

6

BOLT, LH | ~E.NO.102981 This part replaces 01517-08508.

01550-08507

$3.55

6

BOLT | E.NO.102982~ This part replaces 01517-08558.

01550-08557

$3.74

7

BRACKET, HEAD COVER | ~E.NO.102981

11131-37990

Unavailable

8

NUT This part replaces 08319-31088.

08319-3108A

$2.32

9

BOLT (10x190)

09100-10121

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 09100-10116.

09116-10042

Unavailable

11

BOLT (10x155)

09100-10120

Unavailable

12

NUT This part replaces 08319-31108.

08319-31107

$2.73

13

WASHER This part replaces 08322-21108.

08322-01107

$2.15

13

WASHER

09160-10005

$1.87

14

SHIM (T:1.0) | (0~1)

09169-10011

Unavailable

14

SHIM (T:0.6) | (0~2)

09169-10012

Unavailable

15

SPACER

11610-32400

Unavailable

16

CAP, OIL GALLERY

11394-32400

Unavailable

17

GASKET

11497-32400

Unavailable

18

UNION This part replaces 09360-10007.

09360-10017

$3.42

19

BOLT (10x12)

09247-10001

$2.20

20

BOLT This part replaces 01517-06558.

01550-06557

$3.30
