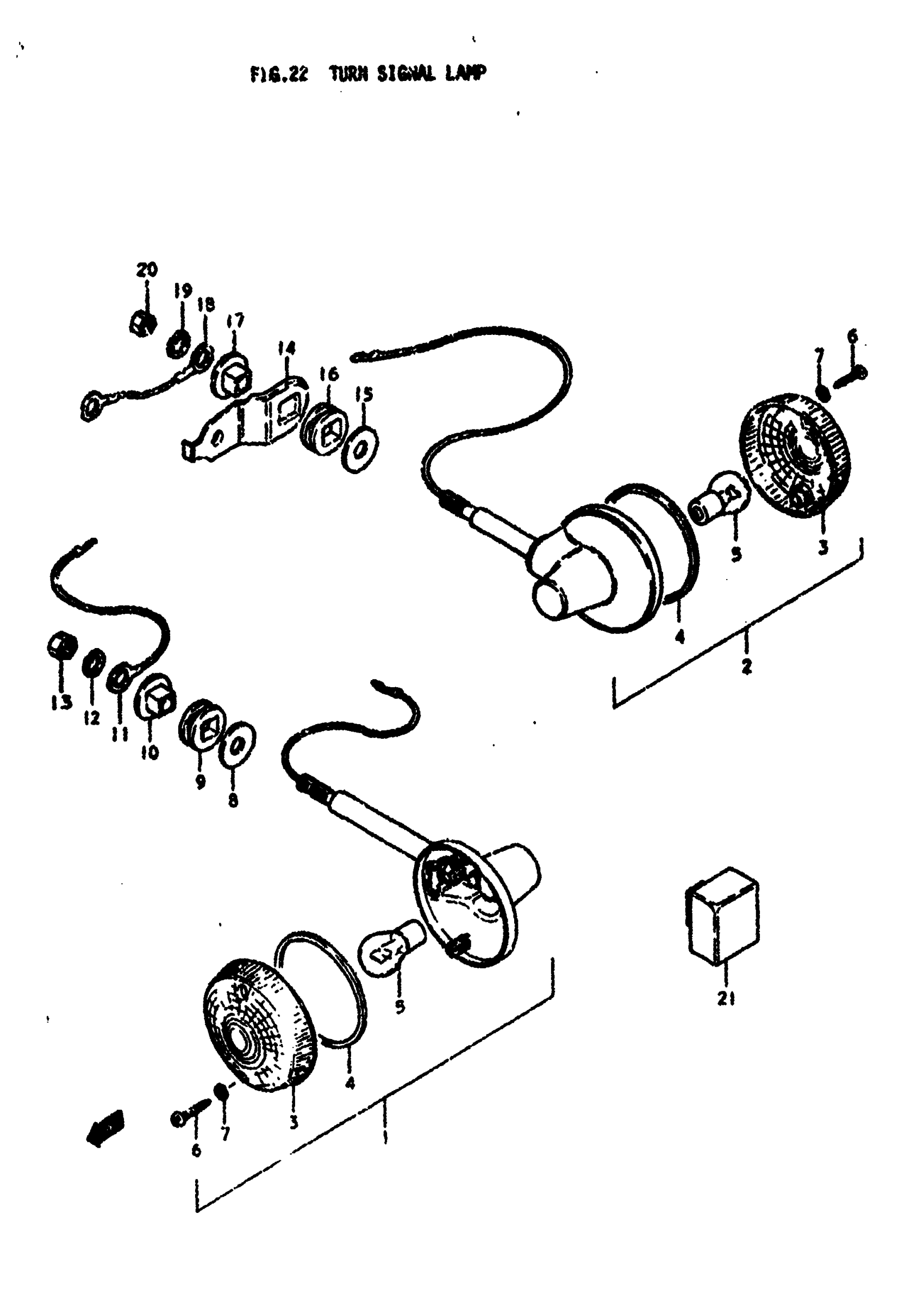

Suzuki SP370 (1979) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TR | C This part replaces 35601-30530.

35601-39370-999

Unavailable

1

LAMP ASSY,FR TR | N This part replaces 35601-30531.

35601-39370-999

Unavailable

2

LAMP RR TURN SI | C This part replaces 35603-32430.

35603-32411-999

Unavailable

2

LAMP RR TURN SI | N; Includes Item(s) 3 - 7 This part replaces 35603-32431.

35603-32411-999

Unavailable

3

LENS

35612-28620

$8.98

4

GASKET

35613-28620

$4.55

5

BULB | 6V, 21CP

09471-06011

Unavailable

6

SCREW This part replaces 35623-47610.

03211-04207

$1.49

7

GASKET

35627-43010

$2.28

8

WASHER, UPPER, OUTER | 10.5x30x2.3 This part replaces 09160-10006.

09160-10501

$2.33

9

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

10

SPACER This part replaces 35695-32400.

35695-32401

$4.52

11

LEAD WIRE, FRONT

36660-33000

$4.52

12

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

13

NUT This part replaces 08310-12108.

08310-00107

$2.19

14

BRACKET, REAR This part replaces 41580-32400.

41580-32401

Unavailable

15

WASHER, UPPER, OUTER | 10.5x30x2.3 This part replaces 09160-10006.

09160-10501

$2.33

16

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

17

SPACER This part replaces 35695-32400.

35695-32401

$4.52

18

LEAD WIRE, REAR EARTH REAR

36862-44000

$5.50

19

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

20

NUT This part replaces 08310-12108.

08310-00107

$2.19

21

RELAY ASSY,TRN This part replaces 38610-48600.

38610-05X50

Unavailable
